Room thermostat TH-24-RWW with WiFi+RS485 for 4 pipe fancoil

  • Model:
    010.003.156
  • Copy
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7
  • photo 8

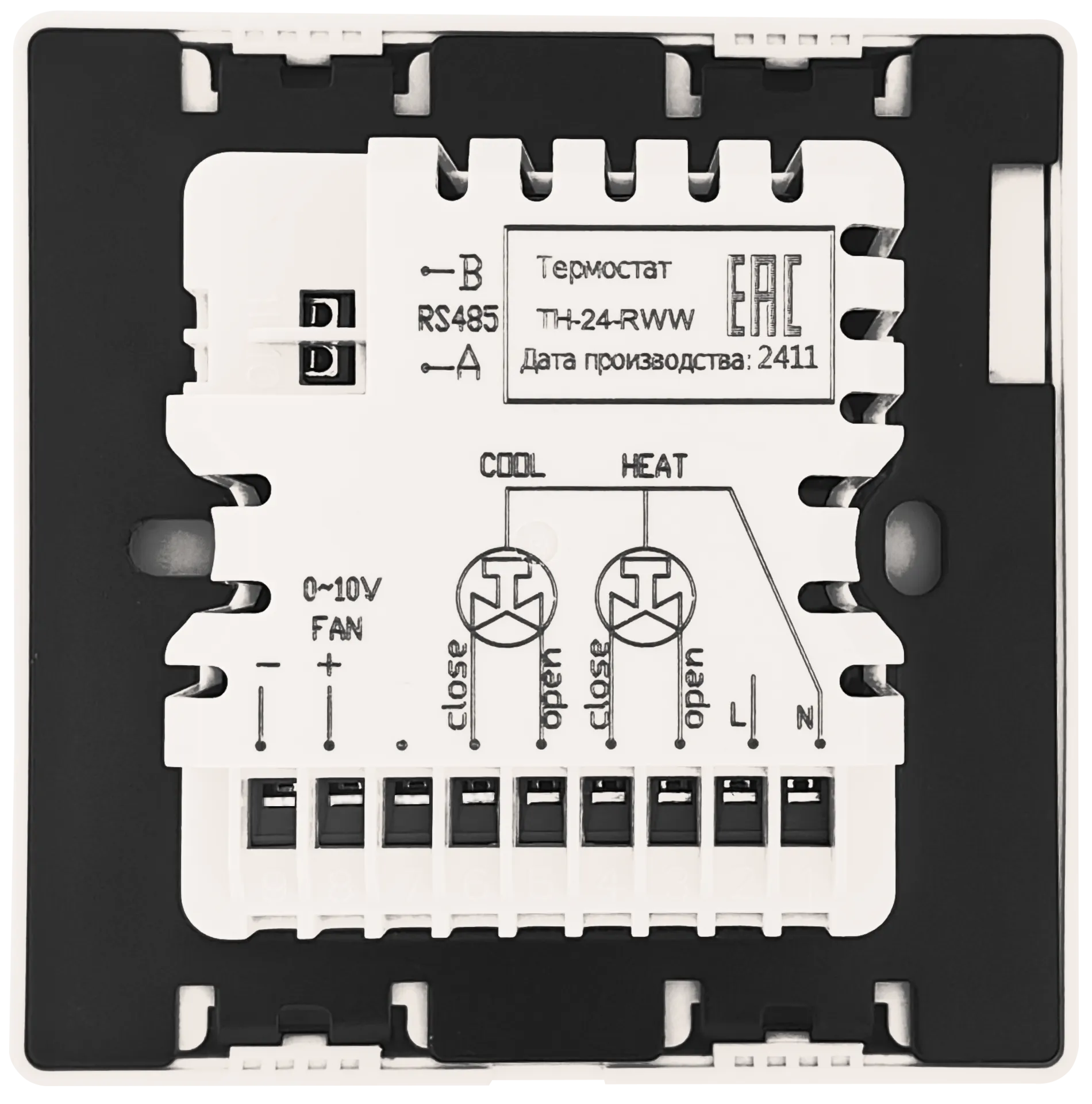

Room thermostat TH-24-RWW
TH-24-RWW touchscreen programmable room thermostat with WiFi+RS485 is designed to on/off control the fans and valves in air conditioners, to achieve the purpose of comfort and energy saving.
For 4 pipe fancoil.
Fan voltage control 0-10V.
Supplied with mounting box.
$67.41
Available: 66 pcs
 pcs

Thermostat characteristics

Product nameTH-24-RWW
Product typeRoom thermostat
Specific application4-pipe fancoil unit
Supply voltage110-240VAC
Fan speed regulationVoltage control 0-10V
Remote controlWiFi+RS485 (Modbus)
Colourwhite
Max valve relay resistance3A
SensorNTC3950, 10K; Accuracy: ±0.5℃
Temperature setting5…35℃
Displayed temperature range0…50°C
Ambient temperature0…45℃, 5 ~ 95 % RH (No Condensing)
Storage temperature-5…+55°C
Power consumption< 1W
Programmable5+2 four periods
Clock error< 1%
Shell materialFireproof PC+ABS
Front panelToughened glass
Degree of protectionIP20
Buttonscapacitive touch
Mounting box includedyes
Dimensions86x86x45mm
Net weight0.22kg
