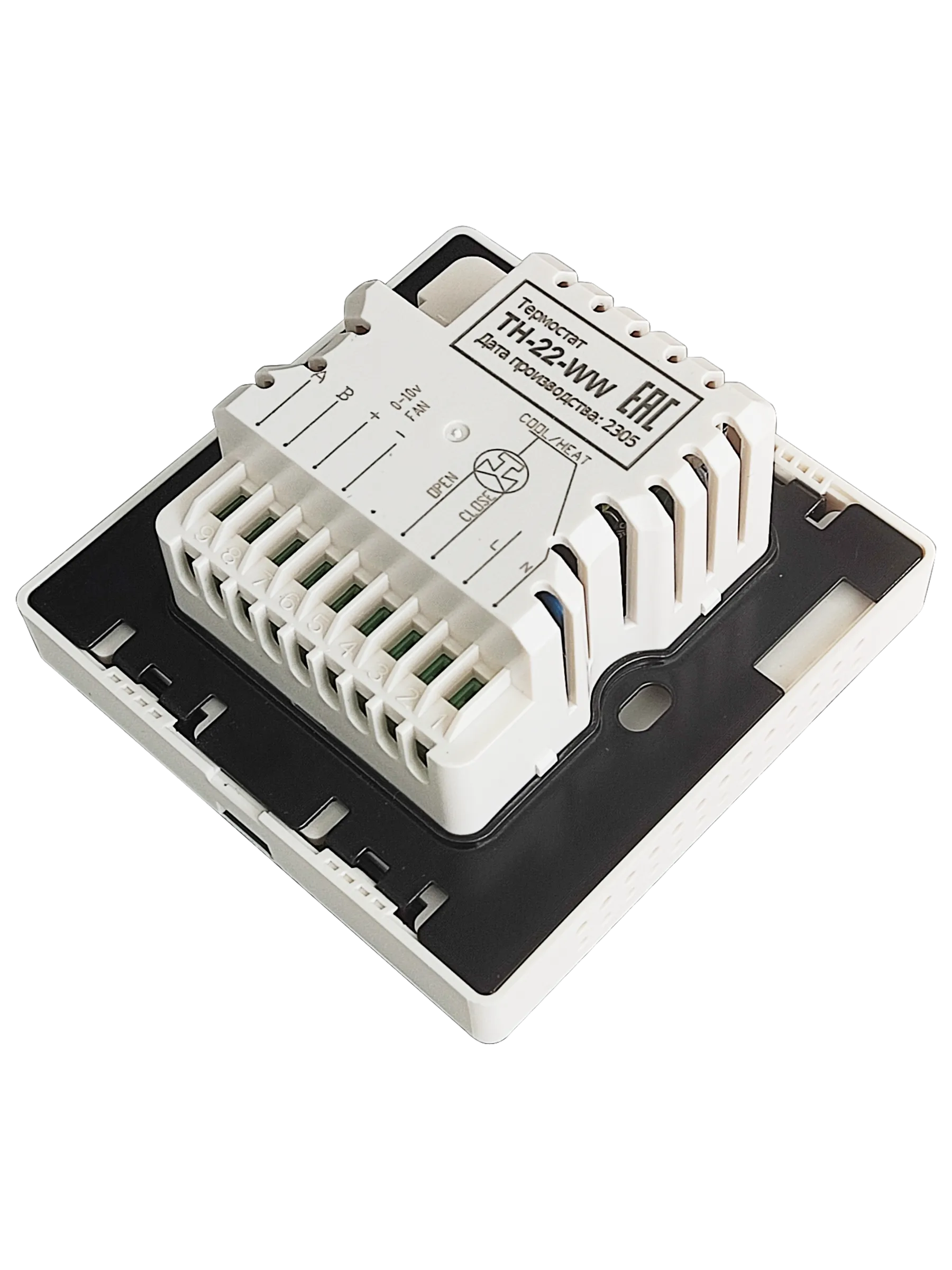

Room thermostat TH-22-WW
TH-22-WW touchscreen programmable room thermostat with WiFi is designed to on/off control the fans and valves in air conditioners, to achieve the purpose of comfort and energy saving.
For 2 pipe fancoil.
Fan speed adjustment by voltage control 0…10V.
Supplied with mounting box.
$60.74
Available: 72 pcs
 pcs

Thermostat characteristics

Product nameTH-22-WW
Product typeRoom thermostat
Specific application2-pipe fancoil unit
Supply voltage110-240VAC
Fan speed regulationvoltage control 0…10V

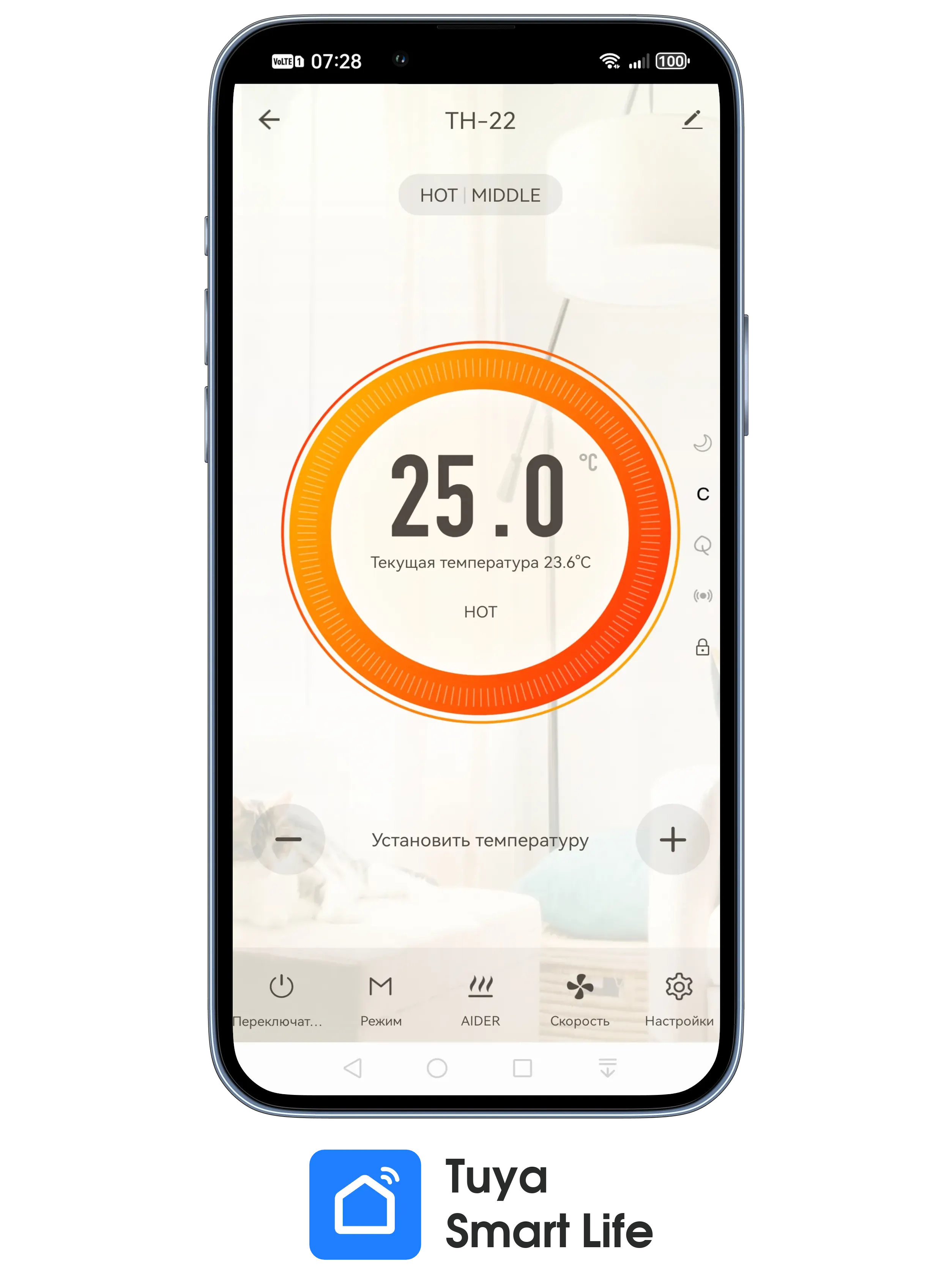

Remote controlWiFi
Colourwhite
Max valve relay resistance3A
SensorNTC3950, 10K; Accuracy: ±0.5℃
Temperature setting5…35℃
Displayed temperature range0…50°C
Ambient temperature0…45℃, 5 ~ 95 % RH (No Condensing)
Storage temperature-5…+55°C
Power consumption< 1W
Programmable5+2 four periods
Clock error< 1%
Shell materialFireproof PC+ABS
Front panelToughened glass
Degree of protectionIP20
Buttonscapacitive touch
Mounting box includedyes
Dimensions86x86x45mm
Net weight0.22kg
