Room thermostat MC6-4FI2 BLACK with WiFi for 4 pipe fancoil

  • Model:
    010.003.161
  • Copy
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7
  • photo 8
−7%
Room thermostat MC6-4FI2 BLACK
MC6-4FI2 BLACK touchscreen programmable room thermostat with WiFi is designed to on/off control the fans and valves in air conditioners, to achieve the purpose of comfort and energy saving.
For 4 pipe fancoil.
Fan voltage control 0-10V.
$106.76 $114.73
Available: 89 pcs
 pcs

Thermostat characteristics

Product nameMC6-4FI2 BLACK
Product typeroom thermostat
Specific application4-pipe fancoil unit
Supply voltage110-240VAC
Fan speed regulationVoltage control 0-10V
Remote controlWiFi
Colourblack
Max valve relay resistance5A
Temperature setting+5…35℃
Displayed temperature range+5…50°C
Ambient temperature0…45℃, 5 ~ 95 % RH (No Condensing)
Storage temperature-5…+55°C
Power consumption1W
Programmable6 time periods (4 main + 2 additional time periods) with division into weekdays and weekends

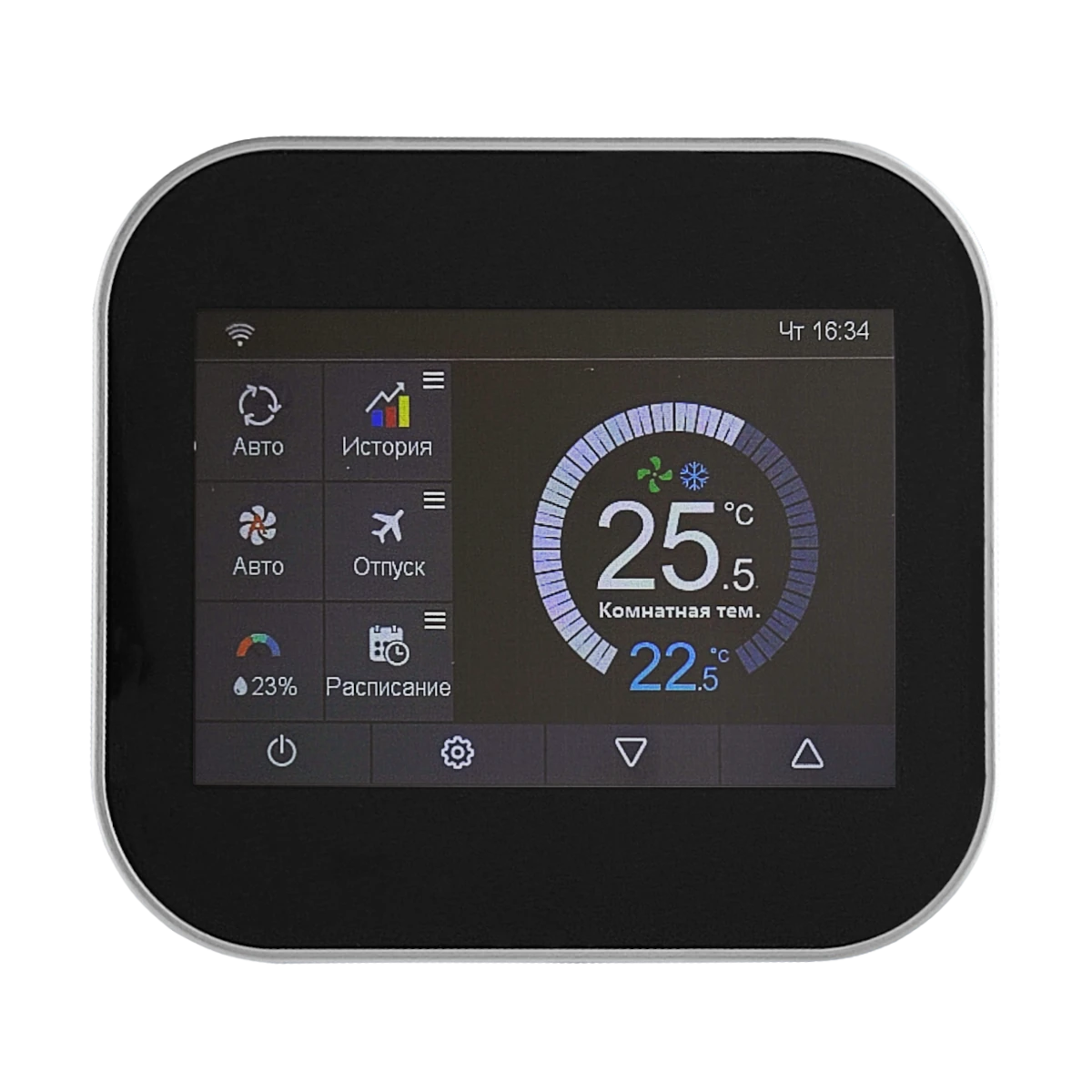

Screencolor touch screen, diagonal 3.5", resolution 320x480 px
Built-in humidity and light sensoryes
ModbusRS485
Dimensions96х86х43.3 mm
Net weight≤ 0.2 kg
