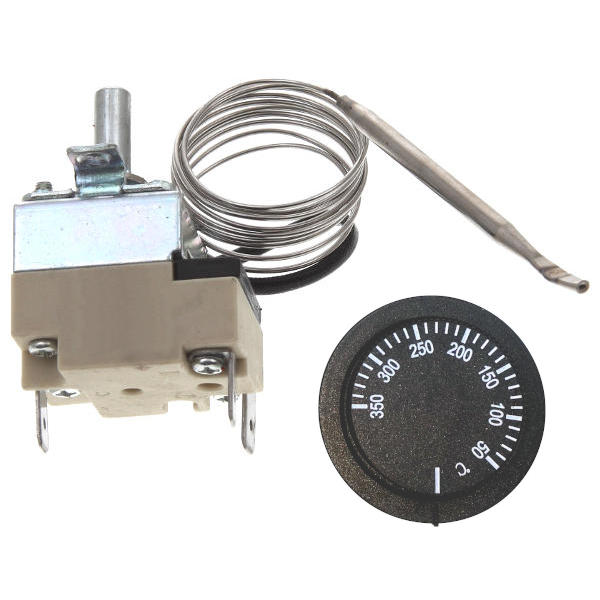

Capillary thermostat WZA-350E 16A/250VAC with knob

  • Model: 010.002.128
Thermostat WZA-350E 16A/250VAC with knob
Adjustable single-pole capillary thermostat WZA-350E is intended for support of given temperature in the controllable device or its parts.
Temperature adjusting range 50...350°C.
Electric rating: C-1 16A/250VAC, C-2 3A/250VAC.
Stainless steel bulb and capillary.
Supplied with black plastic knob.
$3.42
Available: 13 pcs
 pcs

Specifications

Bulb and capillary materialstainless steel
Temperature adjusting range50°C...350°C
Temperature in positionH: 350±10°C
L: 50±10°C;
Differential5...10°C
Electric ratingС-1: 16A/250VAC
C-2: 3A/250VAC
Testing conditionstemperature changing rate ≤1°C/min
Max temperature of the bulb380°C
Max temperature of the case125°C
Life100 000 cycles
Suplied with knobyes
Capillary length2.5m

Dimensions

Dimensions of WZA-350E thermostat
