Model: 010.002.068

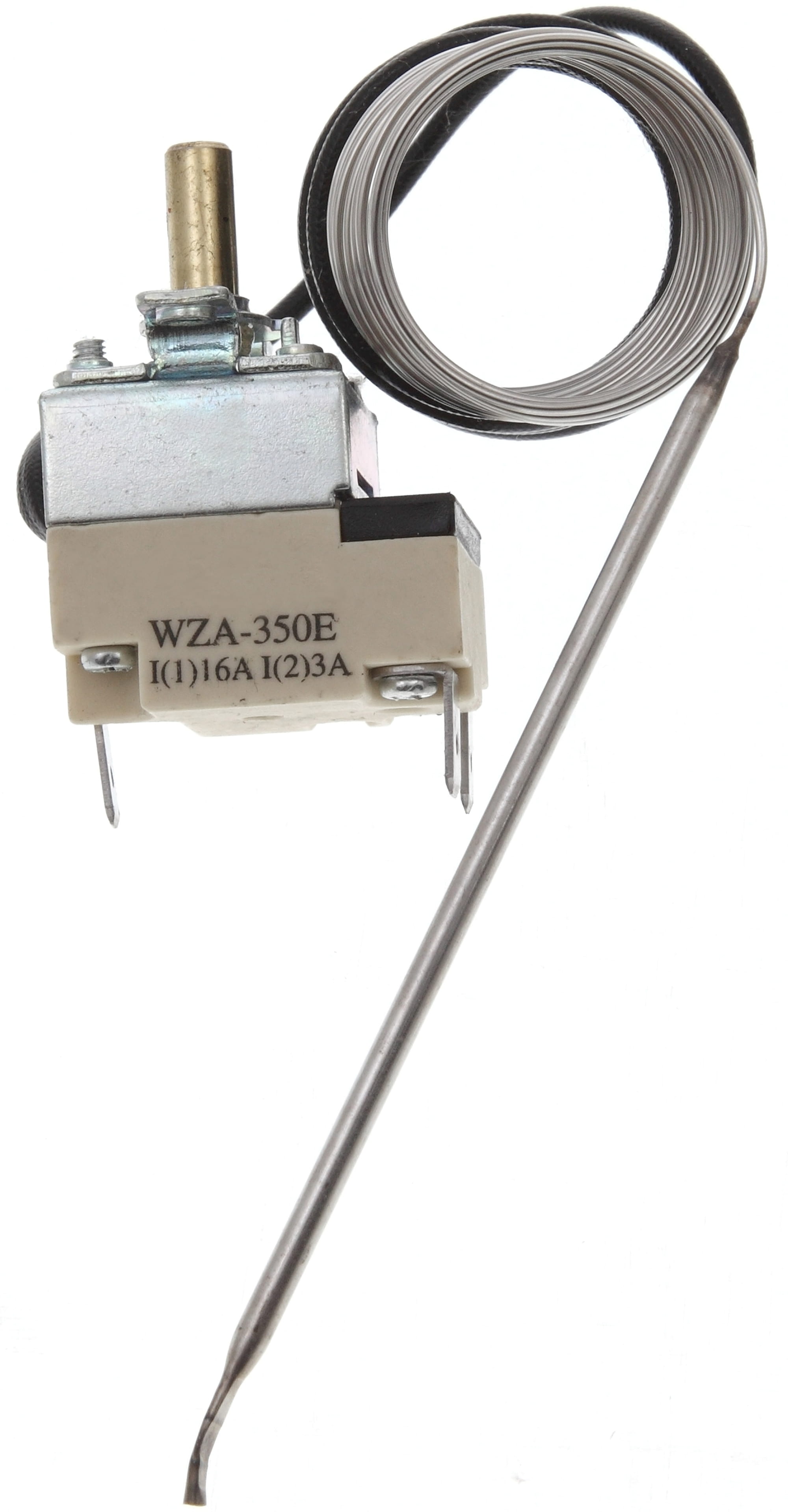

Adjustable single-pole capillary thermostat WZA-350E is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on a bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 50...350°C.
Electric rating: C-1 16A/250VAC, C-2 3A/250VAC.
Stainless steel bulb and capillary.

$3.57

pcs

Specifications

Bulb and capillary material	stainless steel
Temperature adjusting range	50°C...350°C
Temperature in position	H: 350±10°C L: 50±10°C;
Differential	5...10°C
Electric rating	16A/250VAC
Testing conditions	temperature changing rate ≤1°C/min
Max temperature of the bulb	380°C
Max temperature of the case	125°C
Life	100 000 cycles

Dimensions

Auxiliaries and accessories for WZA-350E

knob50-350

Similar or replacement products WZA-350E

WKC-350S2
