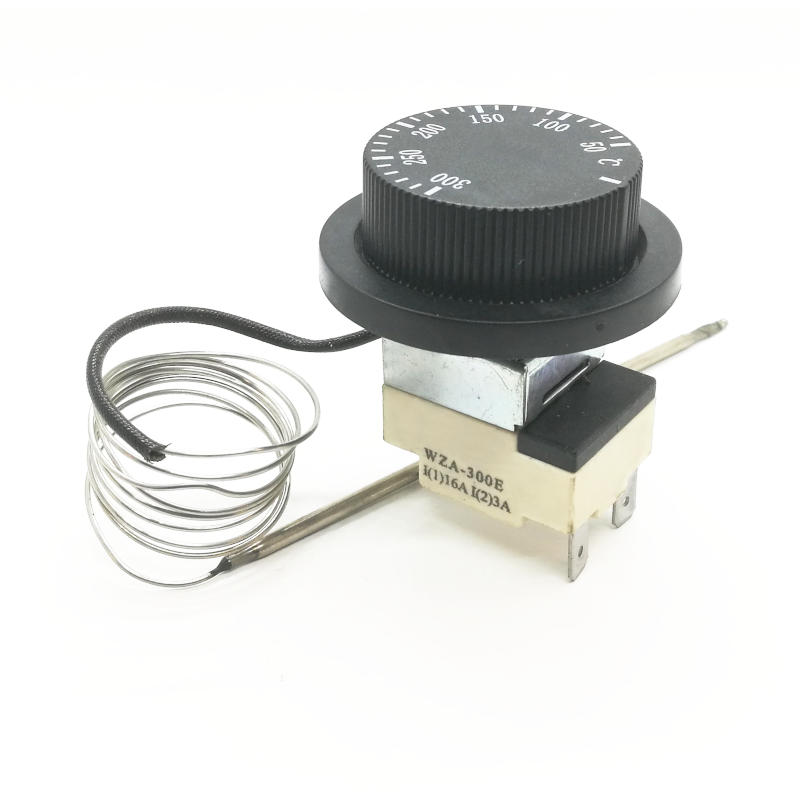

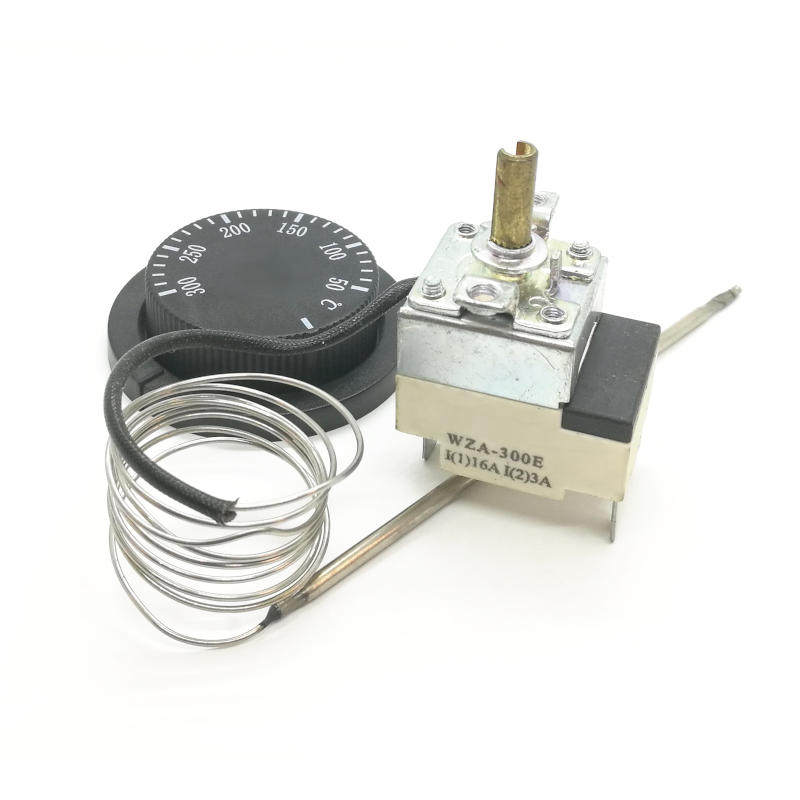

Thermostat WZA-300E 16A/250VAC with knob

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.120

Adjustable single-pole capillary thermostat WZA-300E is intended to maintain the required temperature in a controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on a bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 50...300°C.
Stainless steel bulb and capillary.

$3.13

Available: 29 pcs

pcs

Specifications

Bulb and capillary material	stainless steel
Temperature adjusting range	50°C...300°C
Insulation resistance	>100MΩ
Electric rating	С-1: 16A/250VAC C-2: 3A/250VAC
Testing conditions	temperature changing rate ≤1°C/min
Max temperature of the case	125°C
Max bulb temperature	350°C
Capillary length, mm	950
Bulb length,mm	125±5
Life	100 000 cycles

Thermostat dimensions

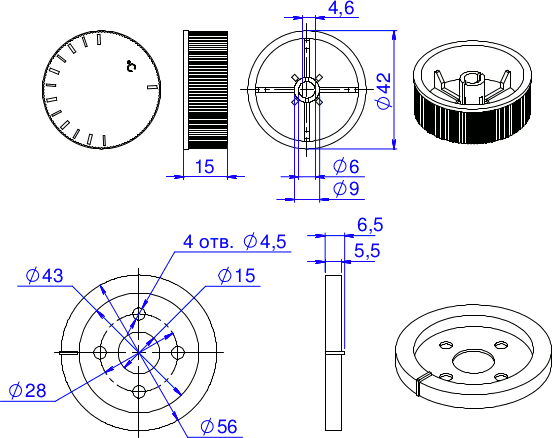

Knob dimensions
