Thermostat WZA-120E 16A/250VAC

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.043

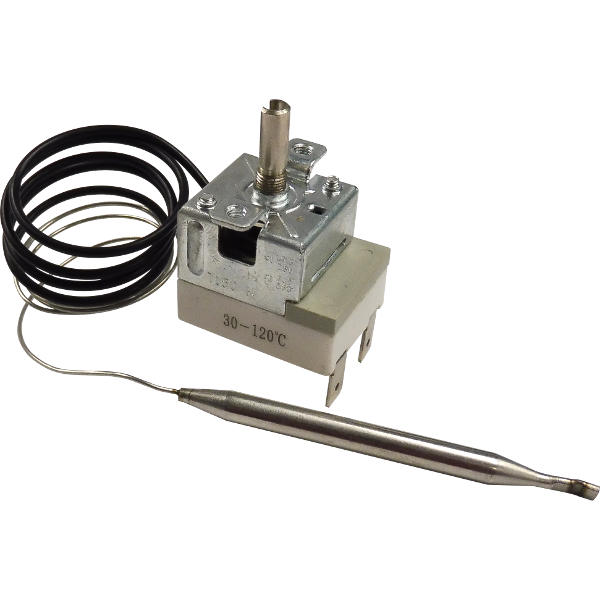

Adjustable single-pole capillary thermostat WZA-120E is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on a bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 30...120°C.
Electric rating: C-1 16A/250VAC, C-2 3A/250VAC.
Stainless steel bulb and capillary.

☎ Price by call

Specifications

Bulb and capillary material	stainless steel
Temperature adjusting range	30°C...120°C
Temperature in position	H: 120±6°C L: 30±5°C;
Differential	5...10°C
Electric rating	С-1: 16(3)A/250VAC C-2: 3(1)A/250VAC
Testing conditions	temperature changing rate ≤1K/min
Max temperature of the bulb	150°C
Max temperature of the case	150°C
Life	100 000 cycles

Dimensions

Auxiliaries and accessories for WZA-120E

D57

knob30-120
