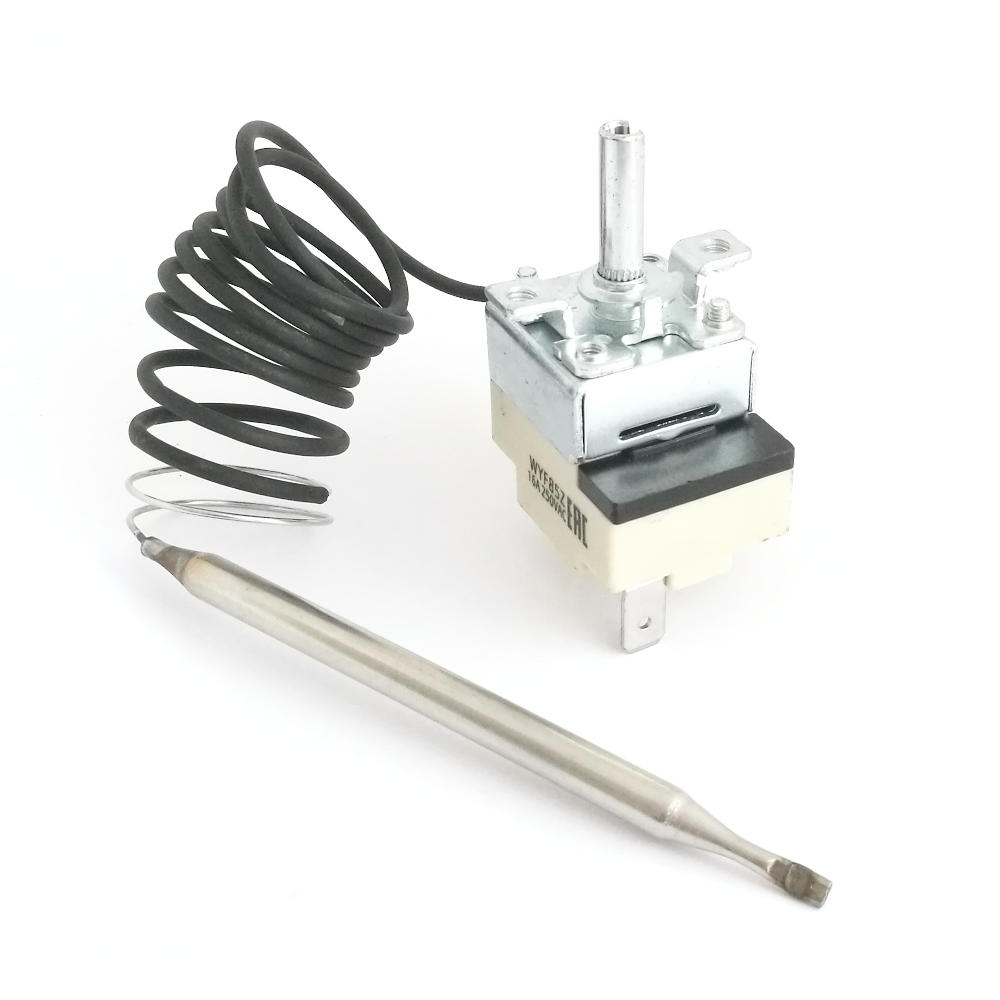

Capillary thermostat WYF85Z1 with temperature range 30°C...+85°C

  • Model: 010.002.125
Thermostat WYF85Z1
Capillary thermostat WYF85Z1 with normally closed contact is designed to maintain the required temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on a bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 30°C...85°C.
Electric rating: C-1 16A/250VAC.
Stainless steel bulb and capillary.
$3.31
 pcs

Specification

Bulb and capillary materialstainless steel
Temperature adjusting range30°C...+85°C
Temperature in H position85±3°C
Temperature in L position30°C
Differential5±3°C
Electric ratingC-1: 16A/250VAC
Temperature changing rate<1°C/min
Max bulb temperature110°C
Max body temperature125°C
Life>100 000 cycles

Dimensions

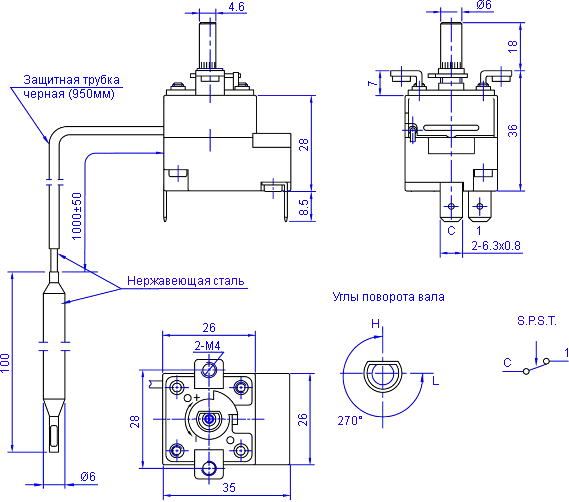

Dimensions of the WYF85Z1 capillary thermostat
