Thermostat WYF85Z

  • Model: 010.002.067
Thermostat WYF85Z

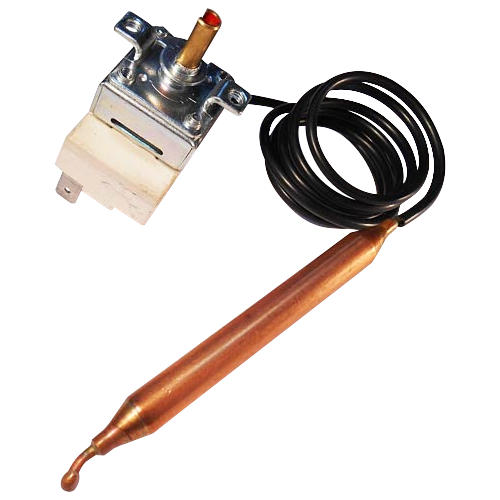

Capillary thermostat WYF85Z with change-over contact is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on a bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 0°C...85°C.
Electric rating: C-1 16(3)A/250VAC, C-2 6(1)A/250VAC.
Copper bulb and capillary.
$3.75
 pcs

Specification

Bulb and capillary materialcopper
Temperature adjusting range0°C...+85°C
Temperature in H position85±5°C
Differential5.5±3.5°C
Electric ratingC-1: 16(3)A/250VAC
C-2: 6(1)A/250VAC
Temperature changing rate<1°C/min
Max bulb temperature115°C
Max housing temperature90°C
Life>40 000 cycles

Dimensions

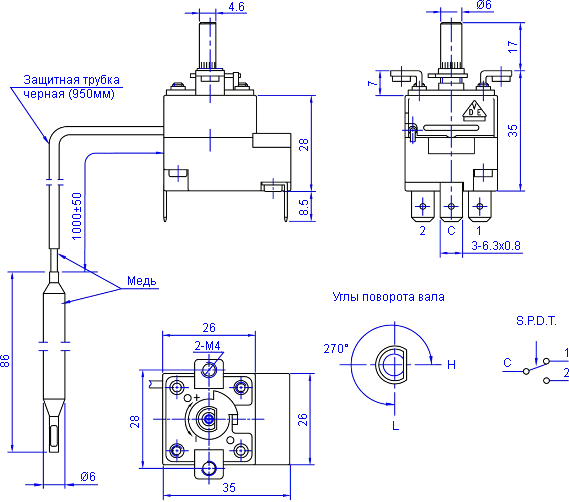

Dimensions of the WYF85Z capillary thermostat
