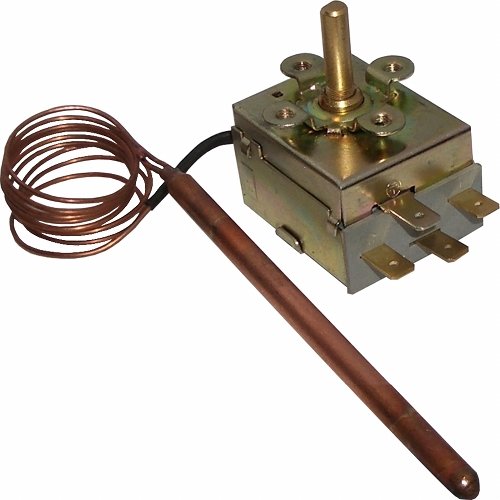

Capillary thermostat WY86-653-12I

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.008

Adjustable single-pole capillary regulator (thermostat) WY86-653-12I is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liguid acts on a bellows assembly within the plastic housing to open electrical contacts.
Area of application - conditioners, heaters, thermal veils.

☎ Price by call

Specifications

Adjsutable range: 26...86°C
H point: 86±3°C; L point 26±5°C; Differential: ≤5°C
Rated voltage: 250V Ac
Rated current: C-1: 16A; C-2: 4A
Testing condition: (liquid) temperature changing speed rate ≤1K/min
Maximum head temperature: OFF+30°C
Maximum body temperature: 120°C

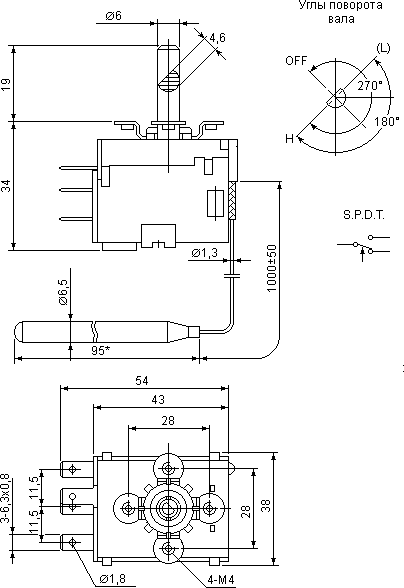

Dimensions

Auxiliaries and accessories for WY86-653-12I

knob30-85

D57
