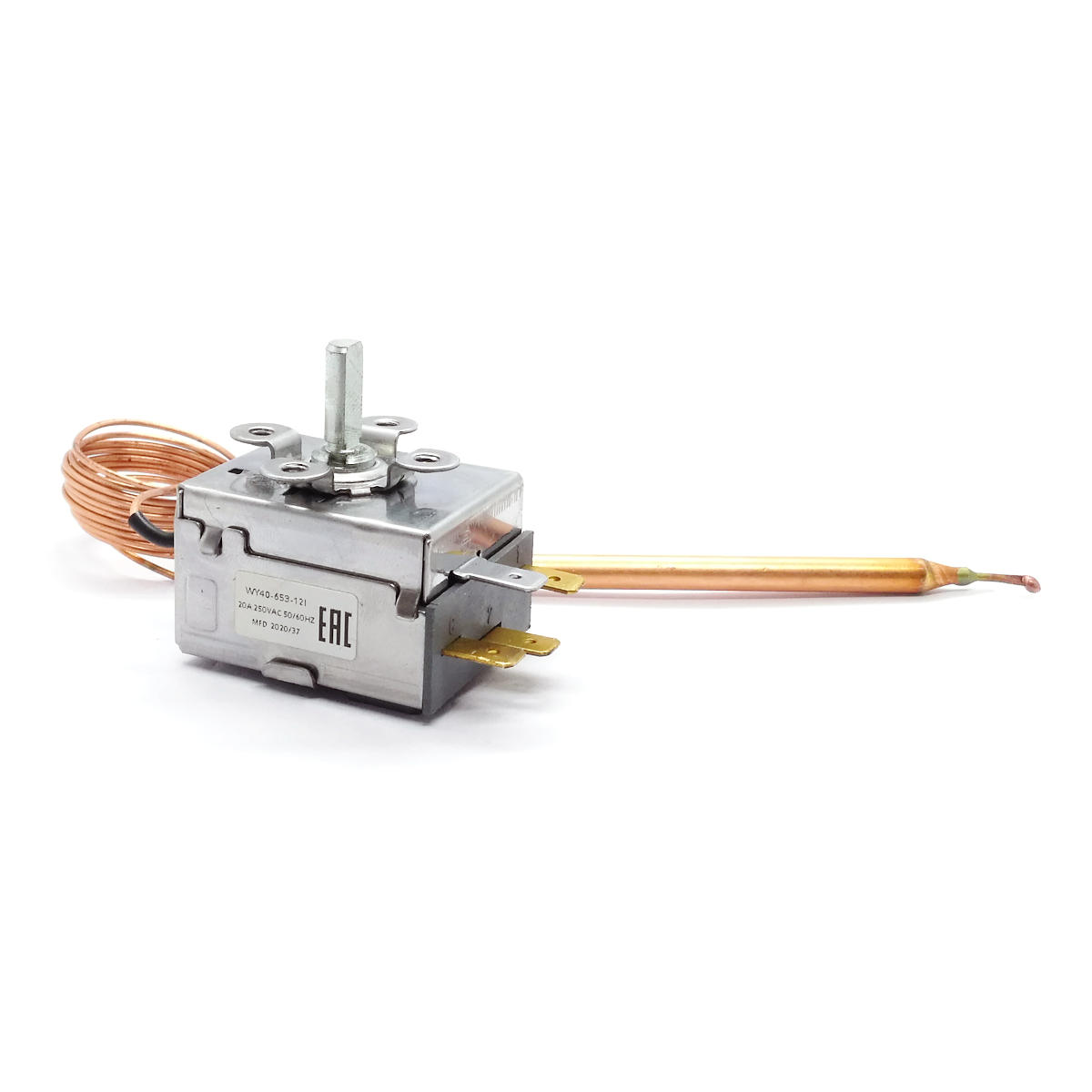

Capillary thermostat WY40-653-12I

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.012

Adjustable single-pole capillary regulator (thermostat) WY40-653-12I is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liguid acts on a bellows assembly within the plastic housing to open electrical contacts.
Area of application - conditioners, heaters, thermal veils.

$4.39

pcs

Specifications

Adjsutable range	0...+40°C
Temperature	H point: 40±4°C; L point 0±4°C
Differential	≤6°C
Rated voltage	250V Ac
Rated current	C-1: 16A; C-2: 4A
Testing condition	(liquid) temperature changing speed rate ≤1K/min
Maximum head temperature	OFF+30°C
Maximum body temperature	120°C

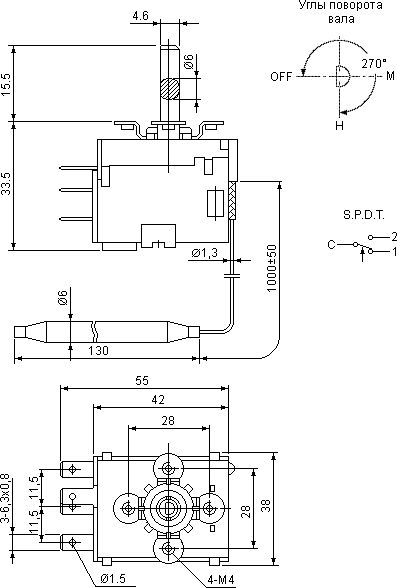

Dimensions
