Model: 010.002.009

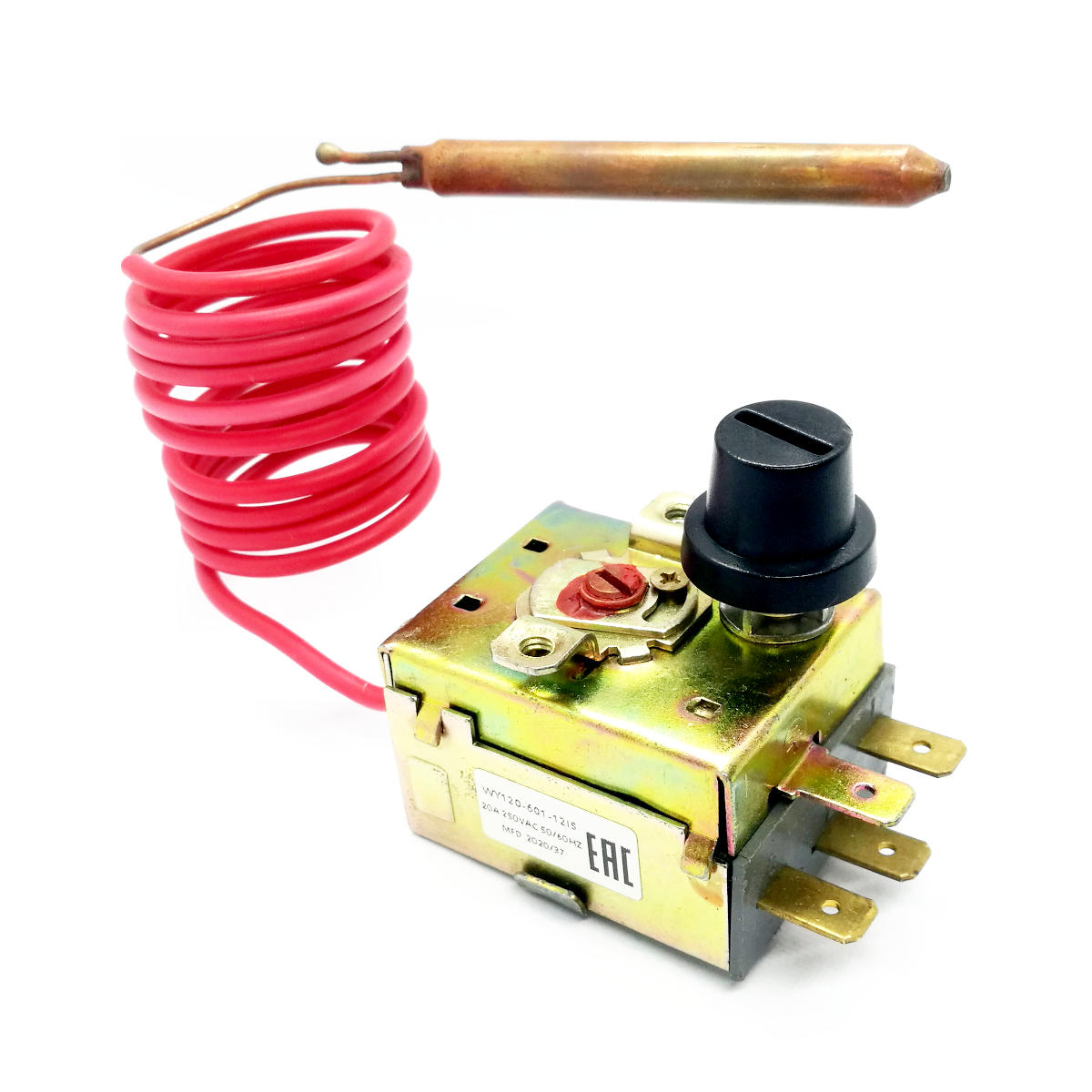

Capillary thermostat WY120-601-12IS is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liguid acts on a bellows assembly within the plastic housing to open electrical contacts.
Area of application - conditioners, heaters, thermal veils.

☎ Price by call

Specifications

H point: 120±3°C;
Rated voltage: 250V AC
Rated current: C-1: 16A (380V AC - 10A); C-2: 2,5A
Testing condition: (liquid) temperature changing speed rate ≤1K/min
Maximum head temperature: OFF+30°C
Maximum body temperature: 120°C

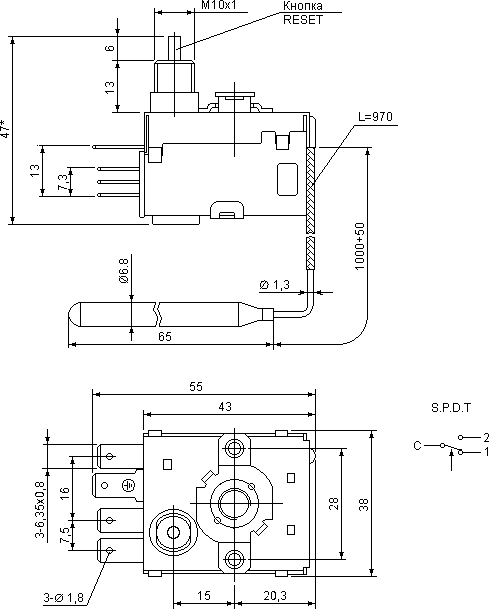

Dimensions
