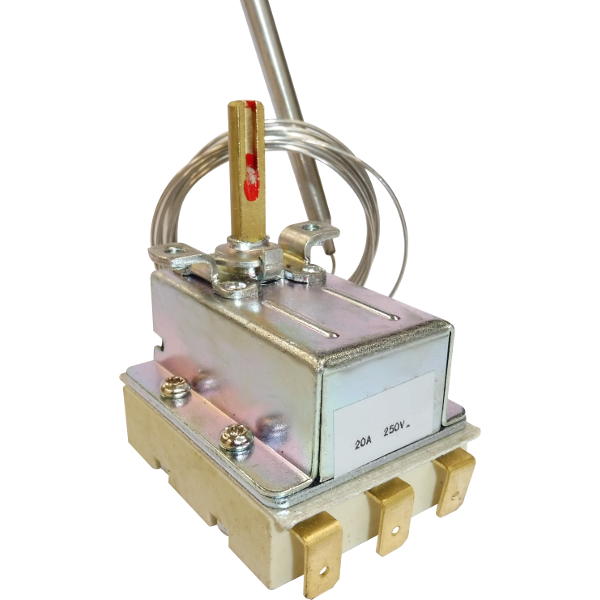

Capillary thermostat WY110-653-28V with adjustable range 30°C...110°C

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.046

Adjustable triple-pole capillary regulator (thermostat) WY110-653-28V is designed to maintain required temperature in a certain device or its parts. Temperature rise causes the expansion of liquid within the bulb and capillary. The liquid acts on a diaphragm within the plastic housing to open electrical contacts that are normally closed in WY110-653-28V.
Temperature adjusting range 30°C...110°C.
Breaking capacity 20A/250VAC.
Capillary and bulb are made of stainless steel. Capillary length 1480mm.

$8.06

pcs

Specification

Bulb and capillary material	stainless steel
Temperature adjusting range	30...110°C
Temperature in position	H: 110±10°C L: 31±5°C
Differential	10±5°C
Voltage	250VAC
Breaking capacity	20A
Temperature change speed	<1°C/min
Max bulb temperature	180°C
Max switch body temperature	125°C
Life	>100 000 cycles

Dimensions and scheme

Auxiliaries and accessories for WY110-653-28V

D57

Similar or replacement products WY110-653-28V

WKG-110S3-01

WY110-653-28-TH

WKG-110S3
