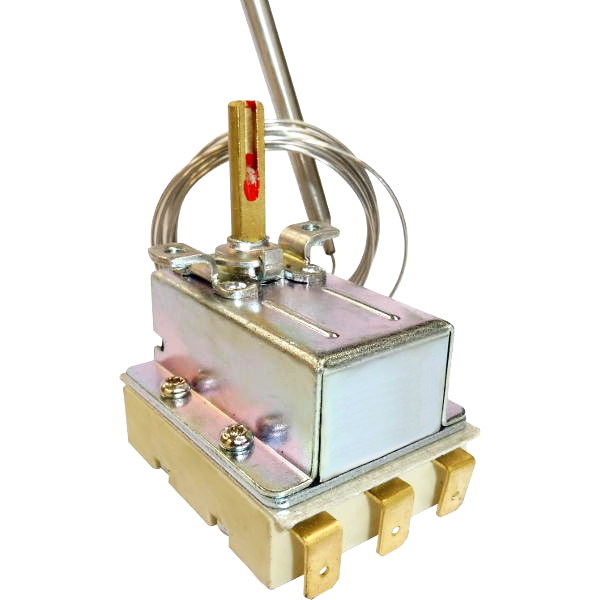

Capillary thermostat WKG-110S3 20A/250VAC

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.096

Adjustable three-pole capillary thermostat WKG-110S3 is designed to maintain required temperature in a certain device or its parts. Temperature rise causes the expansion of liquid within the bulb and capillary. The liquid acts on a diaphragm within the plastic housing to open electrical contacts that are normally closed.
Temperature adjusting range 31°C...110°C.
Breaking capacity 20A/250VAC.
Capillary and bulb are made of stainless steel. Capillary length 1480mm.

$10.10

pcs

Specifications

Bulb and capillary material	stainless steel
Temperature adjusting range	31°C...110°C
Temperature in position	H: 110±10°C L: 31°C;
Differential	10±5°C
Electric rating	1-T1: 20A/250VAC 2-T2: 20A/250VAC 3-T3: 20A/250VAC
Testing conditions	temperature changing rate ≤1K/min
Max temperature of the bulb	150°C
Max temperature of the case	125°C
Life	100 000 cycles

Dimensions
