Capillary thermostat WKB-40S2 1CO 16A/250V with knob

  • Model:
    010.002.001
  • Copy
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7
  • photo 8
Thermostat WKB-40S2 with knob
Adjustable single-pole capillary thermostat WKB-40S2 is intended to maintain the required temperature in a device or its parts.
Temperature range 0°C…+40°C.
1 change-over contact. Rating 16A/250VAC.
Capillary and bulb material - stainless steel. Capillary length 1000mm.
Supplied together with black plastic knob.
$4.39
 pcs

Specification

Temperature adjusting range0…+40°C
H point40 ± 3°C
Hysteresis5 ± 3°C
Material of the capillary and bulbstainless steel
Electric rating16A/250VAC
Dielectric strength2000VAC / 1 min / 0.5 mA
Max bulb temperature70°C
Max housing temperature125°C
Life> 100 000 cycles
Knobyes
Knob materialblack plastic
Knob dimensionsØ55x17 mm

Thermostat dimensions

Capillary thermostat WKB-40S2 dimensions

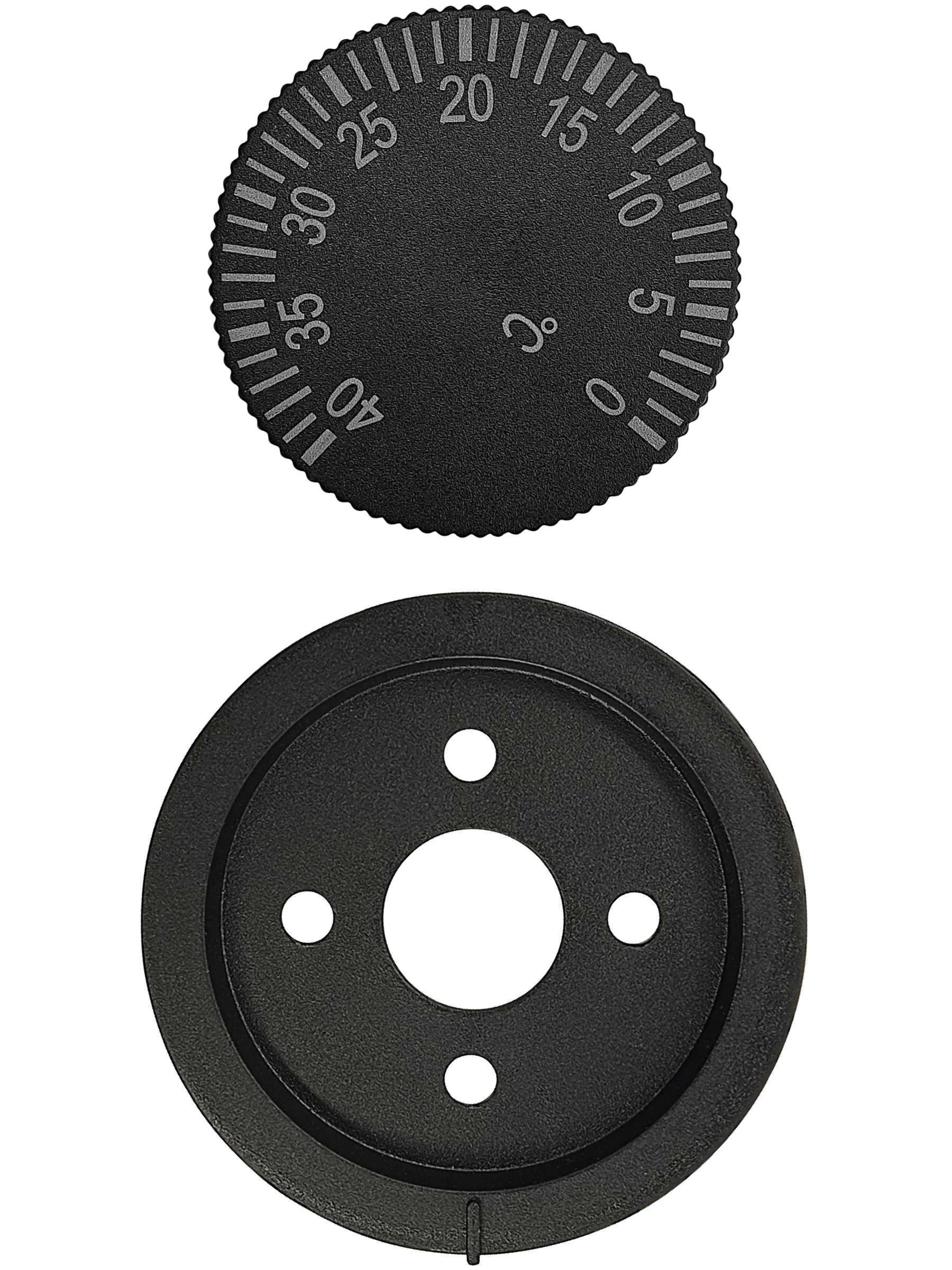

Handle dimensions

Handle with scale 0…40°C
