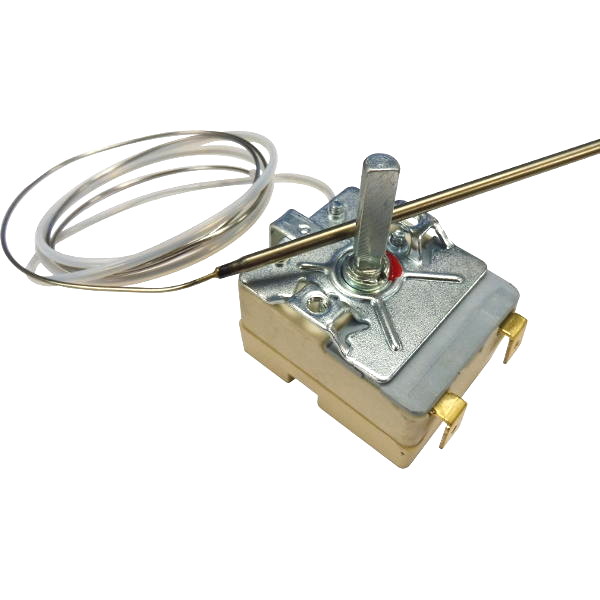

Capillary thermostat WKB-280S1 16A/250VAC

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.092

Adjustable capillary thermostat WKB-280S1 is designed to maintain required temperature in a certain device or its parts. Temperature rise causes the expansion of liquid within the bulb and capillary. The liquid acts on a diaphragm within the plastic housing to open electrical contacts that are normally closed.
Temperature adjusting range 50°C...280°C.
Breaking capacity 16A/250VAC.
Capillary and bulb are made of stainless steel. Capillary length 900 mm.

$3.64

pcs

Specifications

Bulb and capillary material	stainless steel
Temperature adjusting range	50°C...280°C
Temperature in position	H: 280±8°C L: 50°C;
Differential	8±5°C
Electric rating	16A/250VAC
Testing conditions	temperature changing rate ≤1K/min
Max temperature of the bulb	320°C
Max temperature of the case	125°C
Life	100 000 cycles

Dimensions and scheme

Capillary thermostat WKB-280S1 dimensions
