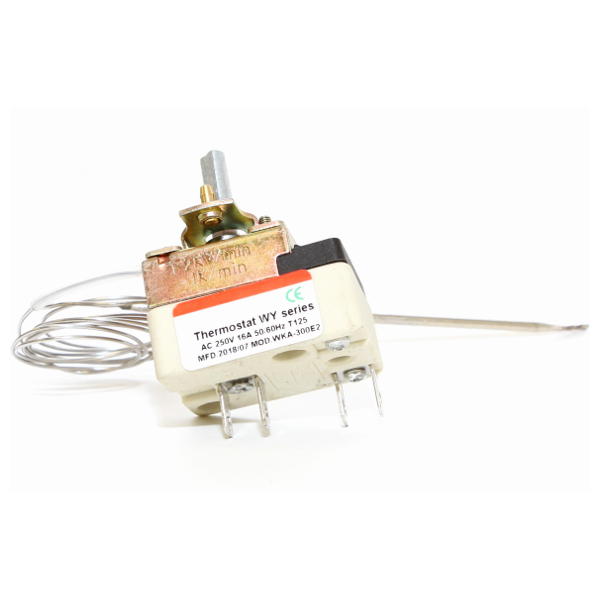

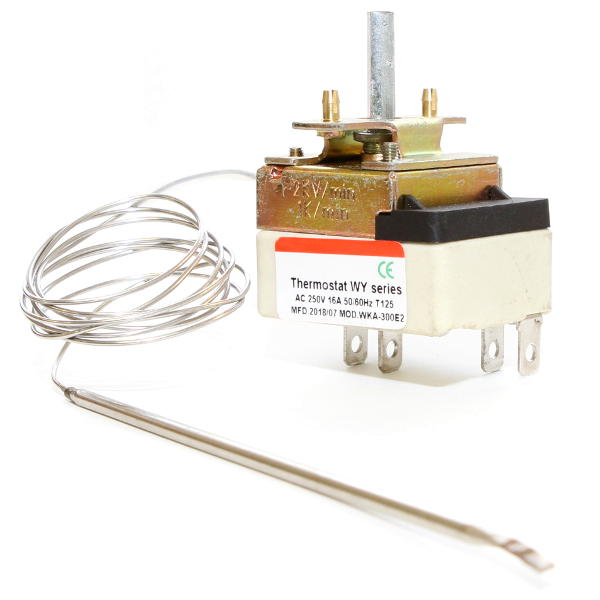

Capillary thermostat WKA-300E2

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 010.002.028

Single-pole capillary thermostat WKA-300E2 with temperature range 50°C...+300°C is designed to maintain the required temperature in a device or enclosure.
Rated load on the contacts 16A/250VAC.
Application: electric ovens.

☎ Price by call

Specification

Adjustable temperature range	50°C...+300°C
Differential	3°C...17°C
Rated voltage	250VAC
Rated current	16A
Max temperature of the bulb	350°C
Max temperature of the case	125°C
Capillary tube and bulb material	stainless steel
Capillary length	1000±30mm
Bulb diameter	3 mm
Life	100 000 cycles
