Temperature control thermostat TAM-133 1.3m

  • Model:
    010.002.074
  • Copy
  • photo 3
  • photo 4

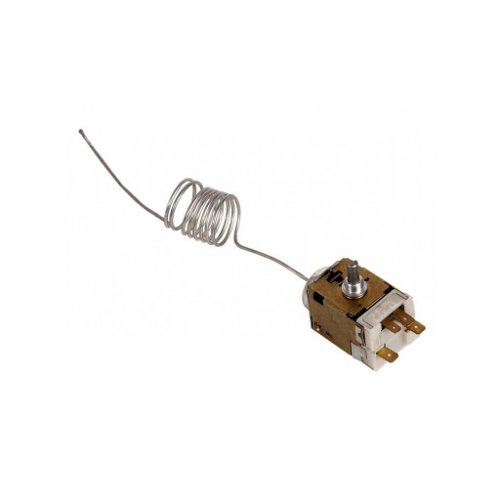

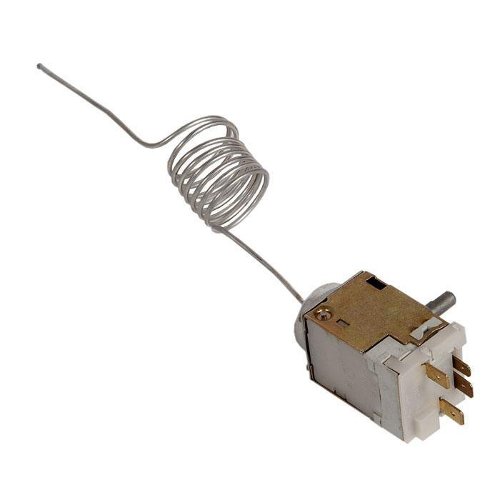

Temperature control thermostat TAM-133 1.3m
Thermostat TAM-133 for refrigerators. The capillary length is 1300 mm
$3.80
Available: 5 pcs
 pcs

Technical data

Contact1NO
Contact closure temperature3,5°C (Cold, Warm)
Contact opening temperature range-10°C (Warm)...-22,5°C (Cold)
Adjustable range-22,5°C...+3,5°C
Rated current6A/250V AC
Capillary length1300mm
Protection degreeIP00

Electrical circuit

Electrical circuit of TAM-133

Contacts 3-4 are the main normally open and close when the temperature rises.
