Adjustable bimetal thermostat KST 820 170C 16A 250VAC

  • Model:
    010.004.026
  • Copy
Thermostat KST 820 170C 16A 250VAC
Bimetal thermostat with adjustable temperature range +25…+170°C.
Normally closed contact - when the temperature reaches the upper limit bimetal bends and open the contacts.
Operating angle of the shaft - (270±5)°C.
Contacts load rating - 16A/250VAC.
$0.86
Available: 2805 pcs
 pcs

Technical data

Load rating16A/250VAC
Hi-Pot test2000V/0.5mA
Operating angle(240±5)°
Open temperature in Hi-Position(170±6)°С
ON angle (+25°C)(45±15)°
Hysteresis5 K

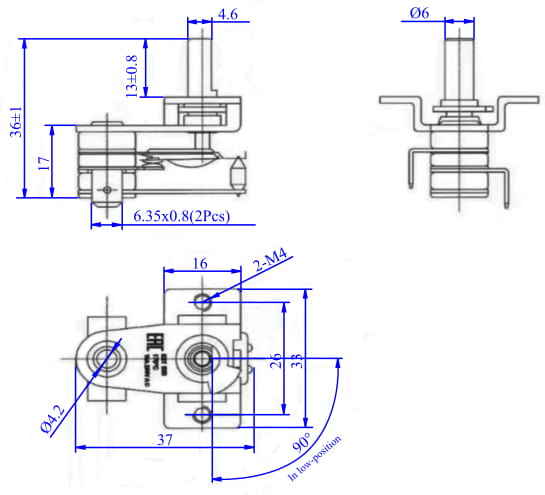

Dimensions

Adjustable bimetal thermostat KST820 170°C
