Model: 012.009.201

Manufacturer: WAGO

Barcode: 4017332955676

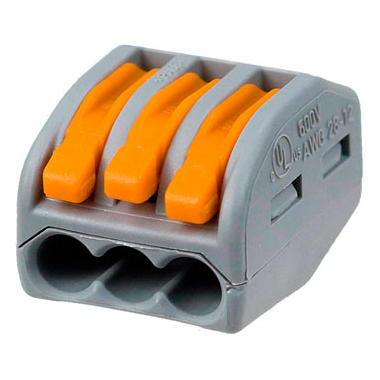

3-conductor terminal block with operating levers 222-413 is designed to connect solid and stranded wires with max cross section up to 2.5mm², fine-stranded wires with max cross-section 4mm².
Total rated load 32A at 400V.
Connection technology - Cage clamp.

☎ Price by call

Minimum Order: 50

Technical data

Rated load	32A/400V (ENEC) 20A/600V (UL)
Total number of connection points	3
Wires cross-section	0,08...2,5mm²/AWG 28-12 solid wire 0,08...2,5mm²/AWG 28-12 stranded wire 0,08...4mm²/AWG 28-12 fine-stranded wire
Rated surge voltage	4kV
Strip length	9...10mm
Connection technology	cage clamp
Pollution degree	2
Max continuous service temperature	85°C
Type of wiring	side-entry wiring
Fire load	0,088 MJ
Overall dimensions	17х20,5х14,5mm
Net weight	4,283g
Color	grey

Connector dimensions
