Rotary switch RTS-02-502-L2

  • Model:
    003.004.020
  • Copy

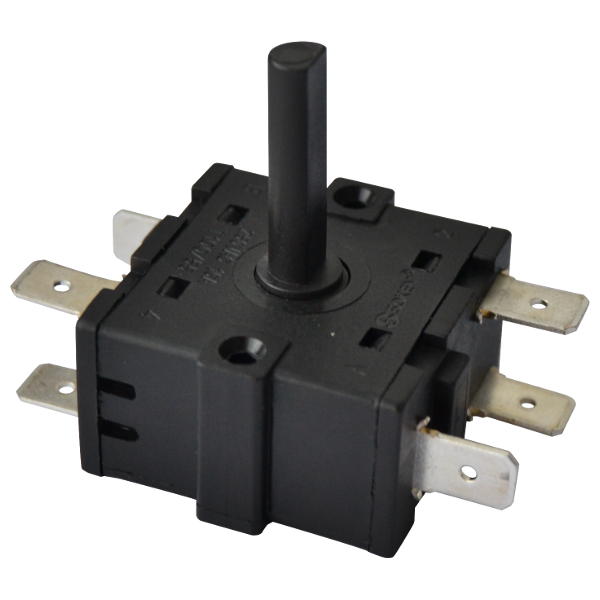

Rotary switch RTS-02-502-L2
RTS-02-502-L2 five-position rotary switch is used in heat curtains, fan heaters, etc. Rated current 16A/250V AC.
$1.15
Available: 363 pcs
 pcs

Dimensions

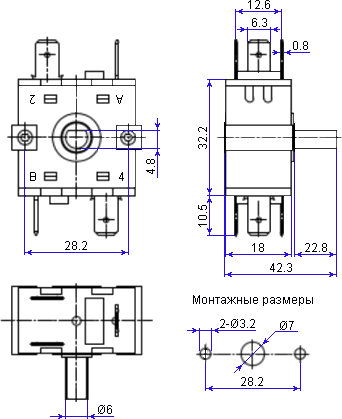

Switch RTS-02-502-L2 dimensions

Circuitry

Circuit of RTS-02-502-L2
