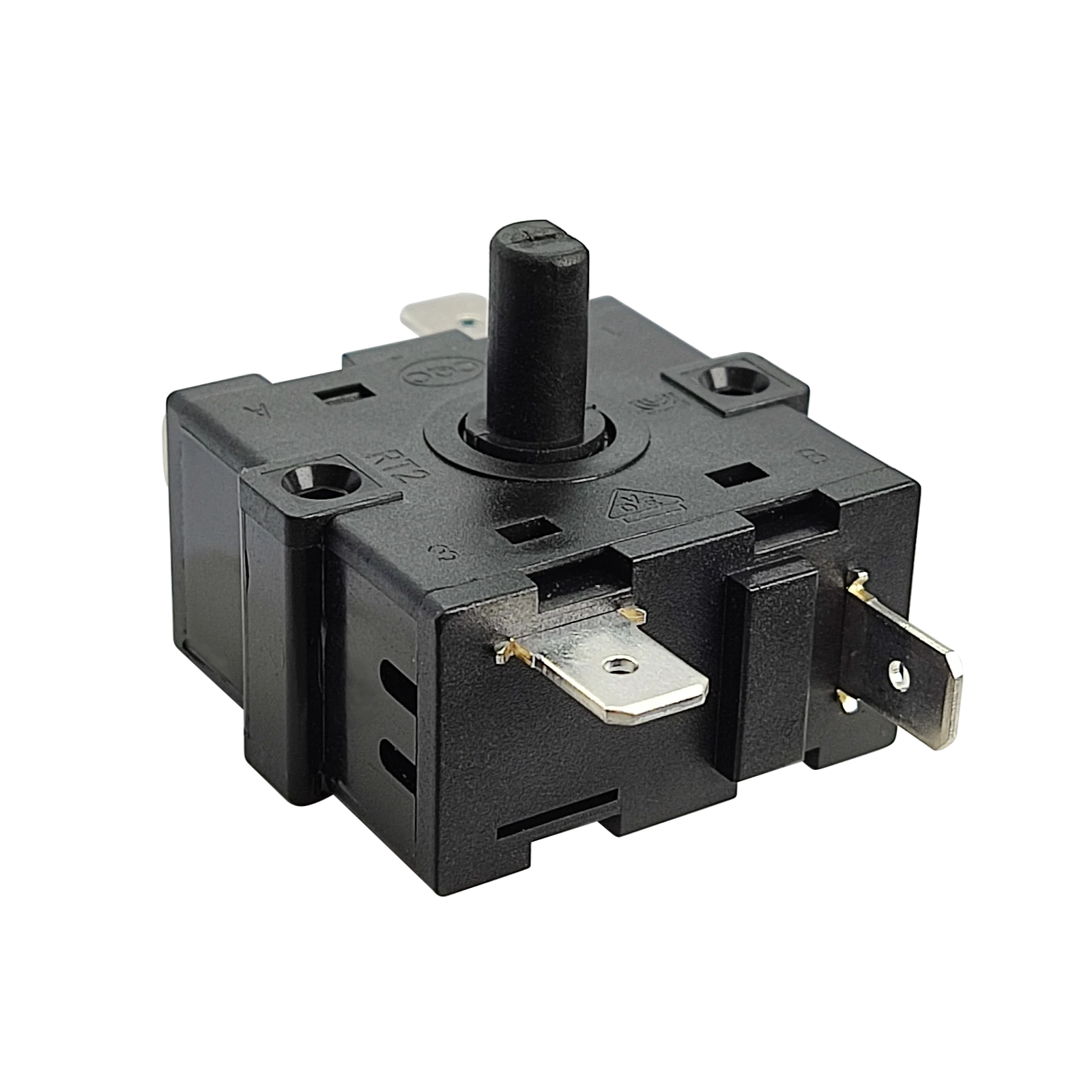

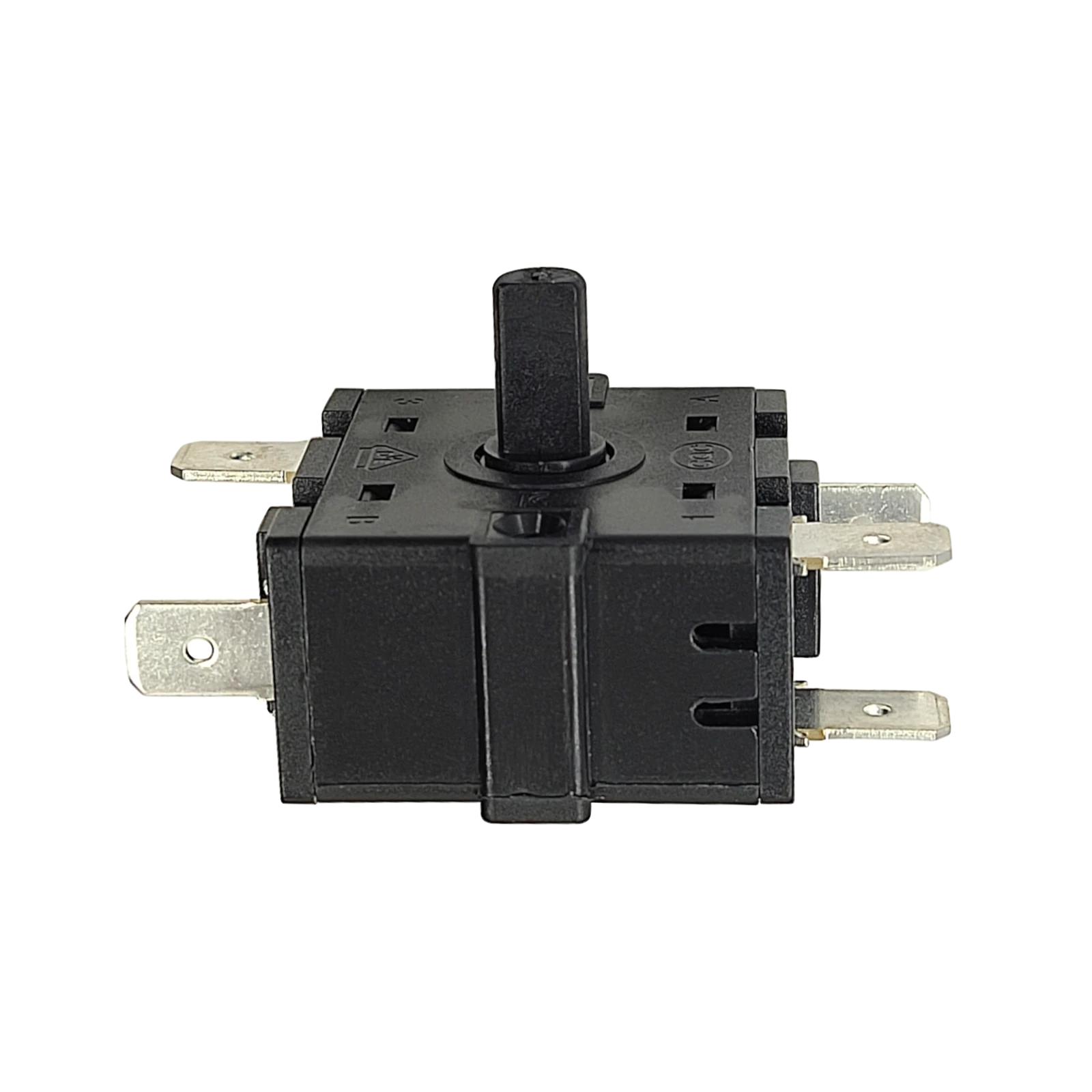

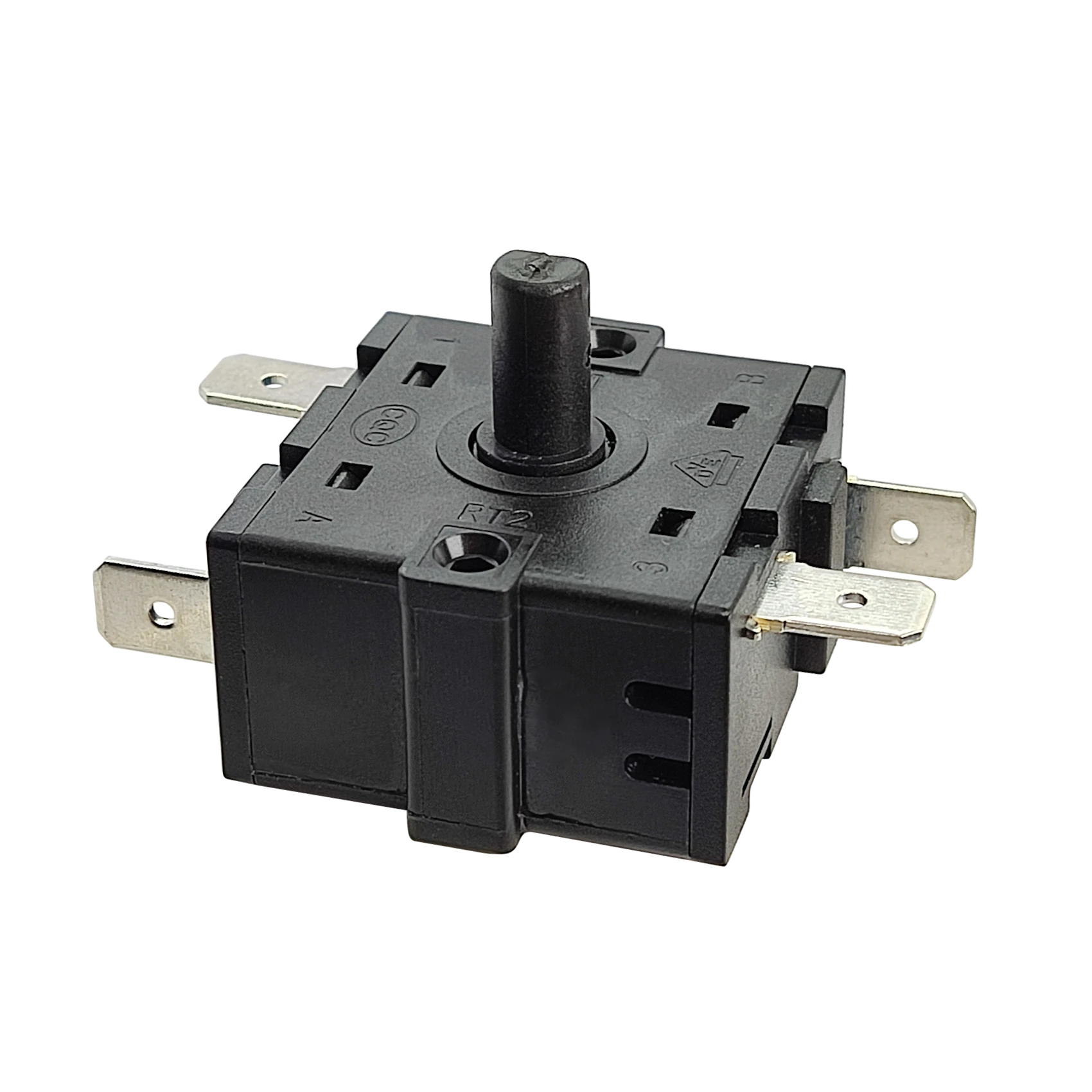

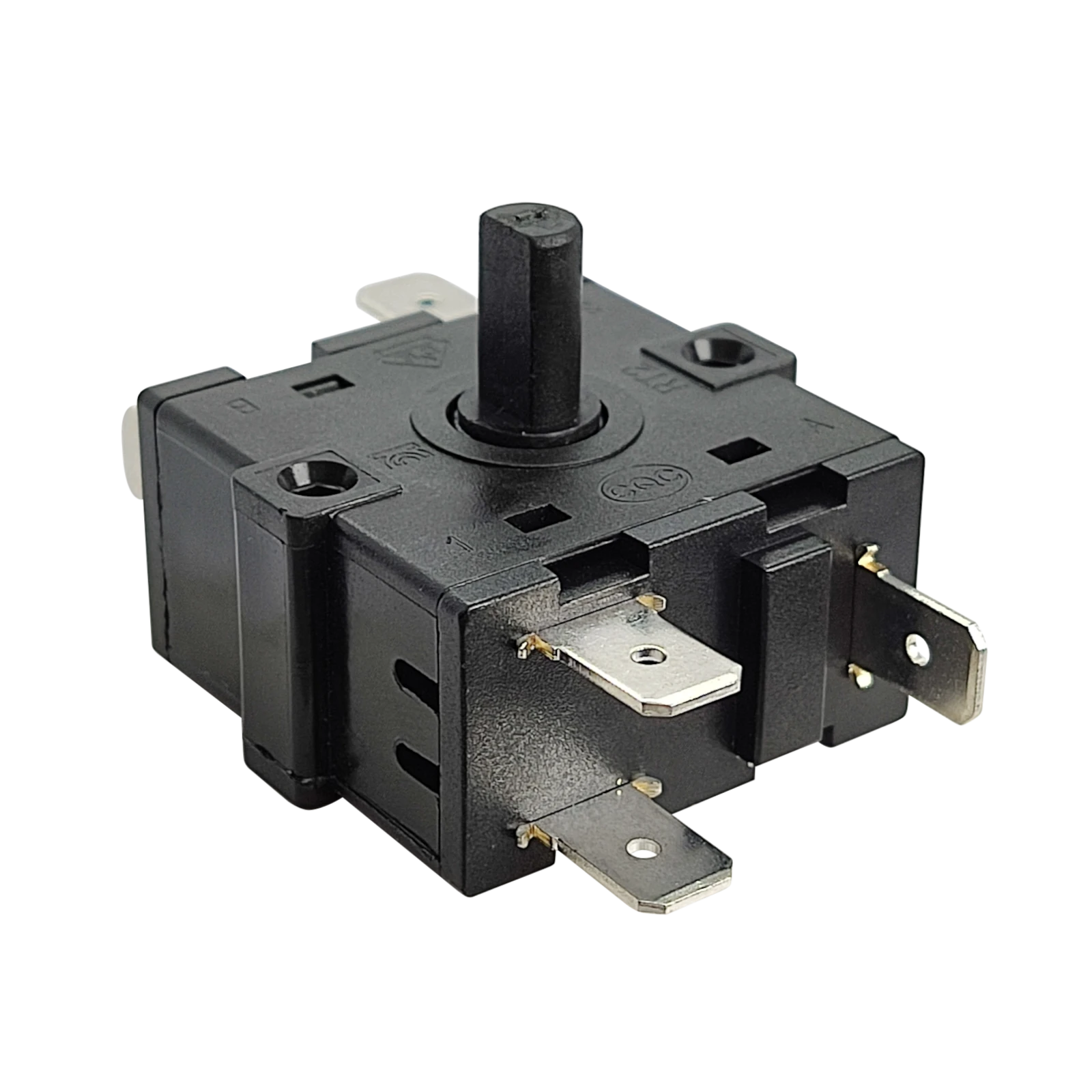

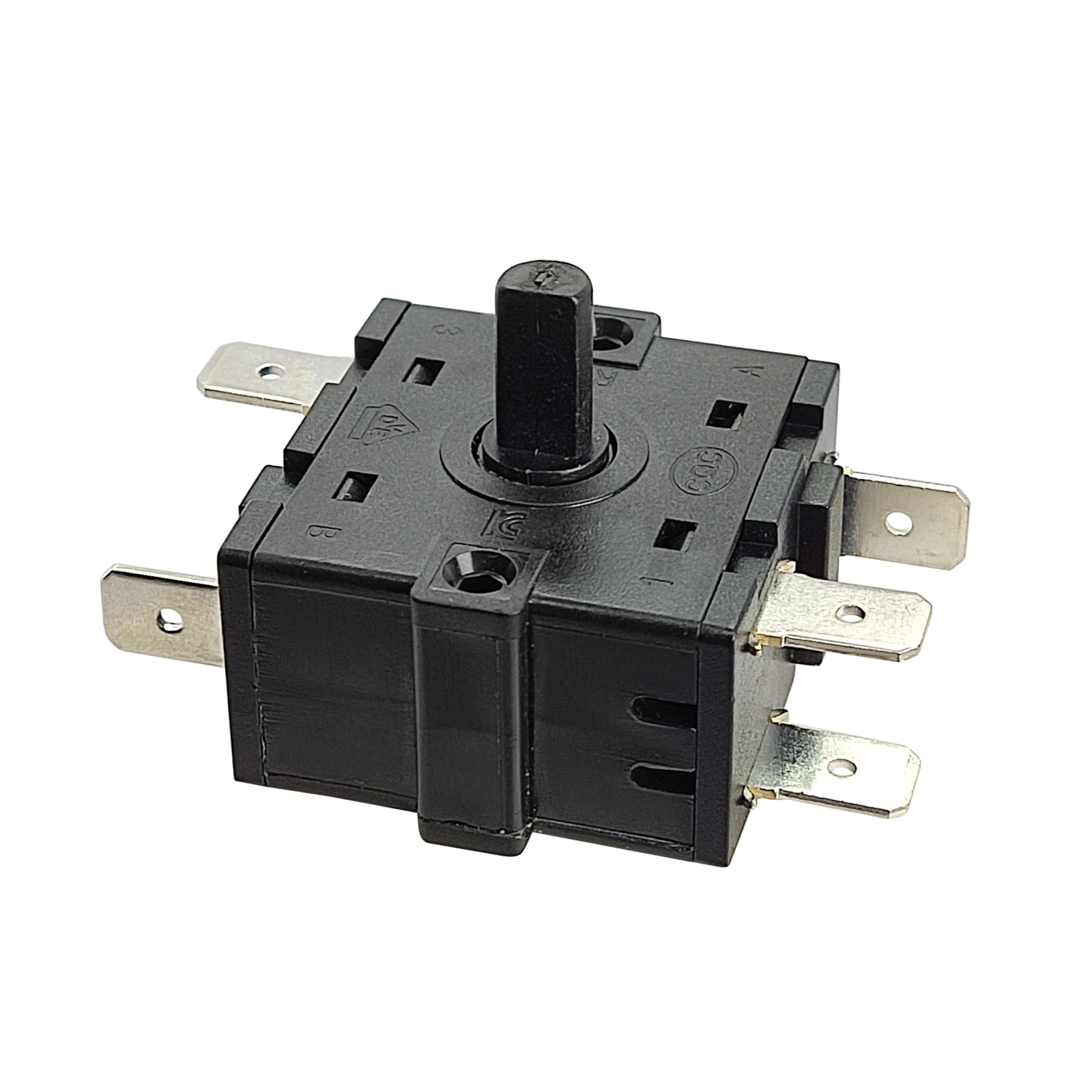

Rotary switch RT2
Rotary switch RT2 has 4 positions and can be used in many devices such as air curtains, fan heaters, stoves, etc. 30° rotation of the plastic shaft switches on the next position.
Housing material - PA66.
Terminals - Tab 250 (6.3x0.8).
Fixation by screws M2.5.
$0.97
Available: 6696 pcs
 pcs

Specification

Rated current16A 250VAC
Rated voltage125/250VAC
Contact insulation≤ 100mΩ
Insulation resistance≥ 100MΩ (at 500VDC)
Dielectric strength1000VAC for 1 min
Temperature range-25°C…+85°C
Operating force0.15±0.075N-m
Electric durability10000 cycles
Housing materialPA66
Contact materialsilver alloy

Dimensions

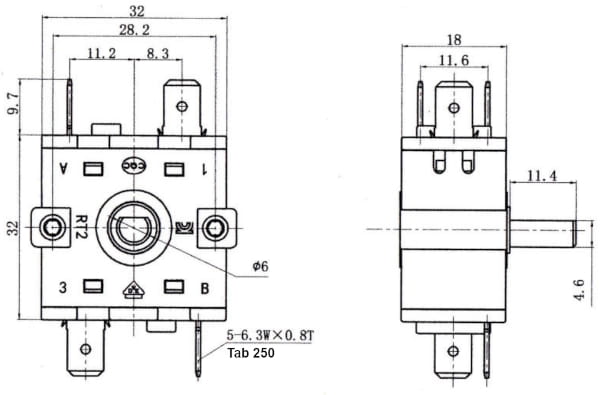

Dimensions of the rotary switch RT2

Circuitry

Scheme for the rotary switch RT2
