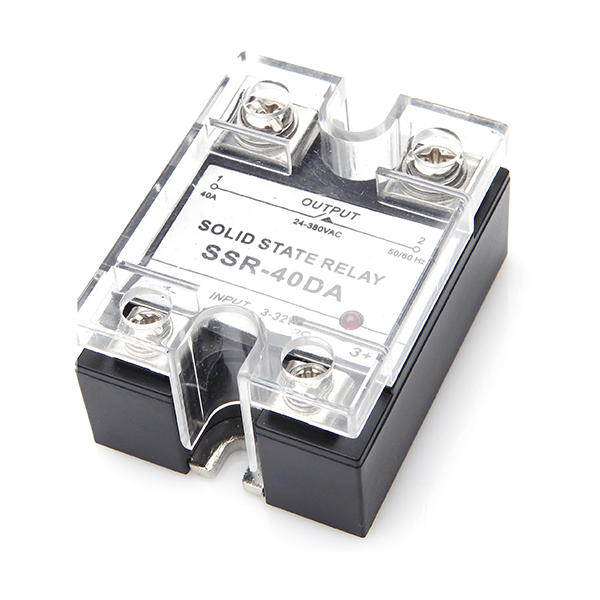

Solid state relay SSR-40DA 40A 3-32VDC, load voltage 24-380VAC

  • Model: 005.003.012
Relay SSR-40DA
Manufacturer: Essima
Solid state relay SSR-40DA is used for non-contact commutation of power circuits of mechanisms such as heating elements, lighting devices and low power motors.
  • Load current 40A
  • Load voltage 24-380VAC
  • Input voltage 3-32VDC
$4.01
 pcs

Specification

Load current40A
Load voltage24-380VAC
Input voltage3-32VDC
Dielectric strength2500VAC
Off leakage current≤5mA
On-Off time≤10ms
Insulation resistance≥50MOhm
Ambient temperature range-30°C...+70°C
Relative humidity35%...85%
IndicationLED for input signal control
Mountingby means of screws
Dimensions62х45х23.5mm
Net weight0.1 kg

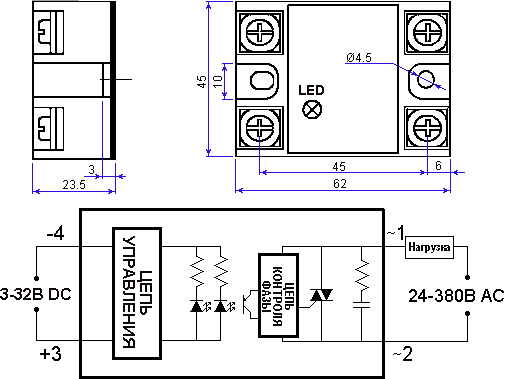

Dimensions and wiring diagram

Dimensions and wiring diagram of solid state relay SSR-40DA
