| Main |
|---|

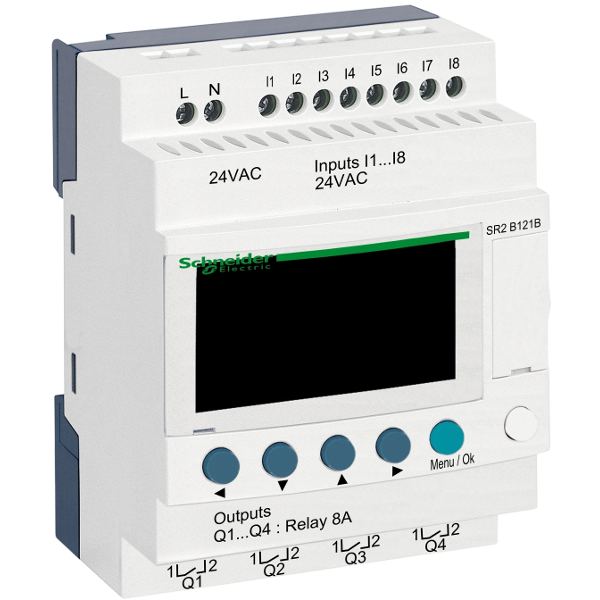

| range of product | Zelio Logic |
| product or component type | Compact smart relay |
| Complementory |
|---|
| local display | With |
| number or control scheme lines | 0...500 with FBD programming
0...240 with ladder programming |
| cycle time | 6...90 ms |
| backup time | 10 years at 25 °C |
| clock drift | 6 s/month at 25 °C
12 min/year at 0...55 °C |
| checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V AC |
| supply voltage limits | 20.4...28.8 V |
| supply frequency | 50/60 Hz |
| supply current | 145 mA (without extension) |
| power consumption in VA | 4 VA without extension |
| isolation voltage | 1780 V |
| protection type | Against inversion of terminals (control instructions not executed) |
| discrete input number | 8 |
| discrete input voltage | 24 V AC |
| discrete input current | 4.4 mA |
| discrete input frequency | 47...53 Hz
57...63 Hz |
| voltage state 1 guaranteed | ⩾ 14 V for discrete input |
| voltage state 0 guaranteed | ⩽5 V for discrete input |
| current state 1 guaranteed | ⩾2 mA for discrete input |
| current state 0 guaranteed | ⩽0.5 mA for discrete input |
| input impedance | 4.6 kOhm (discrete input) |
| number of outputs | 4 relay output(s) |
| output voltage limits | 24...250 V AC
5...30 V DC (relay output) |
| contacts type and composition | NO for relay output |
| output thermal current | 8 A for all 4 outputs (relay output) |
| electrical durability | 500000 cycles AC-12 at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
500000 cycles AC-15 at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1
500000 cycles DC-12 at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
500000 cycles DC-13 at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| switching capacity in mA | ⩾ 10 mA at 12 V (relay output) |
| operating rate in Hz | 0.1 Hz (at Ie) for relay output
10 Hz (no load) for relay output |
| mechanical durability | 10000000 cycles (relay output) |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| clock | With |
| response time | 10 ms (from state 0 to state 1) for relay output
5 ms (from state 1 to state 0) for relay output
50 ms with ladder programming (from state 0 to state 1) for discrete input
50 ms with ladder programming (from state 1 to state 0) for discrete input
50...255 ms with FBD programming (from state 0 to state 1) for discrete input
50...255 ms with FBD programming (from state 1 to state 0) for discrete input |
| connections - terminals | Screw terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14 semi-solid
Screw terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14 solid
Screw terminals, clamping capacity: 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14 flexible with cable end
Screw terminals, clamping capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16 solid
Screw terminals, clamping capacity: 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18 flexible with cable end |
| tightening torque | 0.5 N.m |
| overvoltage category | III conforming to EN/IEC 60664-1 |
| product weight | 0.25 kg |
| Environment |
|---|
| immunity to microbreaks | ⩽10 ms repeated 20 times |
| product certifications | CSA
C-Tick
GL
GOST
UL |
| standards | EN/IEC 60068-2-27 Ea
EN/IEC 60068-2-6 Fc
EN/IEC 61000-4-11
EN/IEC 61000-4-12
EN/IEC 61000-4-2 level 3
EN/IEC 61000-4-3
EN/IEC 61000-4-4 level 3
EN/IEC 61000-4-5
EN/IEC 61000-4-6 level 3 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529
IP40 (front panel) conforming to IEC 60529 |
| environmental characteristic | EMC directive conforming to EN/IEC 61000-6-2
EMC directive conforming to EN/IEC 61000-6-3
EMC directive conforming to EN/IEC 61000-6-4
EMC directive conforming to EN/IEC 61131-2 zone B
Low voltage directive conforming to EN/IEC 61131-2 |
| disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| pollution degree | 2 conforming to EN/IEC 61131-2 |
| ambient air temperature for operation | -20...40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
-20...55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| ambient air temperature for storage | -40...70 °C |
| operating altitude | 2000 m |
| altitude transport | ⩽ 3048 m |
| relative humidity | 95 % without condensation or dripping water |
