Miniature relay RXM4AB1B7

Model: 005.006.006
Miniature relay RXM4AB1B7
Manufacturer: Schneider Electric
Barcode: 3389119403702

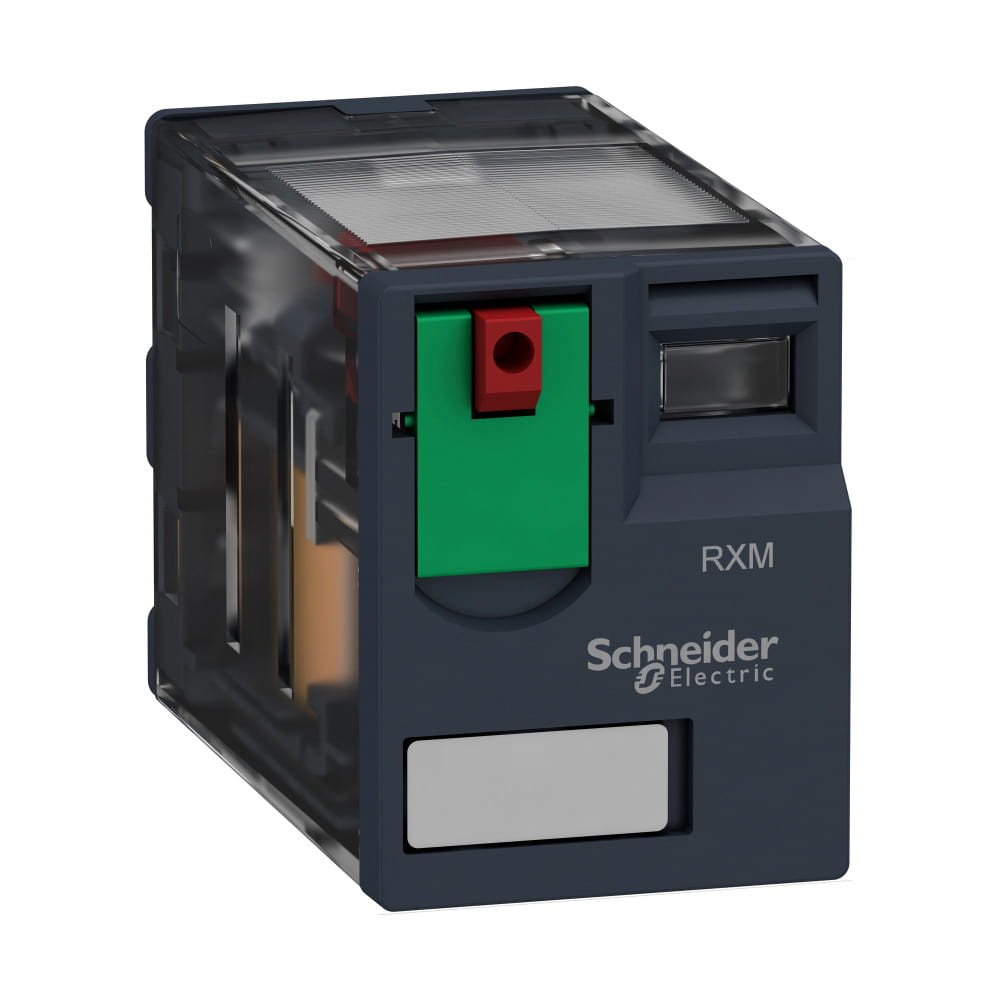

Miniature electromagnetic relay Zelio Relay RXM4AB1B7.
On the front panel are located:
- Button for testing the contacts;
- Label for marking relays.
The relay has 4 (4CO) contacts. Material of contacts is AgNi.
Coil - 24V AC.
☎ Price by call

Main

range of productZelio Relay
series nameMiniature
product or component typePlug-in relay
device short nameRXM
contacts type and composition4 C/O
[Uc] control circuit voltage24 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current6 A at -40…55 °C
status LEDWithout
control typeLockable test button
utilisation coefficient20 %

Complementary

shape of pinFlat
[Ui] rated insulation voltage250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage2.5 kV during 1.2/50 µs
contacts materialAgNi
[Ie] rated operational current3 A at 28 V (DC) NC conforming to IEC
3 A at 250 V (AC) NC conforming to IEC
6 A at 28 V (DC) NO conforming to IEC
6 A at 250 V (AC) NO conforming to IEC
6 A at 277 V (AC) conforming to UL
8 A at 30 V (DC) conforming to UL
maximum switching voltage250 V conforming to IEC
resistive rated load6 A at 250 V AC
6 A at 28 V DC
maximum switching capacity1500 VA/168 W
minimum switching capacity170 mW at 10 mA, 17 V
operating rate≤ 1200 cycles/hour under load
≤ 18000 cycles/hour no-load
mechanical durability10000000 cycles
electrical durability100000 cycles for resistive load
average coil consumption in VA1.2 at 60 Hz
average consumption1.2 VA at 60 Hz
drop-out voltage threshold>= 0.15 Uc
operate time20 ms
release time20 ms
average coil resistance180 Ohm at 20 °C +/- 15 %
rated operational voltage limits19.2...26.4 V AC
safety reliability dataB10d = 100000
protection categoryRT I
test levelsLevel A group mounting
operating positionAny position
CAD overall height79 mm
CAD overall depth78.45 mm
net weight0.037 kg
device presentationComplete product

Dimensions

Размеры реле RXM4AB1BD

Electrical circuit

Electrical circuit
Symbols shown in blue correspond to NEMA marking .
