Relay JQX-13F 24VDC

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 005.001.016

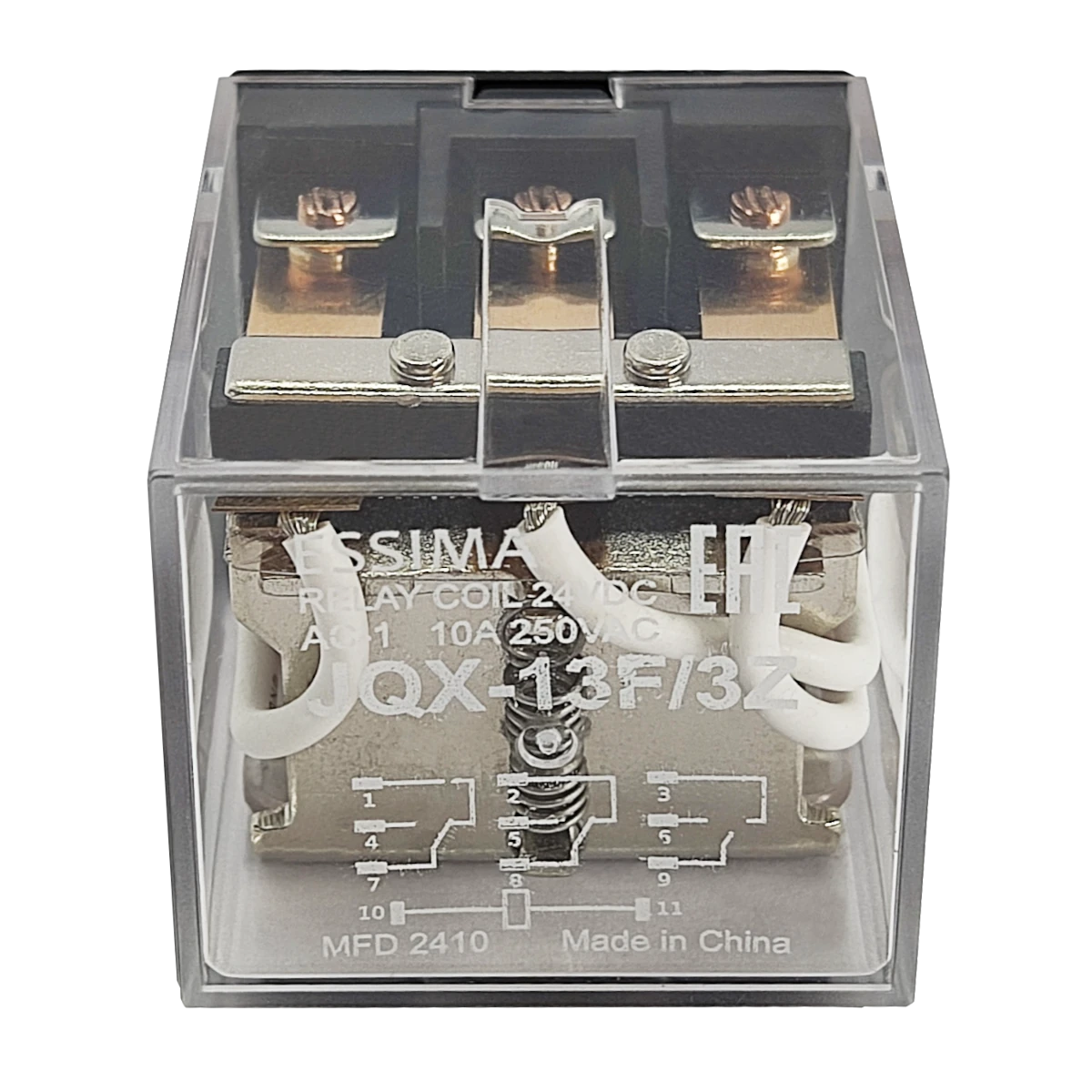

Relay JQX-13F 24VDC

Manufacturer: Essima

Power relay JQX-13F. Contact capacity is 10A

☎ Price by call

Description

Specifications

Dimensions (mm)	42 x 31 x 21.5
Operate/ Release time	≤25ms/ 25ms
Contact form	3Z
Contact material	AgCdO, AgSnO₂
Contact capacity	10A 250VAC
Coil voltage	24VDC
Coil power	0.9W
Pick-up voltage (25°C)	19.2VDC
Drop-out voltage (25°C)	2.4VDC
Contact resistance	≤100mΩ
Insulation resistance	≥500MΩ
Dielectric strength	1000VAC/1min - between open contacts 1500VAC/1min - between coil and contacts
Weight	130 g

Dimensions

relay dimensions JQX-13F

Auxiliaries and accessories for JQX-13F/3Z-24VDC

Similar or replacement products JQX-13F/3Z-24VDC
