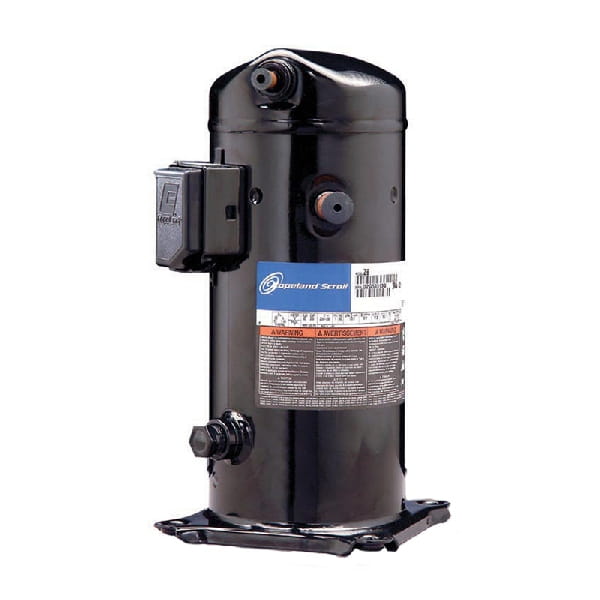

Scroll compressor ZF13KVE-TFD-551 Copeland

Manufacturer: Copeland

The scroll compressor ZF13KVE-TFD-551 of the ZF Copeland Scroll series is used in refrigeration, provides high performance in low temperature conditions. Compressor design optimized for food freezing requirements.
− Low temperature mode.
− Supply voltage 380-420V, 3 phase, 50Hz.
− Can be used with R407A/F, R448A/R449A, R404A refrigerants.
− Volumetric productivity 11.7m³/h.

☎ Price by call

Specifications

Model	ZF13KVE-TFD-551
Compressor type	scroll hermetic compressor with vapor refrigerant injection into the compression chamber
Temperature conditions	low temperature
Application area	refrigeration technology
Refrigerants approved	R407A/F, R448A/R449A, R404A
Volume productivity, m³/h	11.7
Oil charge, l	1.9
Brand and type of oil	Emkarate RL32-3MAF synthetic polyester
Power supply	380-420V, 3 phase, 50Hz
Maximum operating current, A	9
Overall dimensions (length×width×height), mm	246x251x442
Suction nozzle diameter, inch	1 1/4
Discharge pipe diameter, inch	1
Net weight, kg	38

Range ZF Copeland Scroll

Model	Volume productivity, m³/h	Engine Version/Code	Maximum operating current (A)	Dimensions (LxWxH), mm
Model	Volume productivity, m³/h	3 phases**	3 phases**	Dimensions (LxWxH), mm
Liquid Injection Models
ZF06K4E	5.9	TFD	5	243 x 245 x 369
ZF08K4E	7.3	TFD	6	243 x 245 x 391
ZF09K4E	8	TFD	6	243 x 244 x 391
ZF11K4E	9.9	TFD	7	243 x 244 x 405
ZF13K4E	11.8	TFD	8	246 x 251 x 442
ZF15K4E	14.5	TFD	10	246 x 251 x 442
ZF18K4E	17.1	TFD	12	246 x 251 x 442
Liquid Injected ZF Summit Models
ZF25K5E	21.4	TFD	16	246 x 257 x 452
ZF34K5E	29.1	TFD	25	280 x 280 x 534
ZF41K5E	35.3	TFD	29	280 x 280 x 534
ZF49K5E	42.4	TFD	30	280 x 280 x 552
ZF54K5E	48.3	TFD	31	363 x 312 x 552
Models with improved steam injection system
ZF13KVE	11.7	TFD	9	246 x 251 x 442
ZF18KVE	17.1	TFD	13	246 x 251 x 442

** 3 phase: 380-420V / 50Hz
