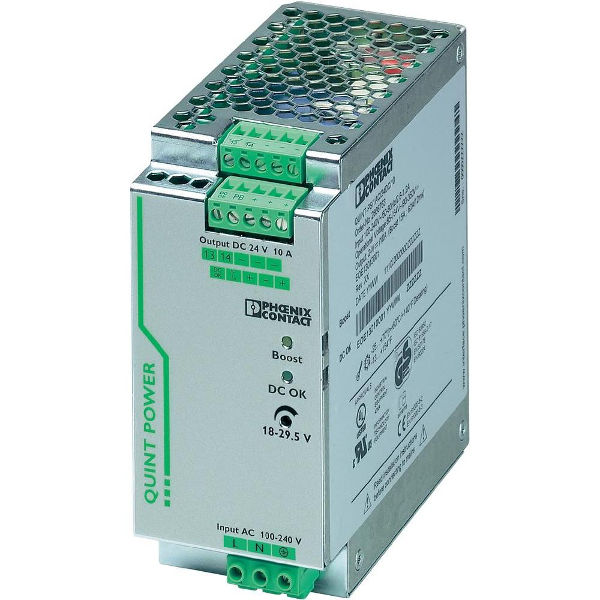

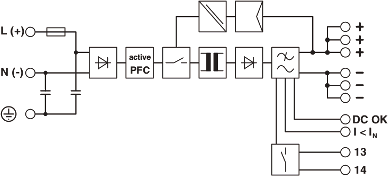

| Output data |
|---|
| Nominal output voltage | 24VDC ±1% |
| Setting range of the output voltage | 18VDC...29,5VDC |
| Output current | 10А (-25°C...+60°C, Uout=24VDC)
15А (with Power Boost, -25°C...+40°C, permanently, Uout=24VDC)
60A (SFB technology, 12ms)
15А (Uin≥ 100VАС, ≥ 110VDC) |
| Derating | 60°C...70°C (2,5% / K) |
| Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes |
| Control deviation | < 1% (change in load, static 10%...90%)
< 2% (change in load, dynamic 10%...90%)
< 0,1% (change in input voltage ±10%) |
| Residual ripple | < 50 mVpp (with nominal values) |
| Max power dissipation NO-load | 9.1W |
| Max power loss nominal load | 22W |
| Input data |
|---|
| Nominal input voltage range | 110VAC...240VAC
110VDC...250VDC |
| Input voltage range | 85V...264V АС (50/60Hz)
90V...350V DC |
| Short-term input voltage | 300VAC |
| AC frequency range | 45Hz...65Hz |
| Inrush surge current | < 15A (typical) |
| Power failure bypass | > 36ms (120VAC)
>36 ms (230VAC) |
| Input fuse | 10А (slow-blow, internal) |
| Choice of suitable fuses | 10А...16А (АС: characteristics B, C, D, K) |
| Type of protection | transient surge protection |
| Protective circuit/component | varistor, gas-filled surge arrester |
| Ganaral data |
|---|
| Dimensions (WxHxD) | 60 x 130 x 125 mm |
| Efficiency (for 230VAC and nominal values) | > 92.5 % |
| Insulation voltage input/output | 4 kVAC (type test)
2 kVAC (routine test) |
| Protection class | I
> 535000 h (40°C) |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: 5 mm horizontally, 15 mm next to active components, 50 mm vertically |
| Electromagnetic compatibility | conformance with EMC directive 2004/108/EC |
| Surge voltage category | III |
| DeviceNet approval | DeviceNetTM Power supply conformance tested |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25°C...+70°C |
| Ambient temperature (storage/transport) | -40°C...+85°C |
| Max permissible relative humidity (operation) | ≤ 95% (at 25°C, non-condensing) |
| Connection data |
|---|
| Connection method | pluggable screw connection |
| Solid conductor cross-section/AWG | 0,2...2,5mm2/16...12 |
| Stranded conductor cross-section/AWG | 0,2...2,5mm2/16...12 |
| Stripping length | 7 mm |
| Screw thread | М3 |
