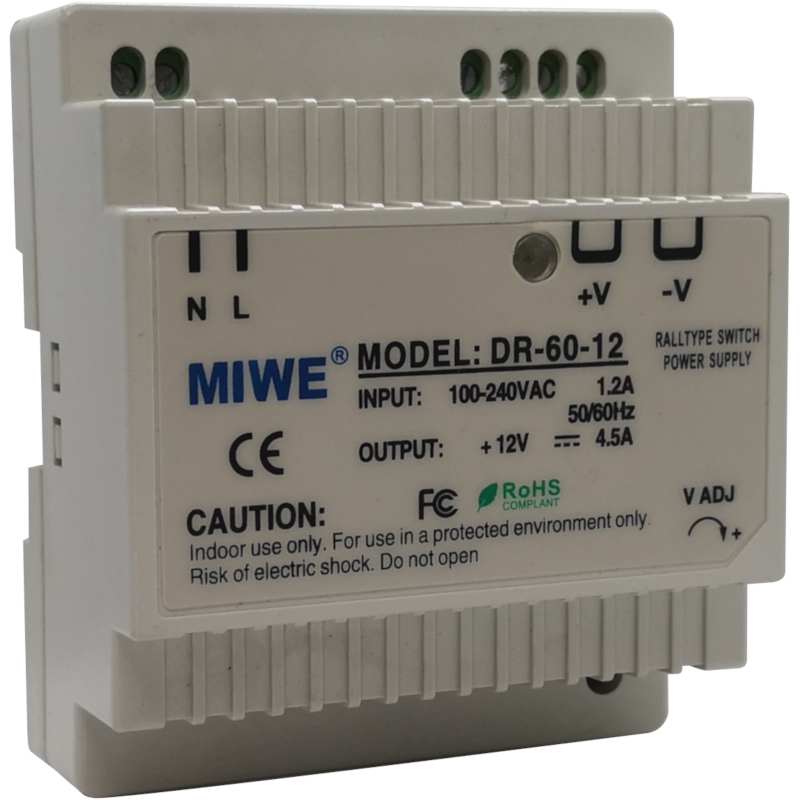

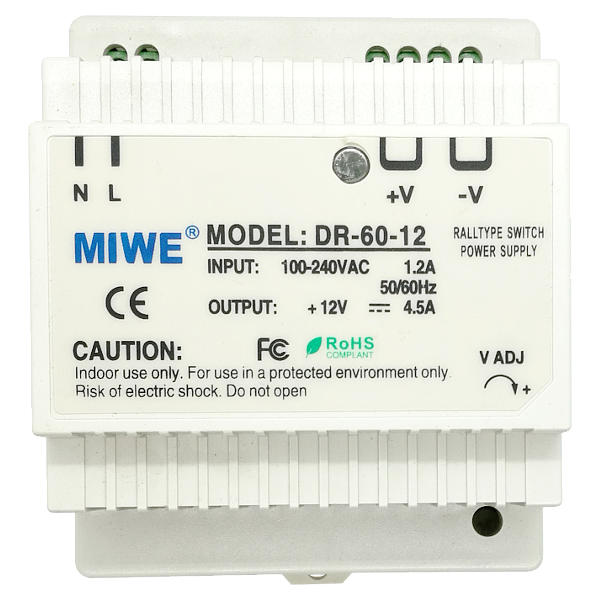

Power supply DR-60-12
Single output industrial power supply DR-60-12 is designed for DIN rail mounting TS-35/7.5 or 15. Can be used for devices with rated voltage 12VDC and maximum load 4,5A.
  • Protection against short circuits, overload, over voltage
  • Cooling by free air convection
  • LED indicatior for power ON
  • Isolation class II

Specification

Output characteristics
Rated voltage12 VDC
Rated current4.5 A
Current range0 … 4.5 A
Rated power54 W
Ripple and noise (max)120 mVp-p
Voltage adjusting range11.1 … 13.2 V
Voltage tolerance±1%
Line regulation±1%
Load regulation±1%
Setup, rise time100ms, 30ms/230VAC at full load
Hold up time100ms/230VAC at full load
Input characteristics
Voltage range88 … 264VAC
Frequency range47 … 63Hz
Efficiency82%
AC current0.8A/230VAC
Inrush current (cold start)36A/230VAC
Environment
Operating temperature-20°C … +60°C
Operating humidity20 … 90% (non-condensing)
Storage temperature and humidity-40 … +85°C, 10 … 95%
Protection
Overload105 … 160% rated output power
Protection type: constant current limiting, recovers automatically after fault condition is removed
Over voltage13.8 … 16.2V
Protection type: shut down output voltage, re-power on to recover

Dimensions and terminal pin assignment

Power supply DR-60-12 dimensions
Terminal pin numberAssignment
1AC/N
2AC/L
3, 4+V
5, 6-V
7LED
8+V ADJ

Block diagram

Power supply DR-60-12
