Cross-flow fan VD111-24D-G with speed control

  • Model:
    011.009.094
  • Copy

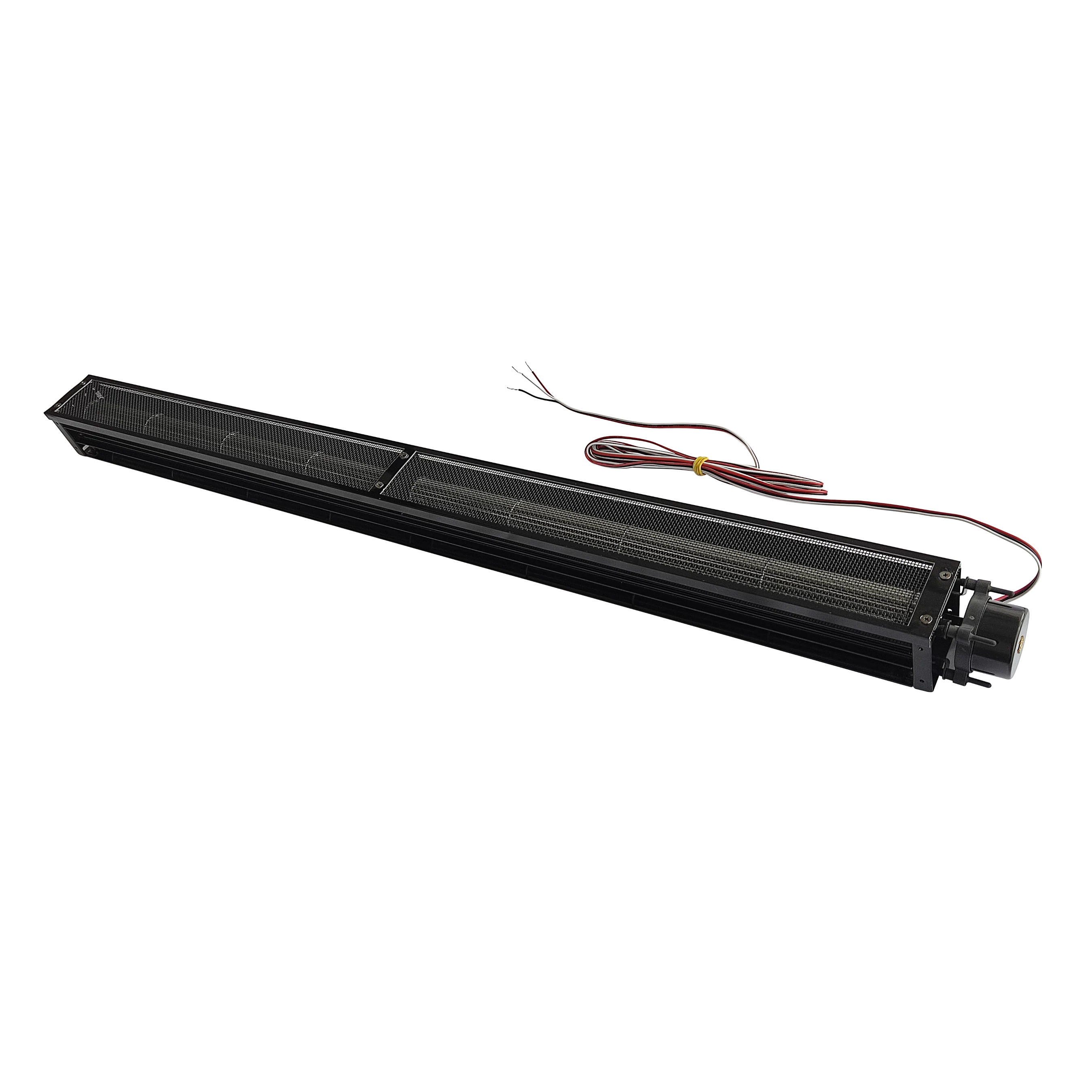

Cross-flow blower VD111-24D-G with grid
Cross-flow fan VD111-24D-G with DC brushless type motor.
Rated voltage 24VDC.
Width of airflow - 530mm.
Max air flow 100 m³/h.
Speed control type: 0…10V voltage control.
$52.77
Available: 57 pcs
 pcs

Technical characteristics

Wheel diameter30 mm
Width of airflow530 mm
Rated operational voltage24V DC
Speed control0…10V voltage control
Speed2400rpm
Max air flow≥100 m³/h
Noise level33 dB(A)
Motor IP classIP20
Insulation classF
Connection3 lead wire, length 400±20mm

Dimensions and wiring diagram

Dimensions of cross flow fan VD111-24D-G
wiring diagram of cross flow fan VD111-24D-G
