Cross-flow fan VD103-230A

  • Model:
    011.009.088
  • Copy
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7
  • photo 8
  • photo 9

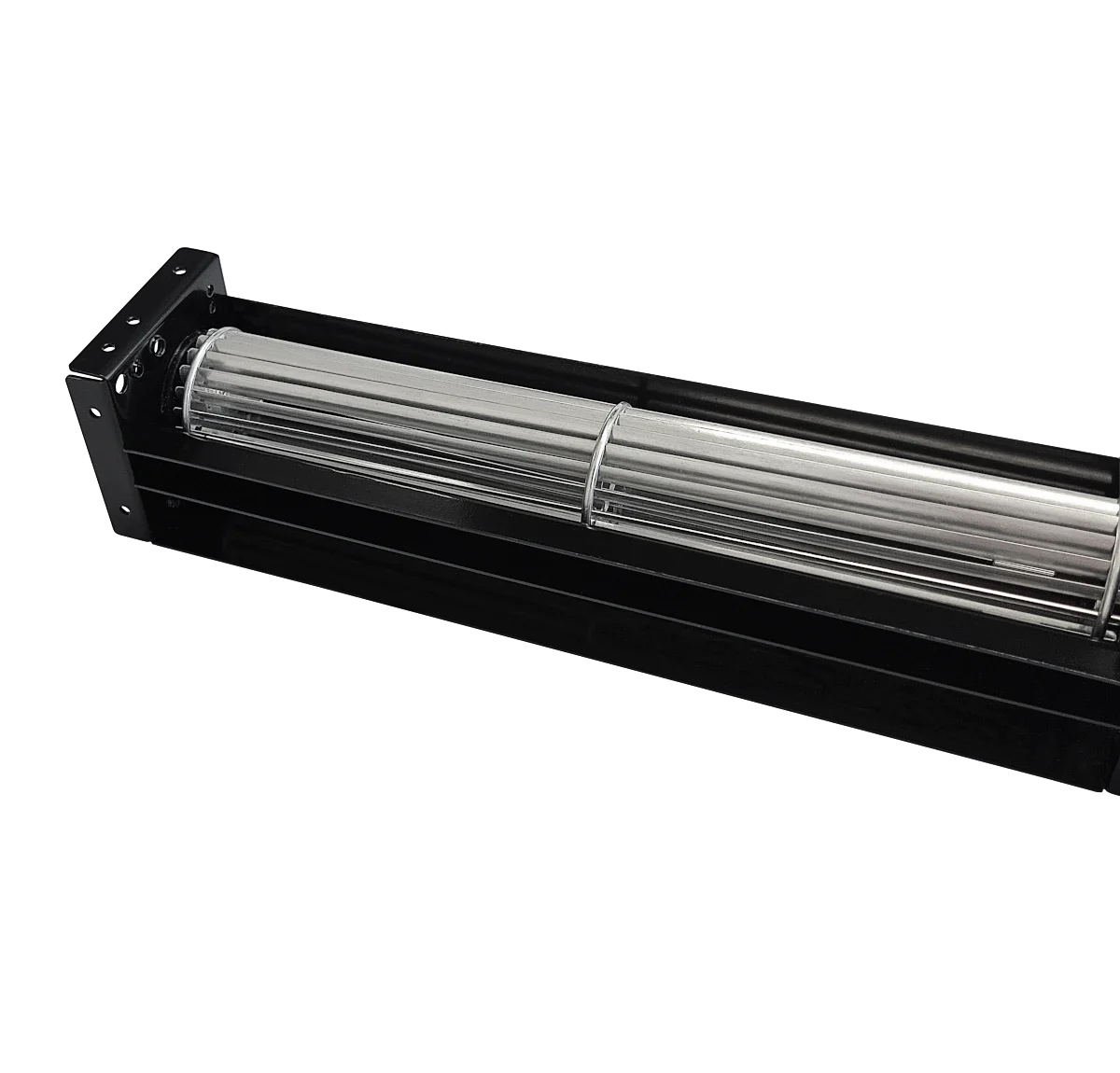

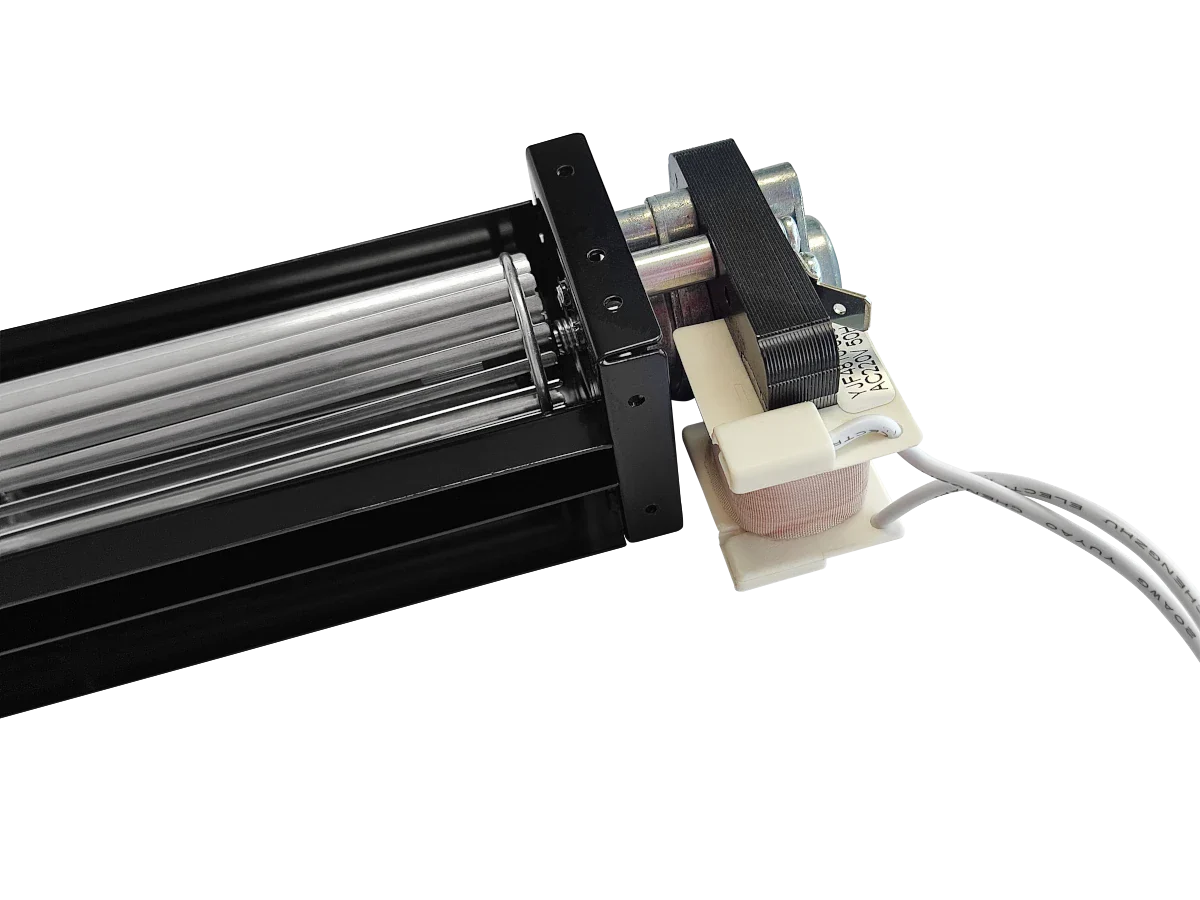

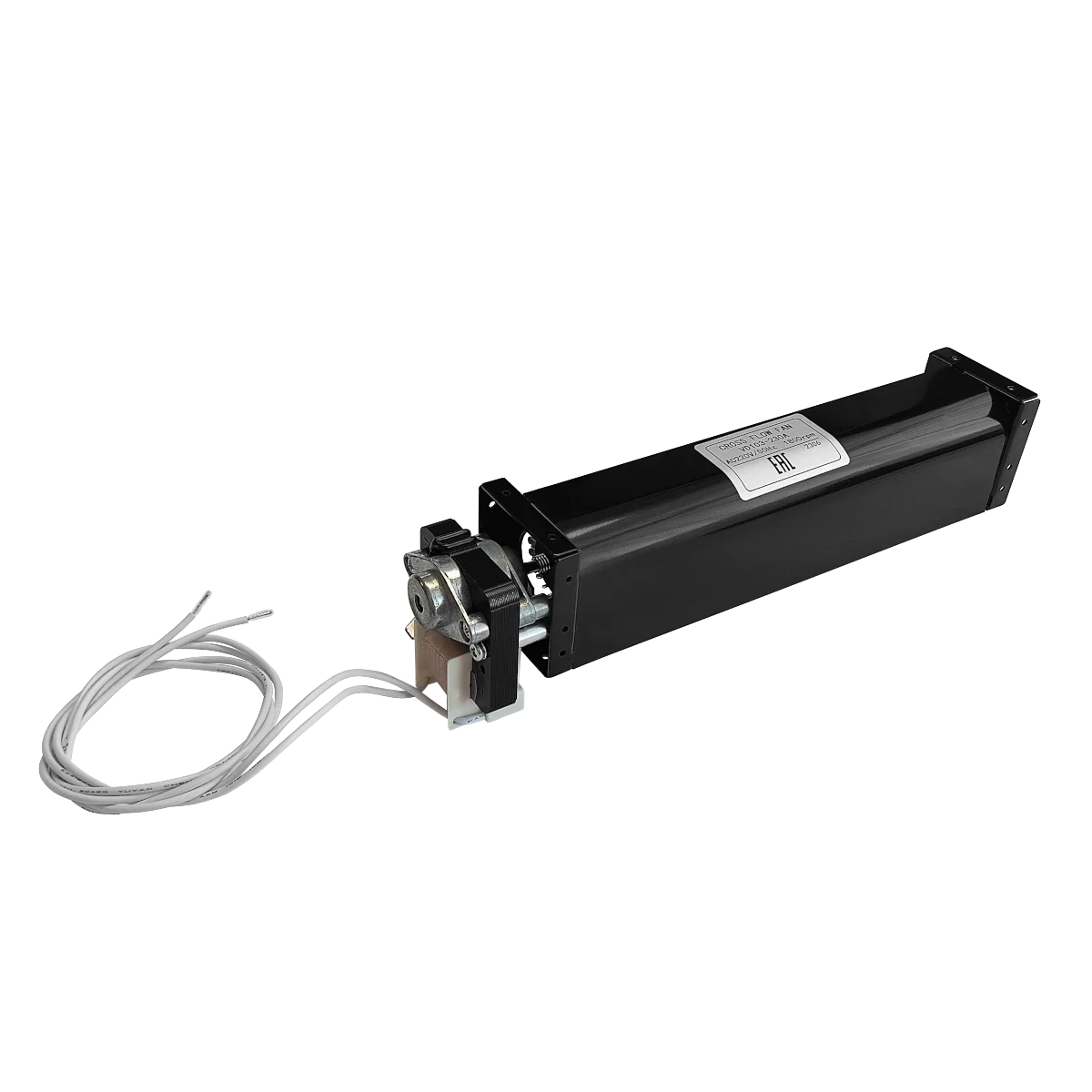

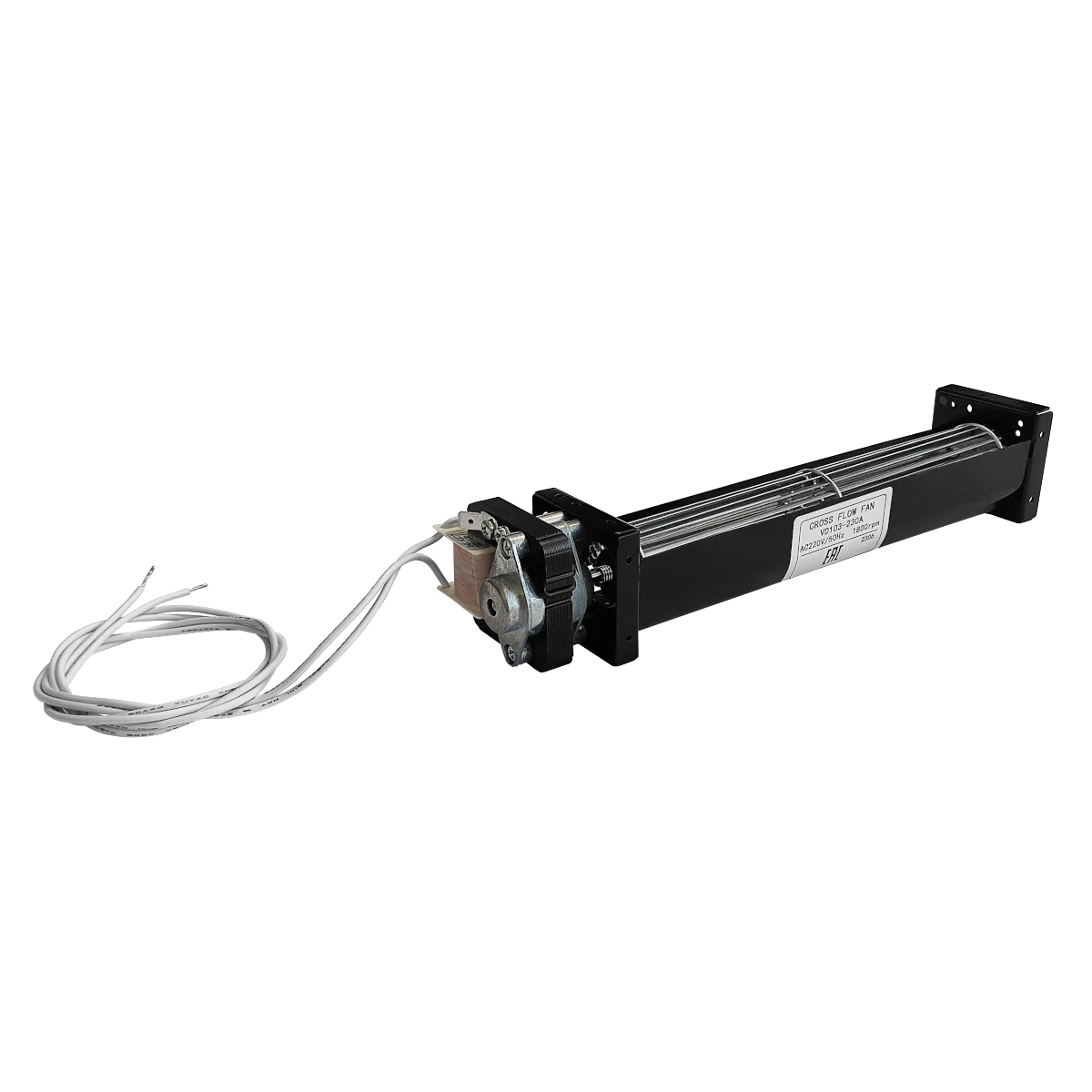

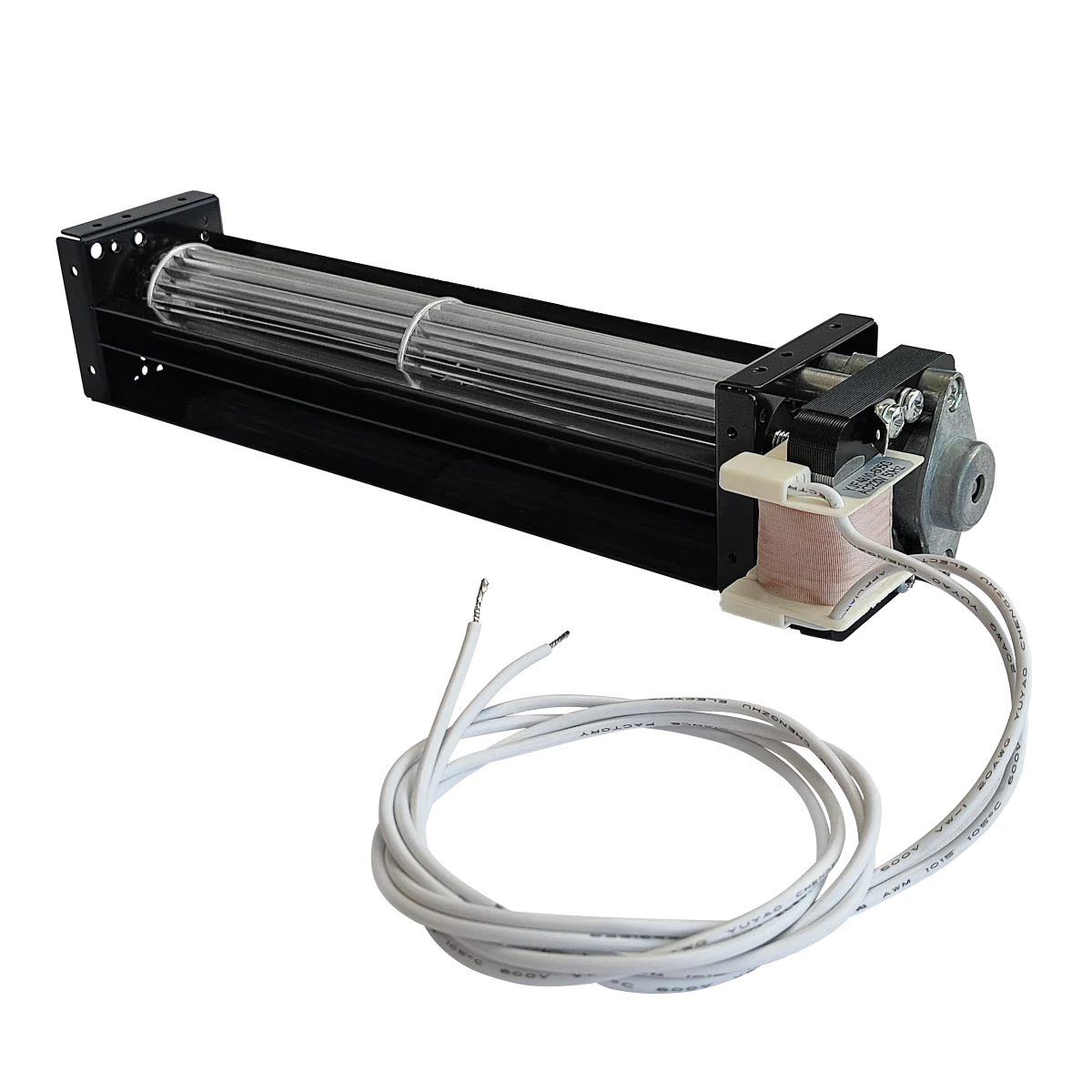

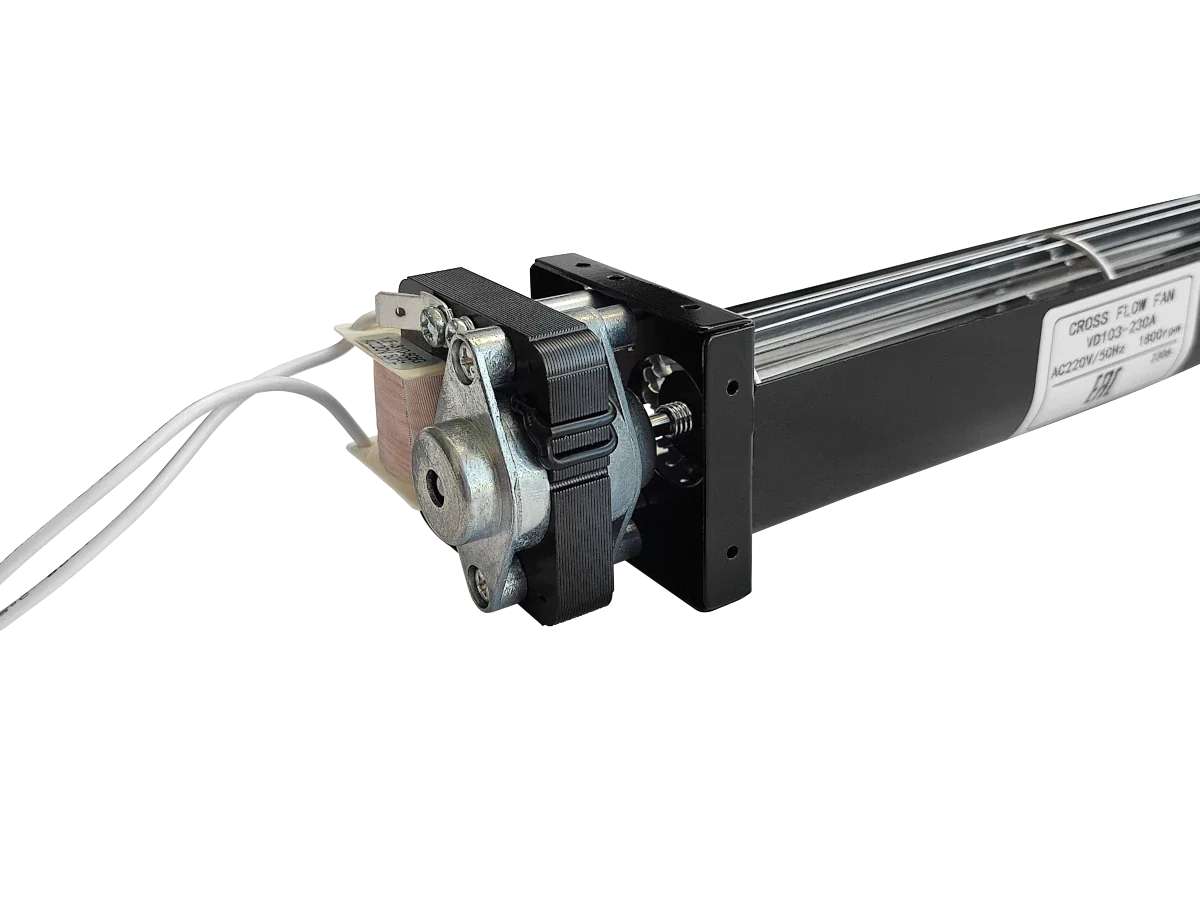

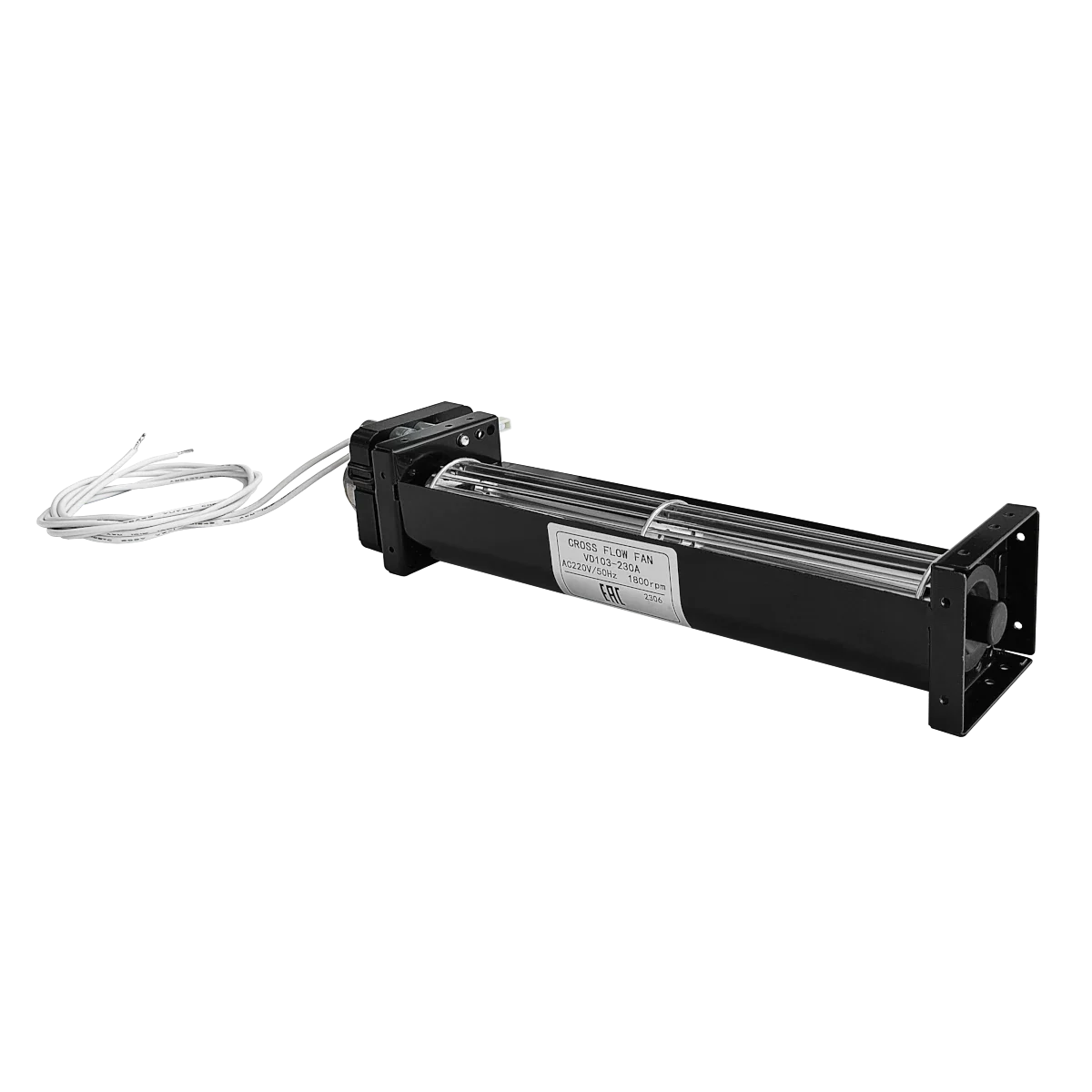

Cross-flow blower VD103-230A
Cross-flow fan VD103-230A with AC brushless type motor.
Rated voltage 220VAC.
Length of the wheel - 190mm.
Max air flow 30 m³/h.
$31.74
Available: 21 pcs
 pcs

Technical characteristics

Wheel diameter30 mm
Length of the wheel190 mm
Rated voltage220V AC
Speed1800 rpm
Max air flow30 m³/h
Motor IP classIP20
Insulation classB
Connection2 lead wire, length 700±20mm

Dimensions

Dimensions of cross flow fan VD103-230A
