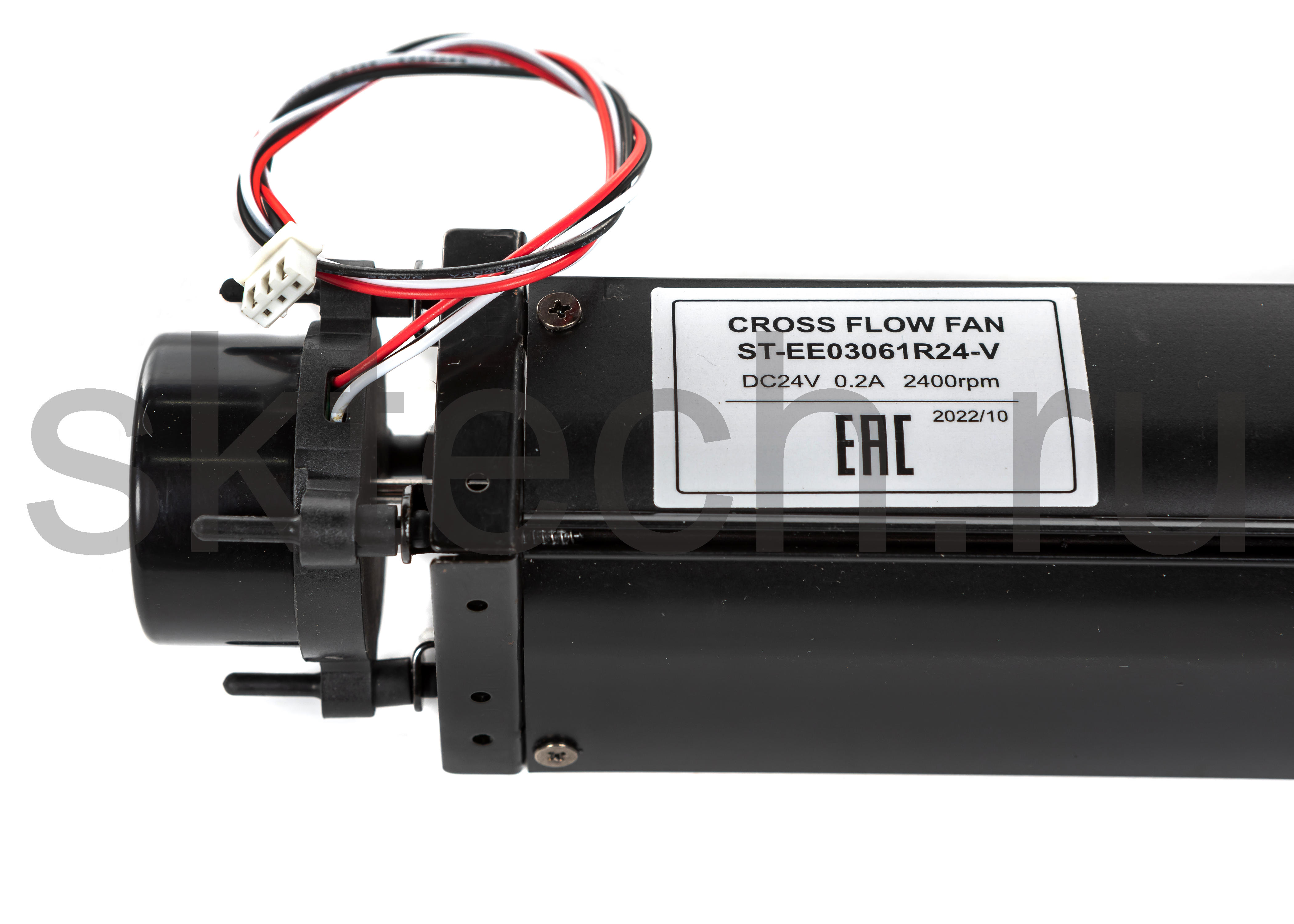

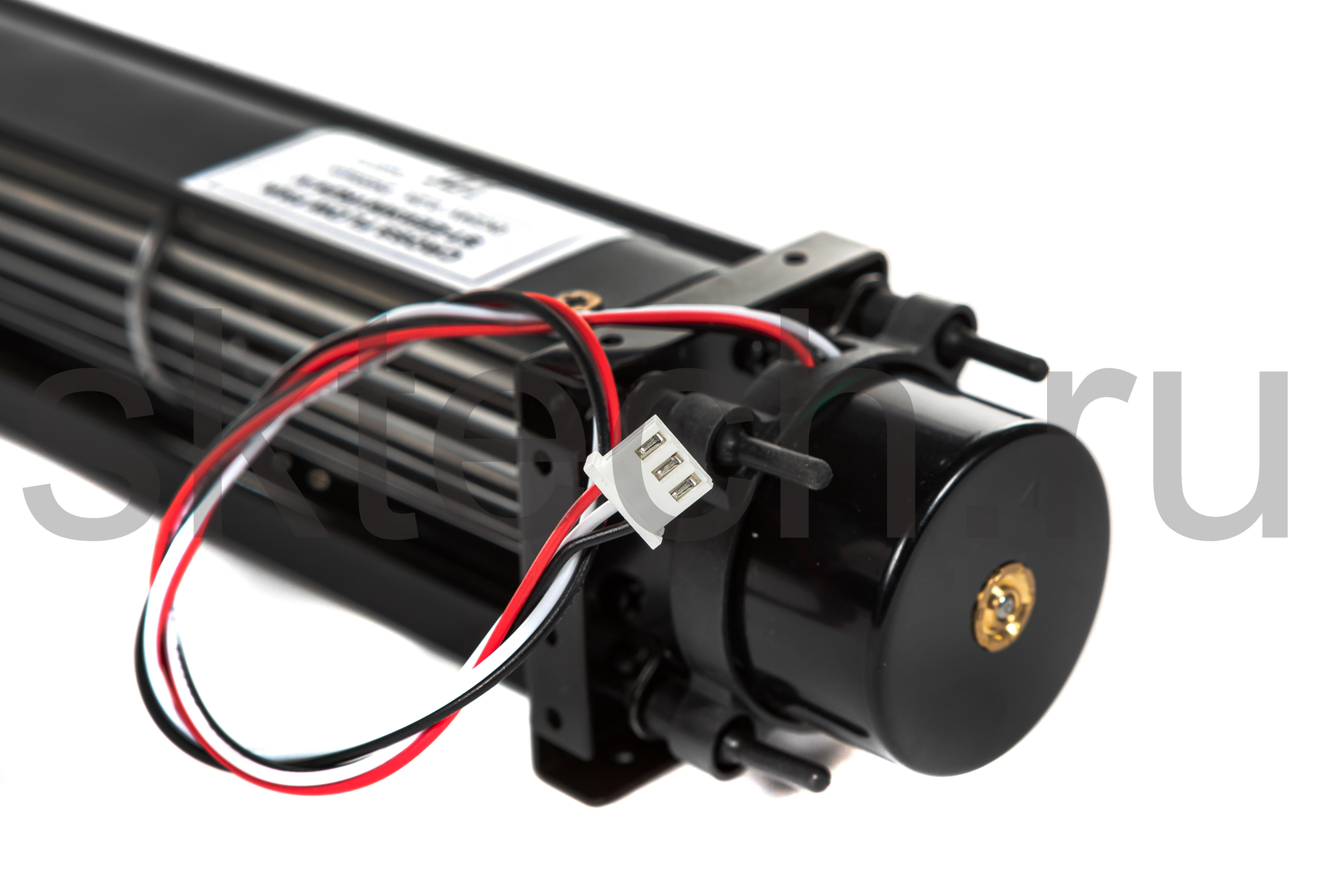

Cross-flow blower ST-EE03061R24-V with control voltage

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 011.009.061

Cross flow fan ST-EE03061R24-V with speed regulation by means of control voltage. DC motor can be used to create an airflow in devices responsible for climate-control.
Rated voltage 24VDC.
Width of the airflow - 610mm.
Max air flow 112 m³/h.
Control voltage range 0...10V (actual speed adjustment within range 3...8V).

☎ Price by call

Technical characteristics

Wheel diameter	30mm
Air flow width	610mm
Rated operational voltage	24VDC
Speed control	0...10V voltage control (actual speed adjustment within range 3...8V)
Speed	2400rpm
Current	0.2A
Static pressure	12Pa
Max air flow	112m³/h
Noise level	40 dB(A)
Connection	3 lead wire, length 330mm (UL1007#24AWG)

Dimensions

Wiring diagram

Similar or replacement products ST-EE03061R24-V

ES-EE03061R24-V

VD112-24D-G
