Compact axial fan AC-16062HBW-220

  • Model: 011.020.205
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7
  • photo 8
  • photo 9
  • photo 10
−38%
Axial fan AC-16062HBW-220
Manufacturer: Essima
Axial compact fan AC-16062HBW-220 with supply voltage 220VAC is suitable to use in ventilation systems, filters, fan heaters, etc. Frame material - aluminum alloy, impeller - PBT thermoplastic. Max airflow 441m³/h.
$21.50 $34.69
 pcs

Technical data

Supply voltage220...240 VAC
Frequency50/60Hz
Input power32W
Rated current0,15A
Speed2750/3000 rpm
Airflow441/509 m³/h
Mounting typehorizontal or vertical
Insulation classB
Bearingsball bearings
Connectionlead wires AWG22, length 540mm
Operating temperature-10°C...+65°C
Capacitor1μF/500V
Noise level54/59 dB(A)

Dimensions

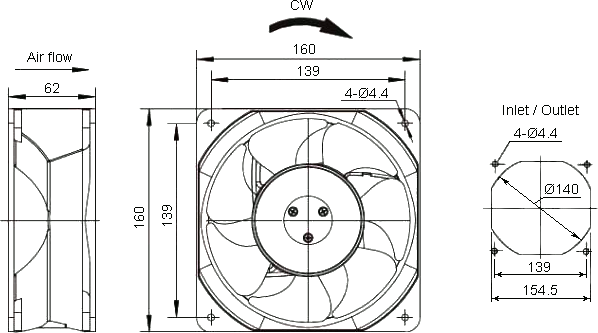

Compact axial fan AC-16062HBW-220 dimensions
