Axial single-phase sucking fan YWF4E-550S-137/50-G

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 011.017.224

Manufacturer: Weiguang

Axial fan YWF4E-550S-137/50-G on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc. Connection by means of terminal box.
— Diameter of fan is 550 mm;
— Input power - 550W;
— Voltage 220V/50Hz;
— Speed - 1300 rpm;
— AirFlow - 8173 m³/h.

$113.43

Available: 39 pcs

Main characteristics

Input power	550 W
Voltage	220 V
Frequency	50 Hz
Noise level	72 dB
Operating current	2.55 A
Air flow at 20 Pa	8173 m³/h
Capacitor	12 μF
Speed	1300 rpm
Insulation class	F
Motor protection	Thermocontact 150±5°C
Degree of protection	IP54
Ambient temperature	-30...+60 °C
Bearings	ball bearings

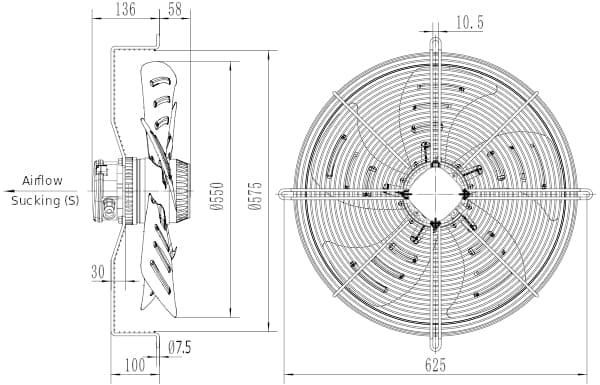

Dimensions

Air flow curve

Wiring diagram

Marking decoding YWF-4E-350-S-102/34-G:

YWF – external rotor fan series;
4 – motor poles;
Е – motor type:
E - single phase capacitor operation;
D - three phases asynchronous operation;
350 – the diameter of the fan blade;
S – air direction:
S - sucking;
B - blowing;
102 – the diameter of the rotor;
34 – the thickness of laminated core;
G – characteristics of the fan motor:
G - grid;
B - square frame.
