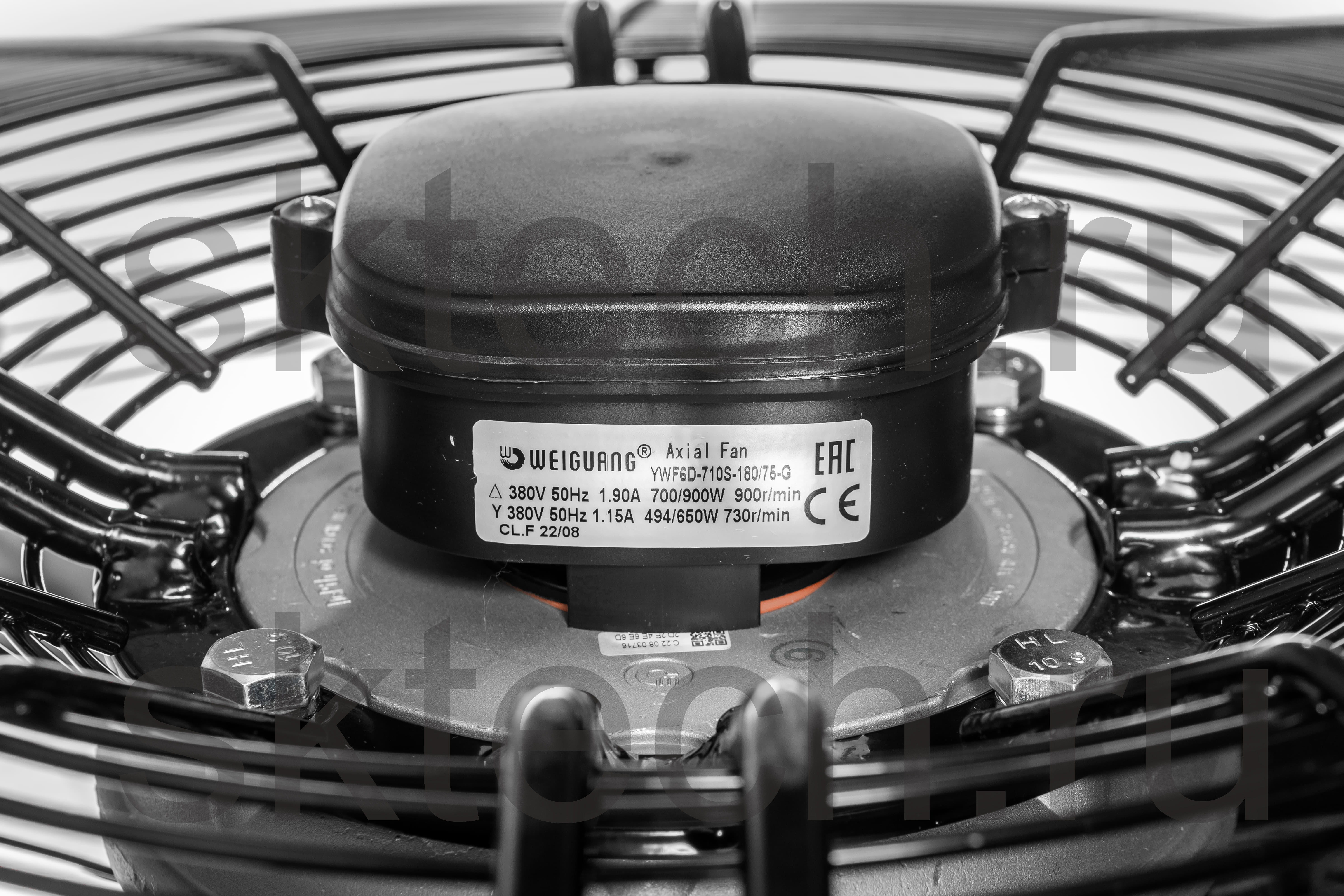

Axial fan YWF6D-710S-180/75-G, sucking

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 011.014.284

Manufacturer: Weiguang

Axial fan YWF6D-710S-180/75-G on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc.
− Diameter of fan is 710 mm;
− Input power - 900/650 W;
− Voltage 380V/50Hz;
− Speed - 900/730 rpm;
− AirFlow at 20Pa - 14500/12015 m³/h.

$241.52

Specification

Rated voltage	380VAC
Frequency	50 Hz
Rated current	1.9 A - Δ 1.15 A - Y
Input power	900 W - Δ 650 W - Y
Speed	900 rpm - Δ 730 rpm - Y
Air volume at 20Pa	14500 m³/h - Δ 12015 m³/h - Y
Noise level	73 dB(A) - Δ 72 dB(A) - Y
Operating temperature	-30°C...+60°C
Insulation class	F
Bearings	ball bearings
Motor protection	thermocontact (150±5)°C
Electrical connection	lead wire 7G 1,31mm² + 2G 0,35mm² length 100mm in terminal box connected
Direction of rotation	clockwise (CW) looking into the end shield

Wiring diagram

Air flow curves

Dimensions
