Axial fan YWF4E-350B

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 011.017.232

Manufacturer: Weiguang

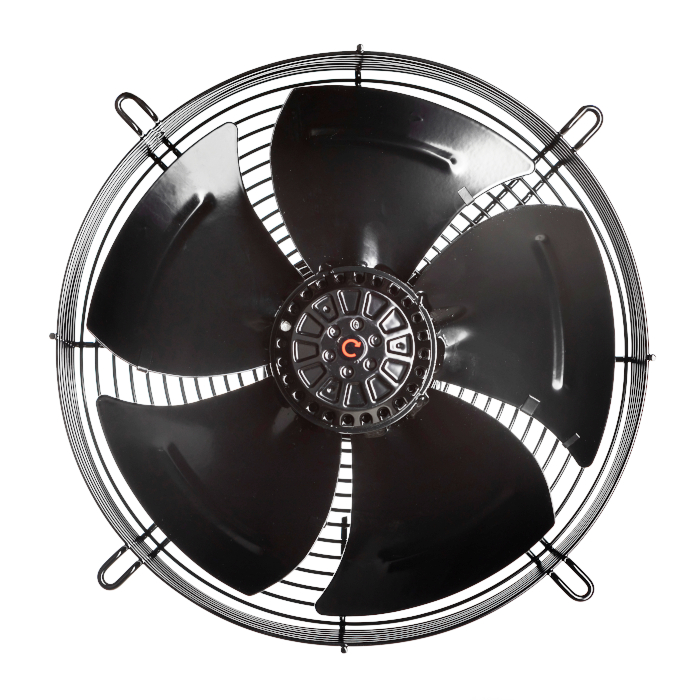

Axial fan YWF4E-350B on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc. Connection by means of terminal box.
− Diameter of fan is 350 mm;
− Input power - 135W;
− Voltage 220V/50Hz;
− Speed - 1380 rpm;
− Max AirFlow -2670 m³/h.

$48.35

Main characteristics

Input power (W)	130
Voltage (V)	220
Frequency (Hz)	50
Noise level (dB)	58
Operating current (A)	0.6
Air flow (m³/h)	2670
Capacitance (μF)	4
Speed (rpm)	1 450
Warranty period	6 months

Air flow curve

Wiring diagram

Dimensions

YWF series single-phase 4-pole blowing fans model range

Model	Voltage, V	Frequency, Hz	Input power, W	Speed, rpm	Noise level, dB	Max air flow, m³/h
YWF4E-250B	220	50	50	1380	55	860
YWF4E-300B	220	50	90	1350	54	1650
YWF4E-315B	220	50	95	1380	61	1845
YWF4E-350B	220	50	135	1380	58	2670
YWF4E-400B	220	50	180	1380	67	3830
YWF4E-450B	220	50	250	1350	69	5365
YWF4E-500B	220	50	380	1320	71	7155
YWF4E-550B	220	50	550	1300	72	8510
YWF4E-600B	220	50	700	1360	74	10040
YWF4E-630B	220	50	750	1360	75	11435

Similar or replacement products YWF4E-350B

YWF4E-350B-102/34-G
