Axial single-phase blowing fan YWF4E-315B-92/35-G

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 011.017.247

Manufacturer: Weiguang

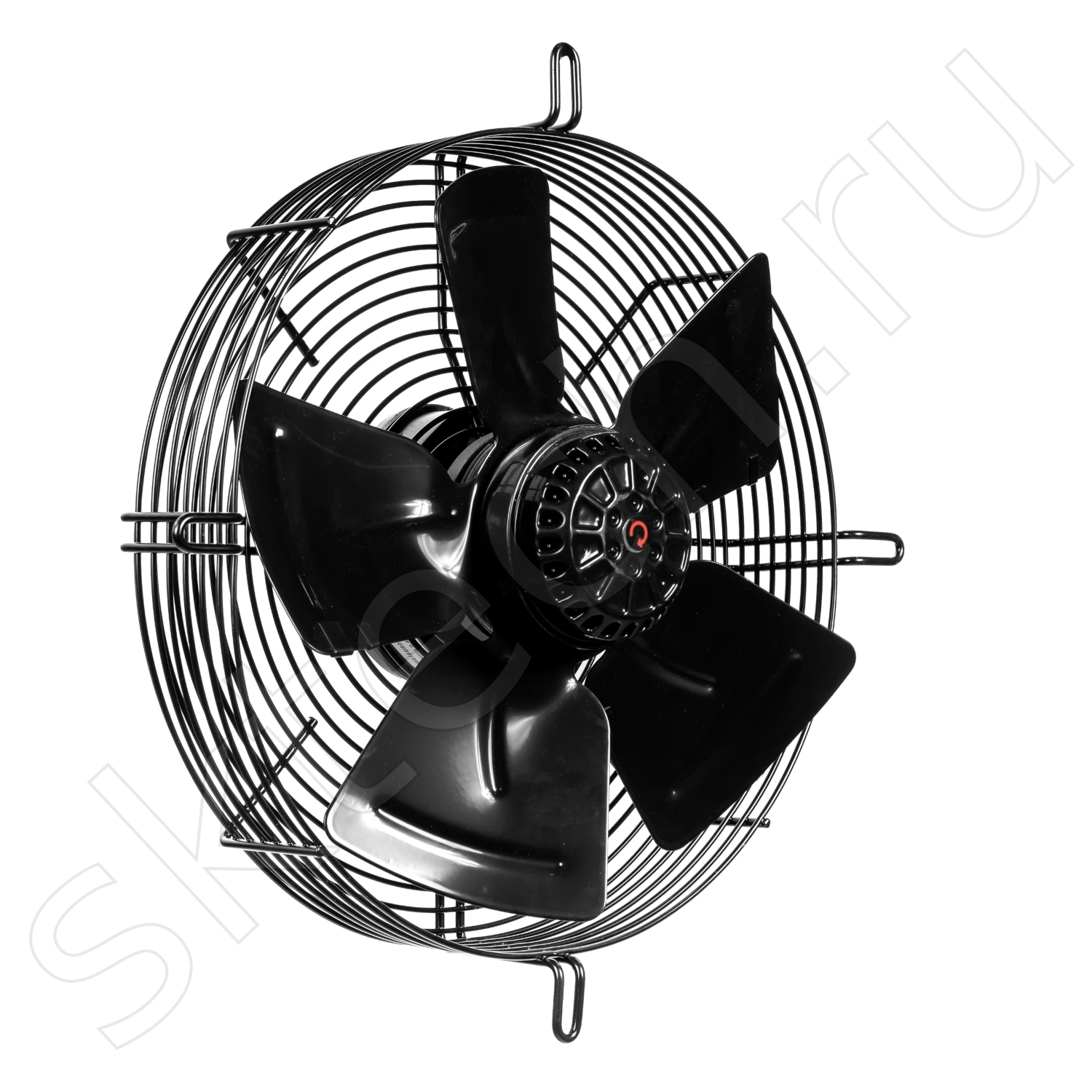

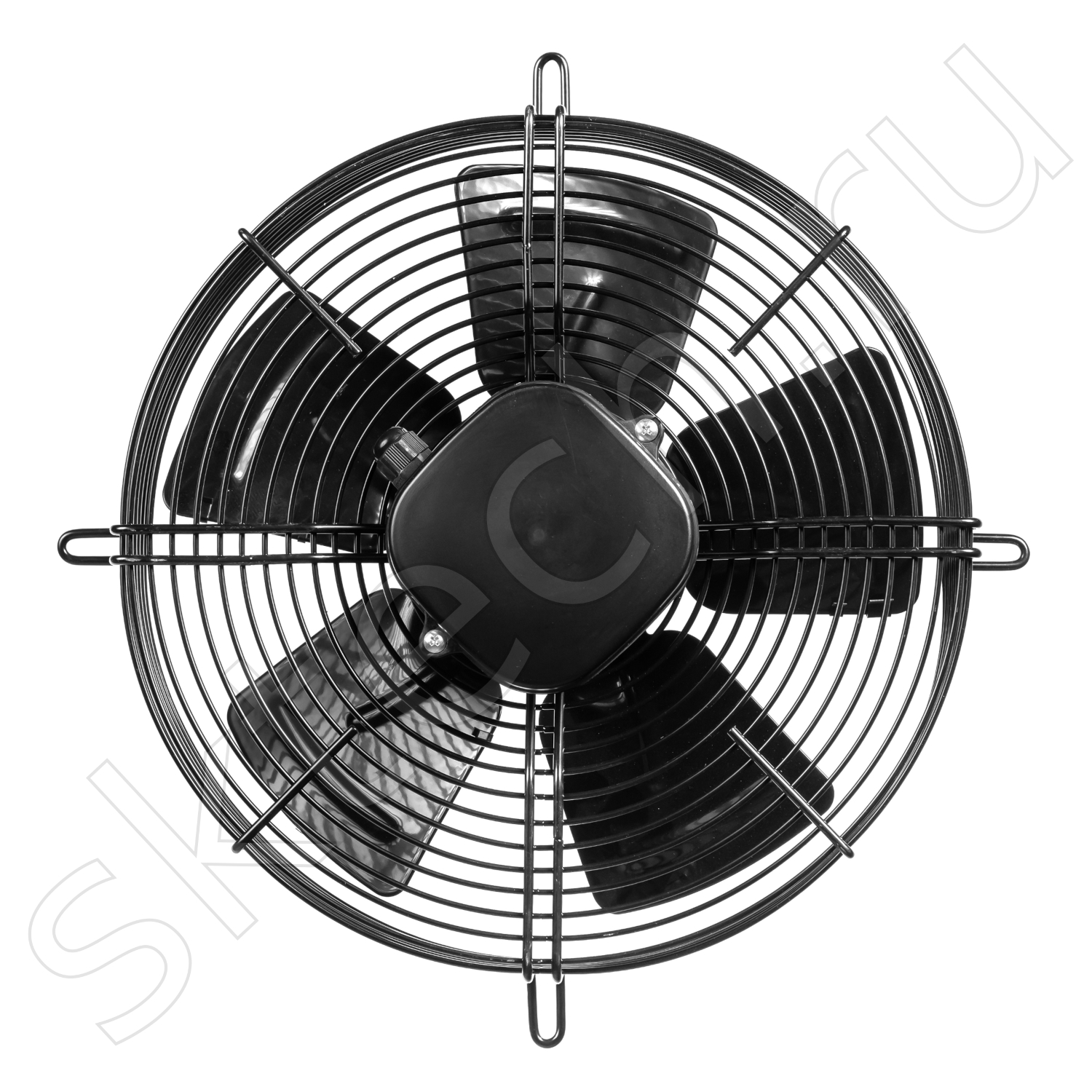

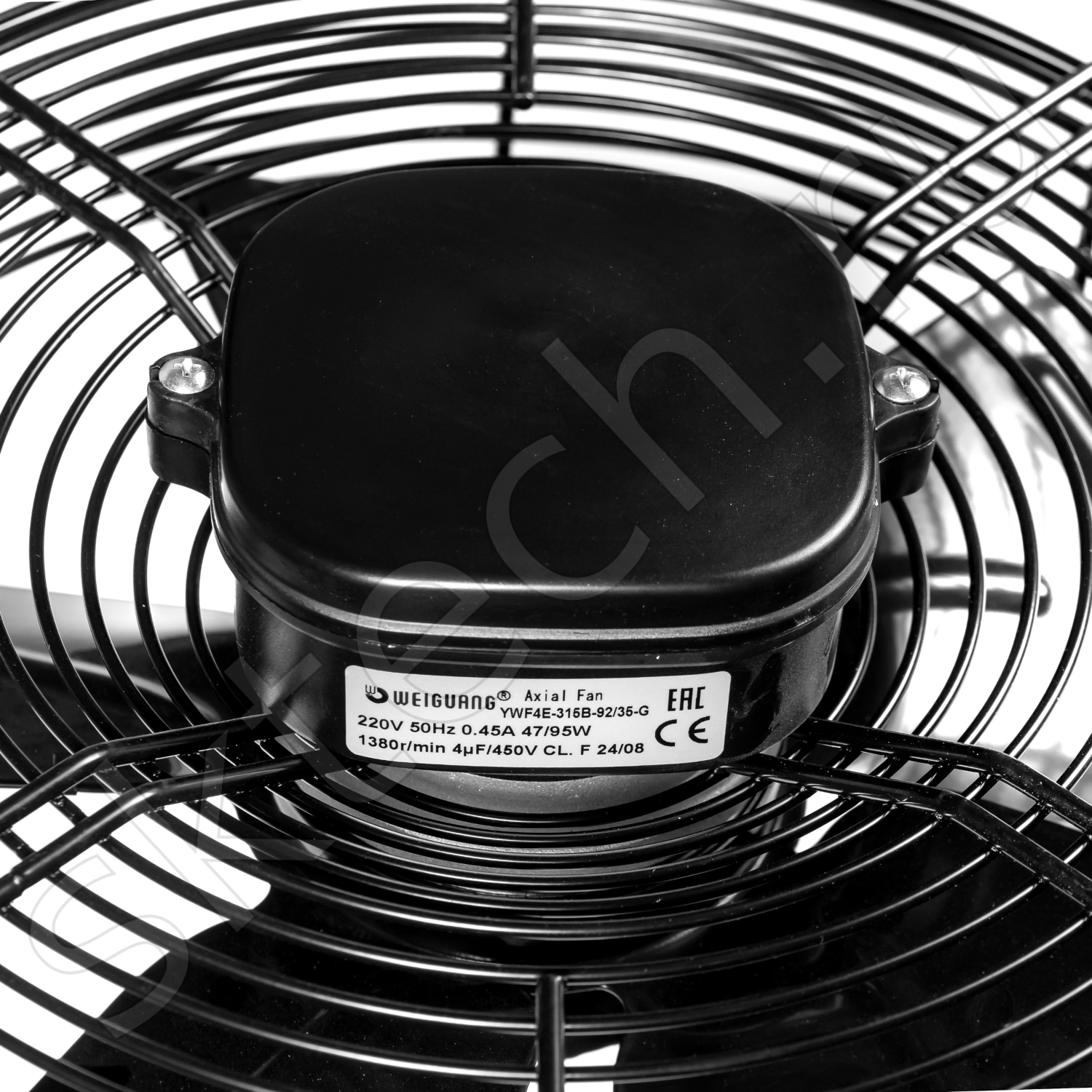

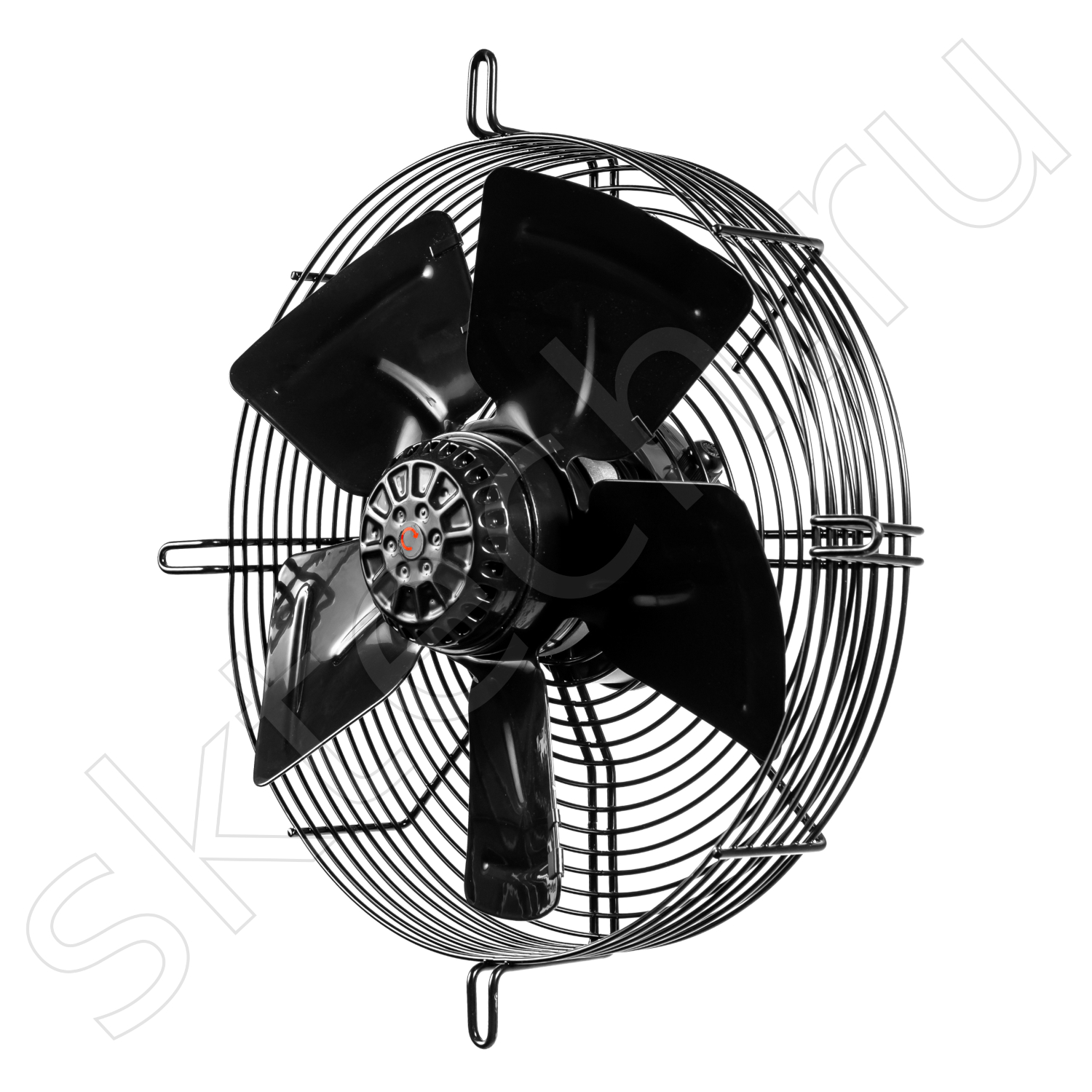

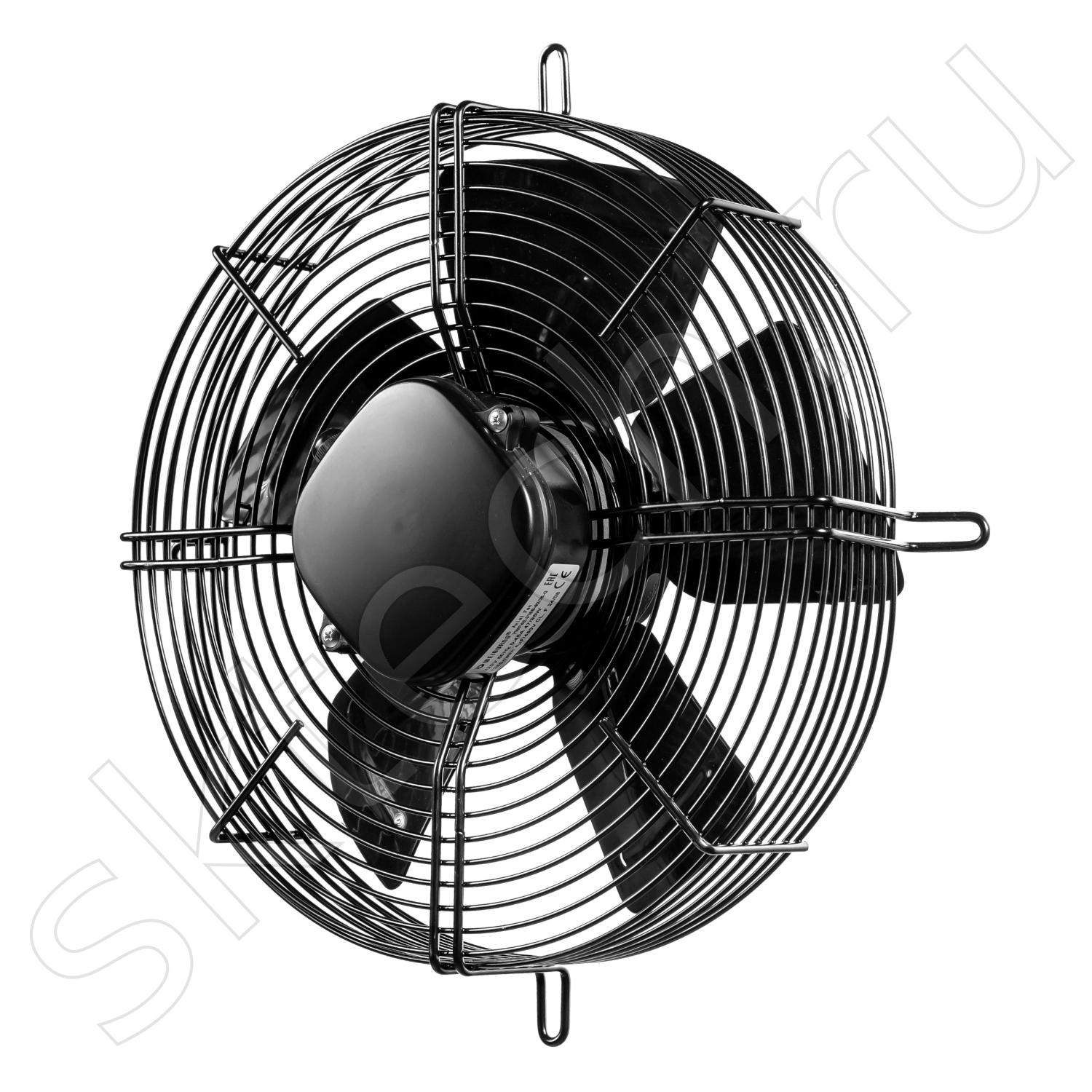

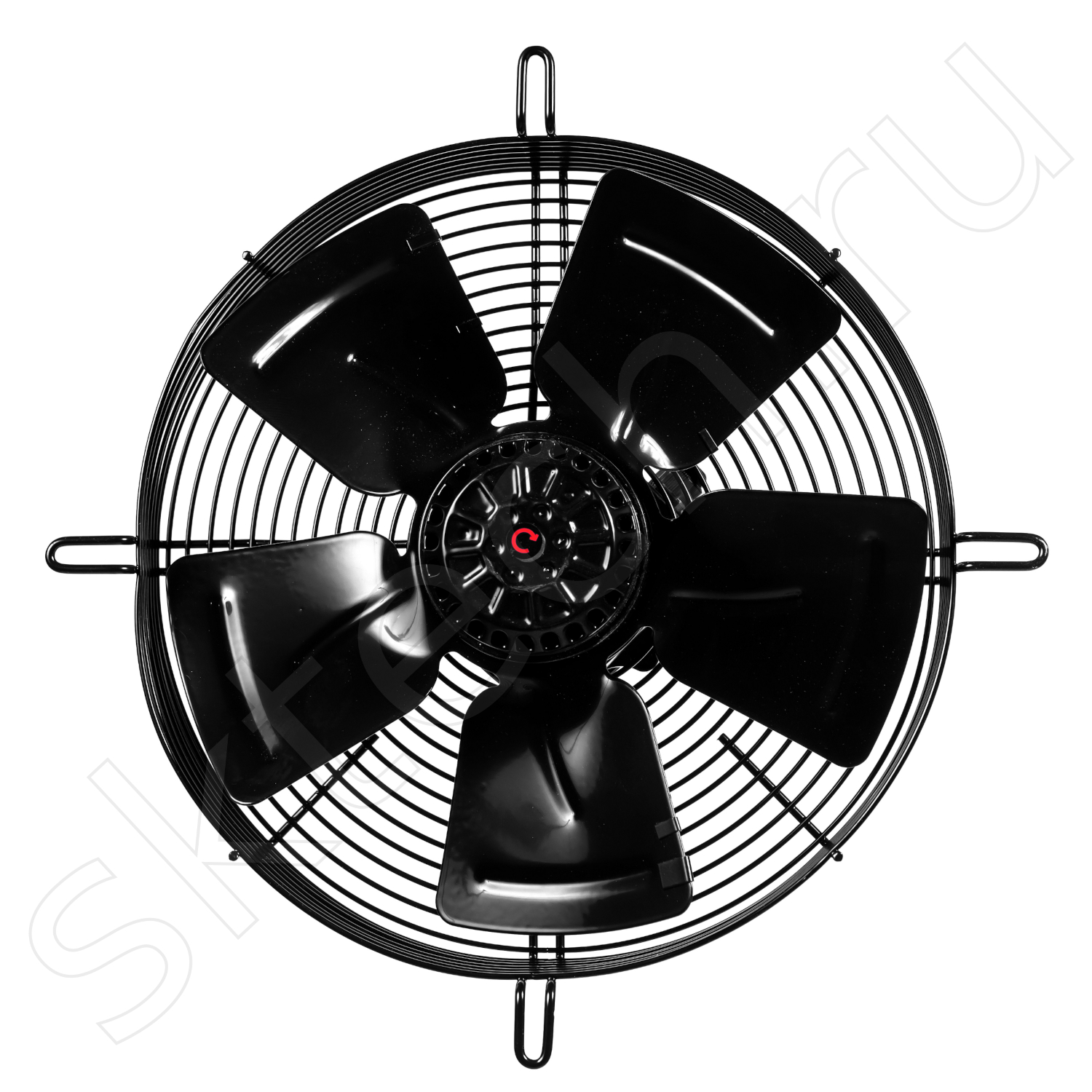

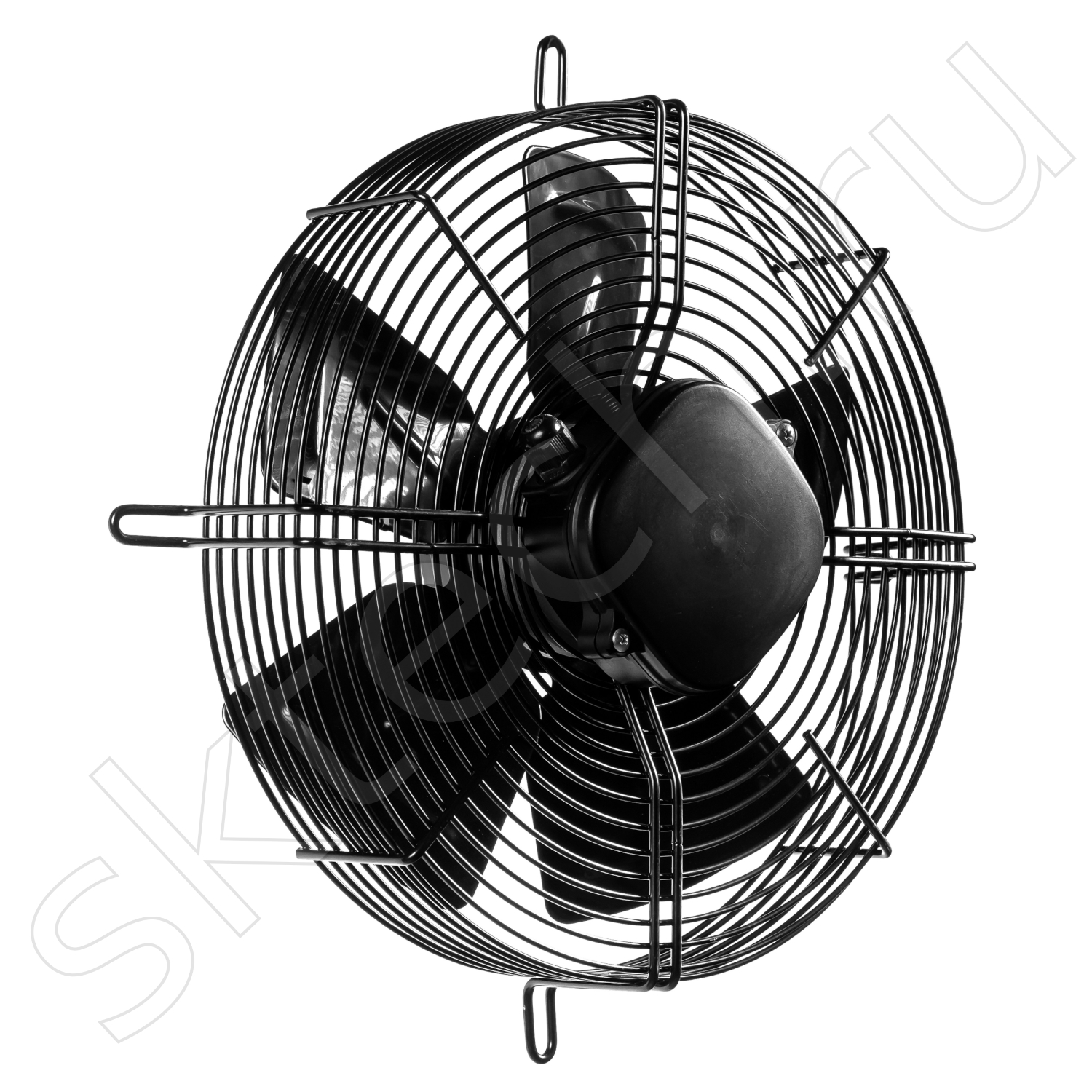

Axial fan YWF4E-315B-92/35-G on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc.
— Diameter of fan is 315 mm;
— Input power - 95W;
— Voltage 220V/50Hz;
— Speed - 1380 rpm;
— AirFlow - 1635 m³/h.

$34.14

Main characteristics

Input power	95 W
Voltage	220 V
Frequency	50 Hz
Noise level	61 dBA
Operating current	0.45 A
Air flow at 20 Pa	1635 m³/h
Capacitor	4 μF
Speed	1380 rpm
Insulation class	F
Motor protection	Thermocontact 150±5°C
Degree of protection	IP54
Ambient temperature	-30...+60 °C
Operating type	S1
Bearings	ball bearings

Dimensions

Air flow curve

Wiring diagram

Marking decoding YWF-4E-350-S-102/34-G:

YWF – external rotor fan series;
4 – motor poles;
Е – motor type:
E - single phase capacitor operation;
D - three phases asynchronous operation;
350 – the diameter of the fan blade;
S – air direction:
S - sucking;
B - blowing;
102 – the diameter of the rotor;
34 – the thickness of laminated core;
G – characteristics of the fan motor:
G - grid;
B - square frame.
