Axial fan YWF4D-630B-168/65-G blowing

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 011.017.252

Manufacturer: Weiguang

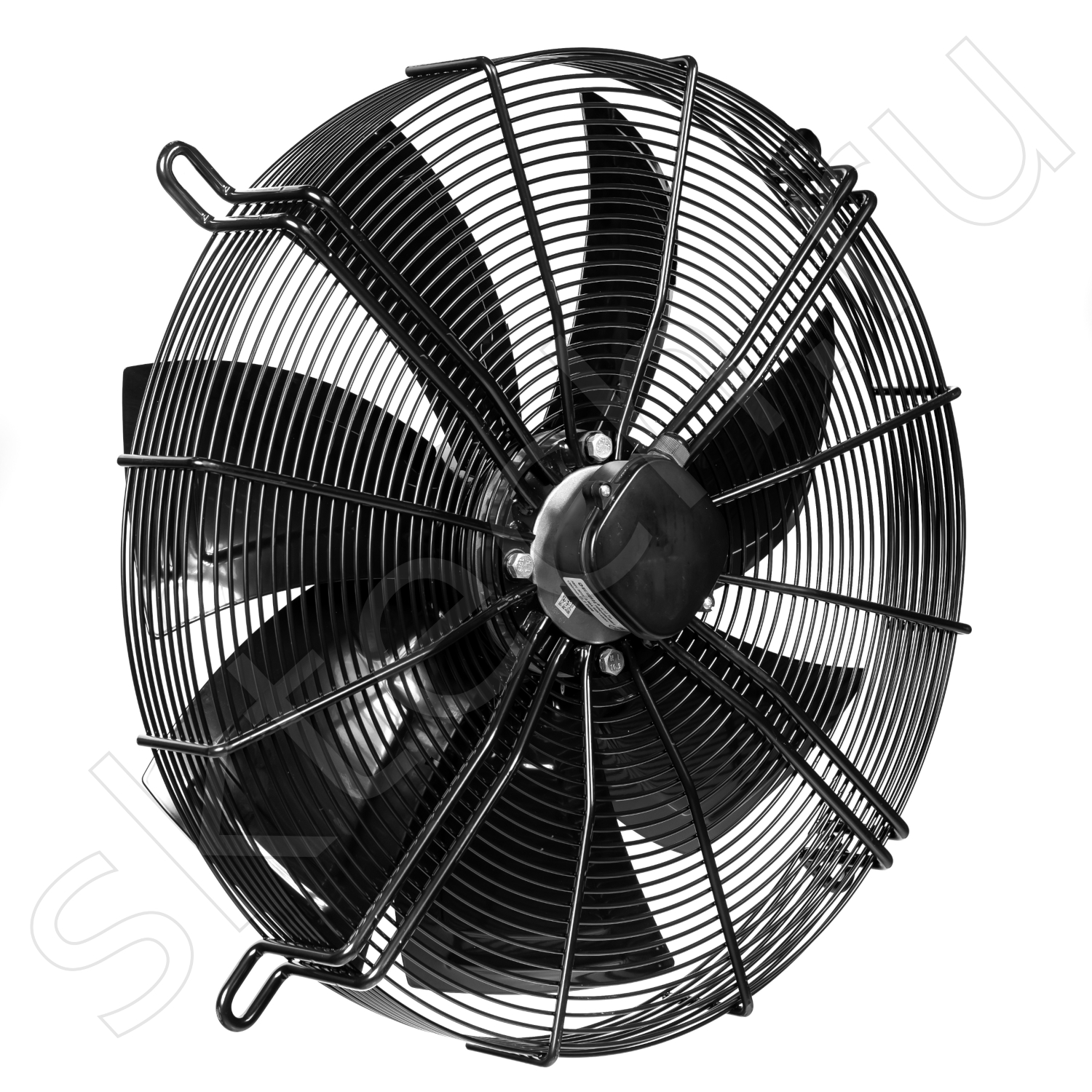

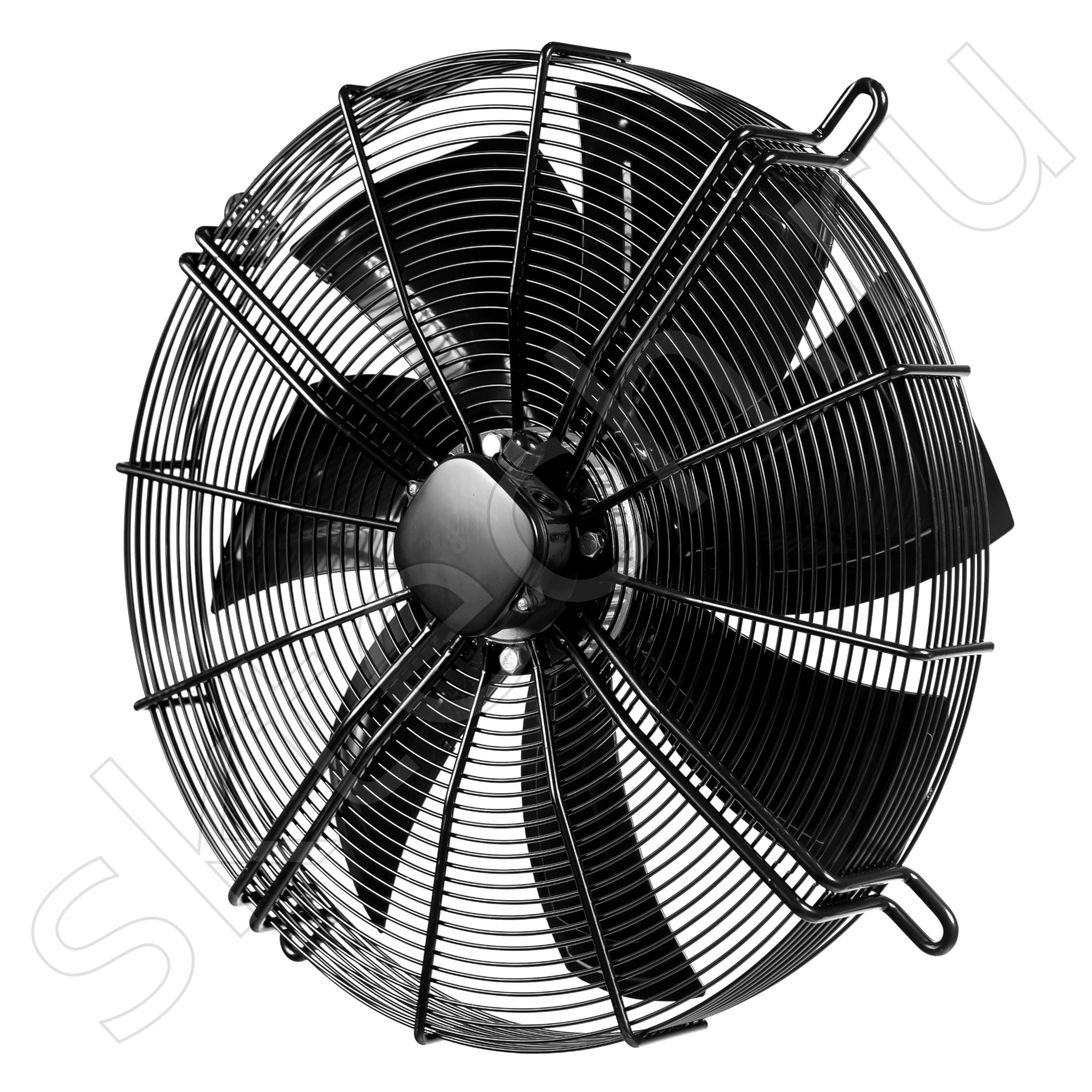

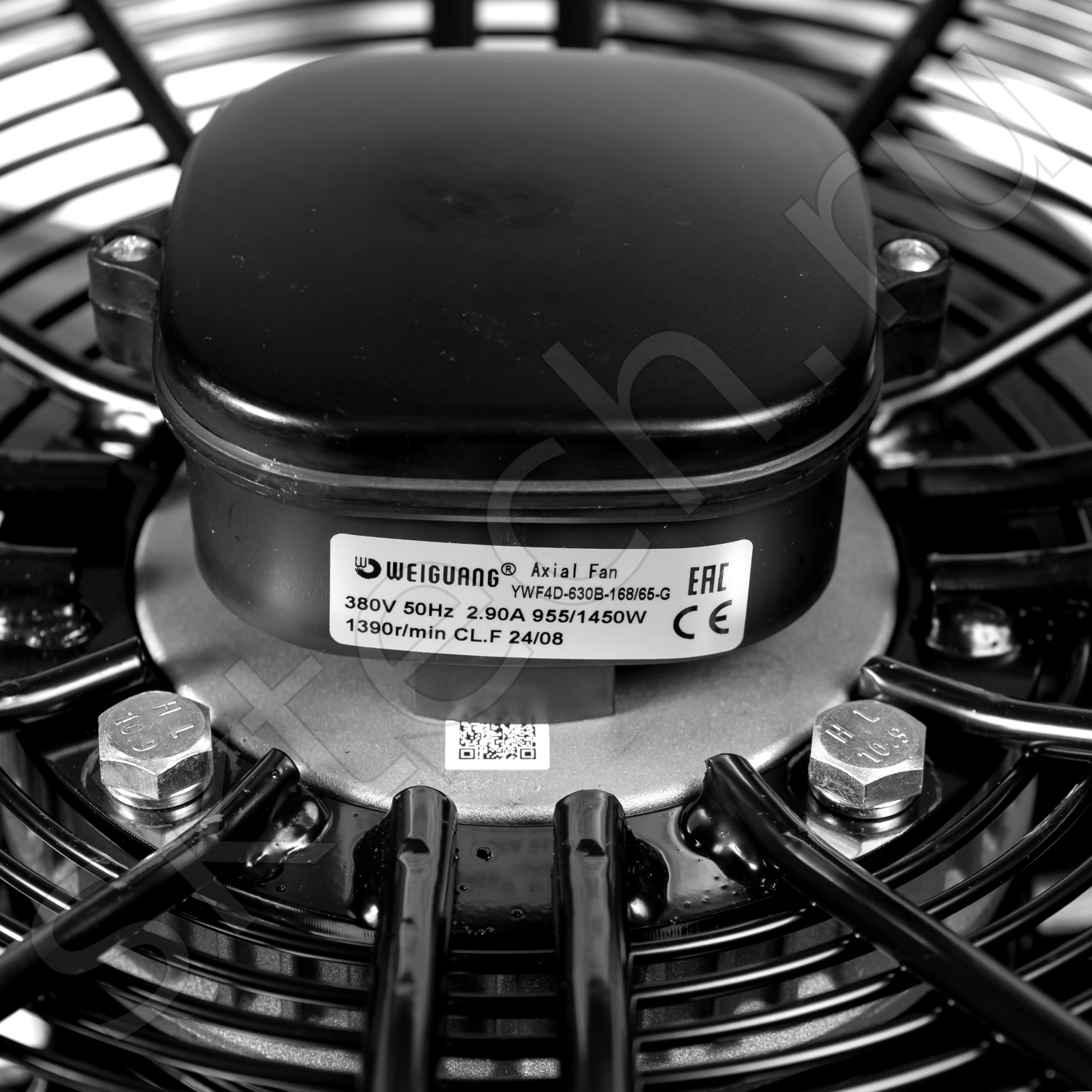

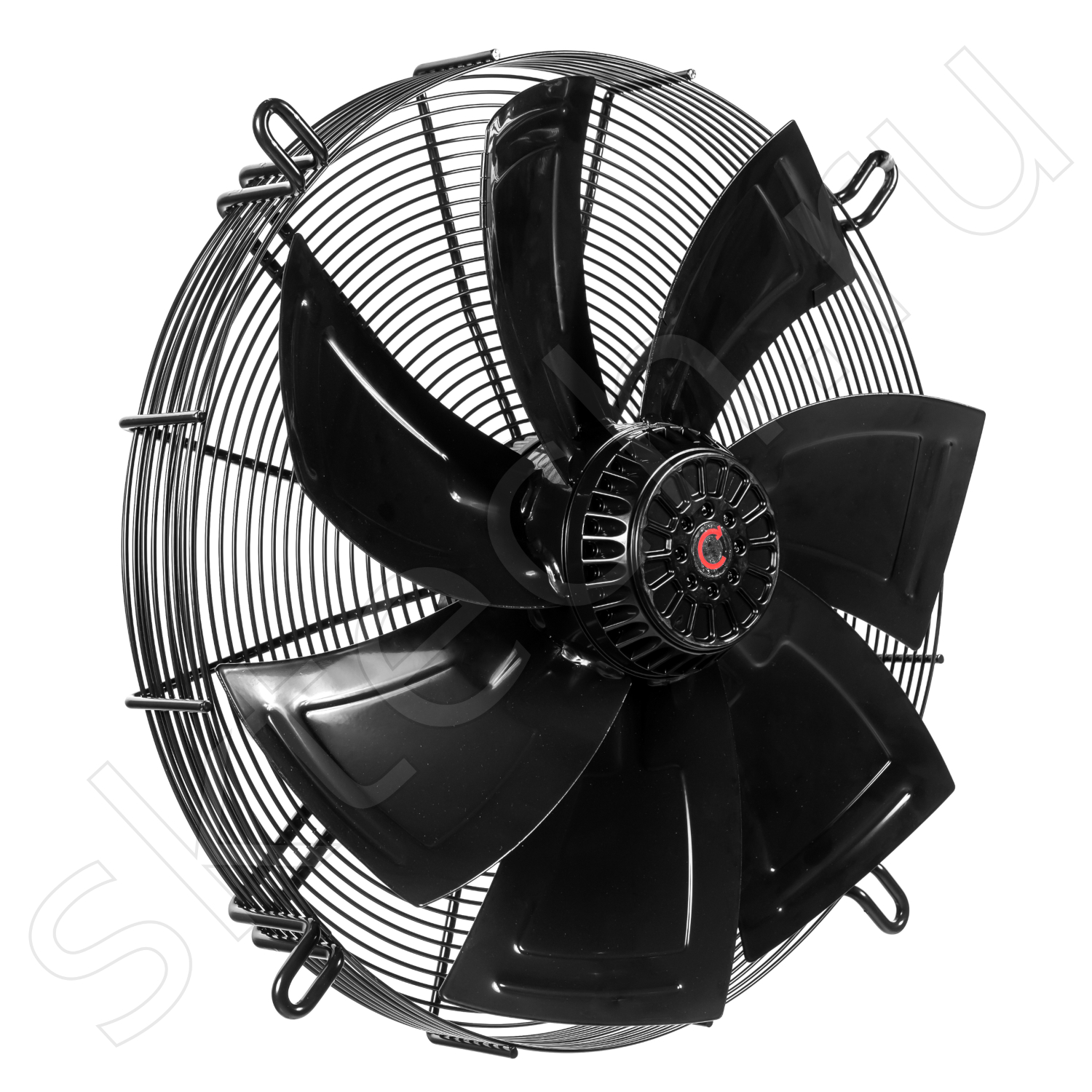

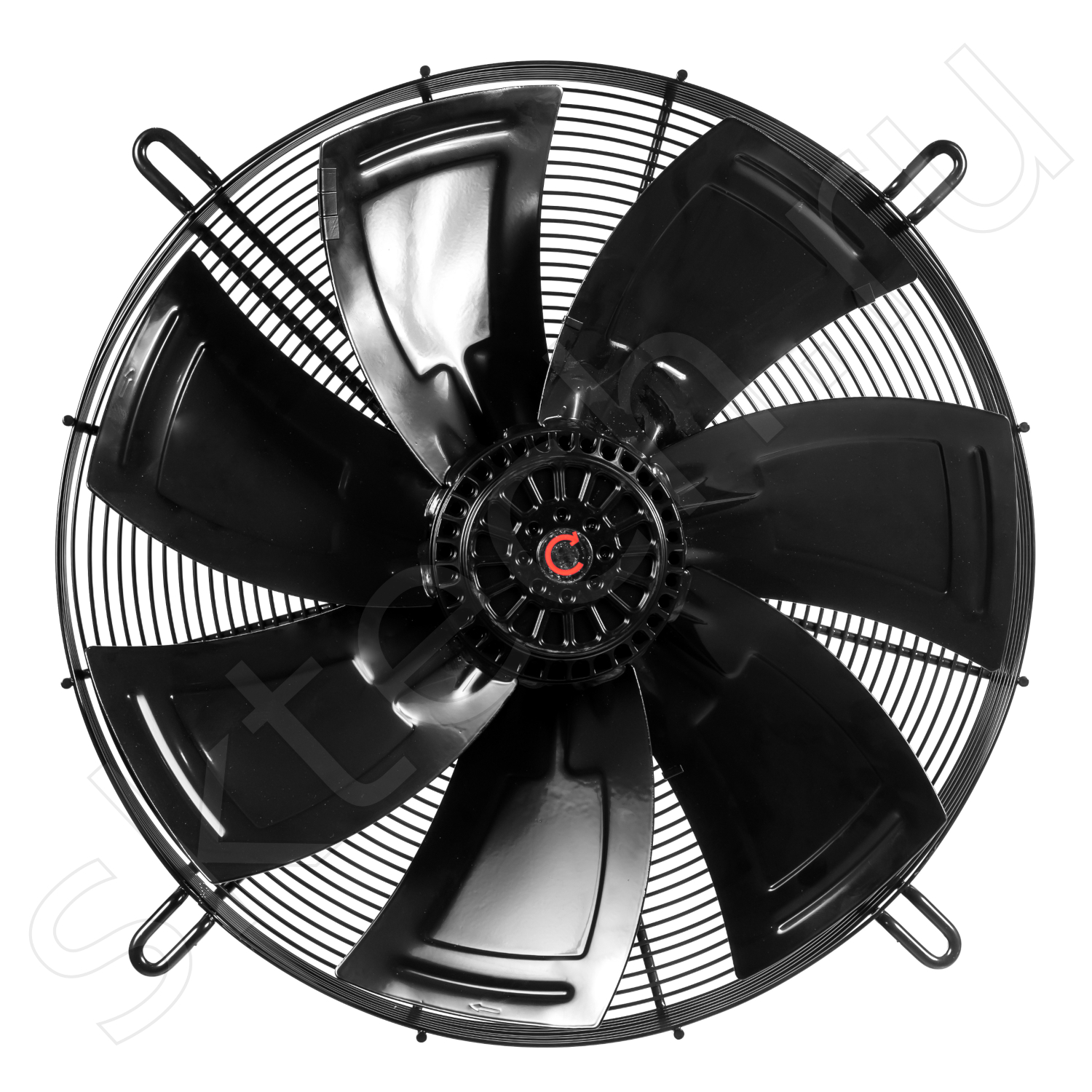

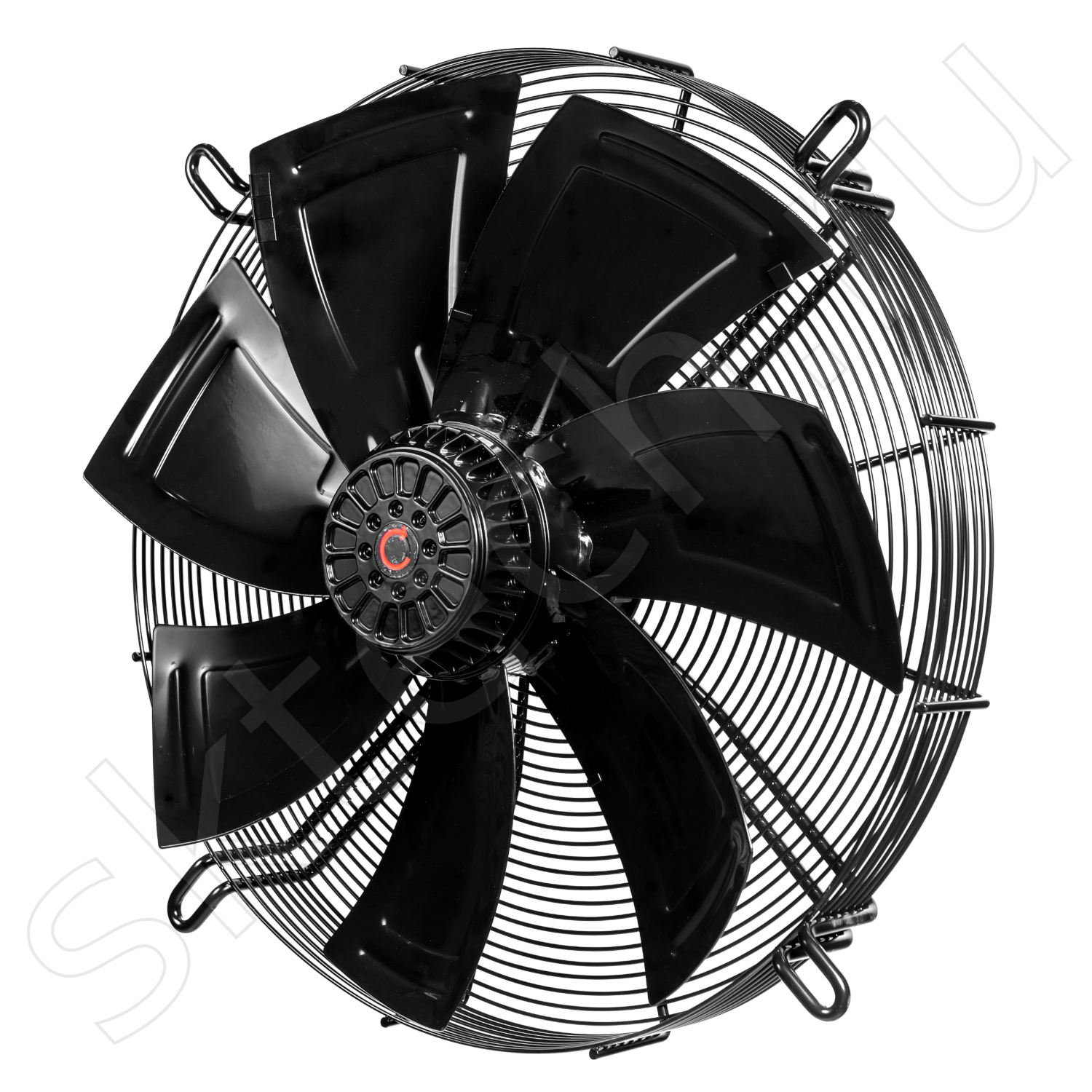

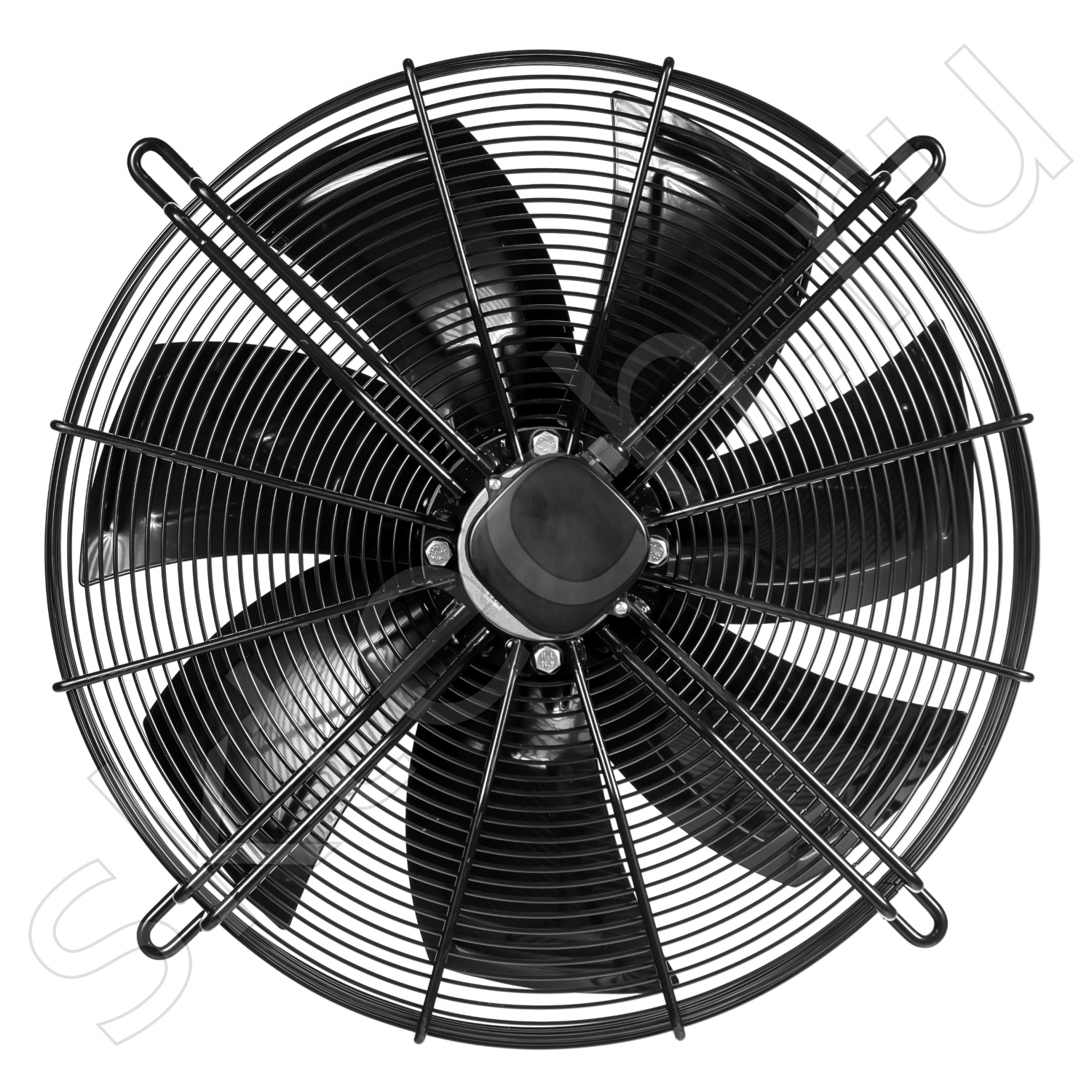

Axial fan YWF4D-630B-168/65-G on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc.
— Diameter of fan is 630 mm;
— Input power - 1450 W;
— Voltage 380V/50Hz;
— Speed - 1390 rpm;
— AirFlow at 20Pa - 15249 m³/h.

$145.39

Available: 43 pcs

Specification

Input power	1450 W
Voltage	380 V
Frequency	50 Hz
Noise level	79 dBA
Operating current	2.90 A
Air flow at 20 Pa	15249 m³/h
Speed	1390 rpm
Insulation class	F
Motor protection	Thermocontact 150±5°C
Degree of protection	IP54
Ambient temperature	-30...+60 °C
Operating type	S1
Bearings	ball bearings

Dimensions

Air flow curves

Wiring diagram

Marking decoding YWF-4E-350-S-102/34-G:

YWF – external rotor fan series;
4 – motor poles;
Е – motor type:
E - single phase capacitor operation;
D - three phases asynchronous operation;
350 – the diameter of the fan blade;
S – air direction:
S - sucking;
B - blowing;
102 – the diameter of the rotor;
34 – the thickness of laminated core;
G – characteristics of the fan motor:
G - grid;
B - square frame.
