Axial three-phase blowing fan YWF4D-250B-92/25-G

Model: 011.017.246
  • photo 3
  • photo 4
  • photo 5
  • photo 6

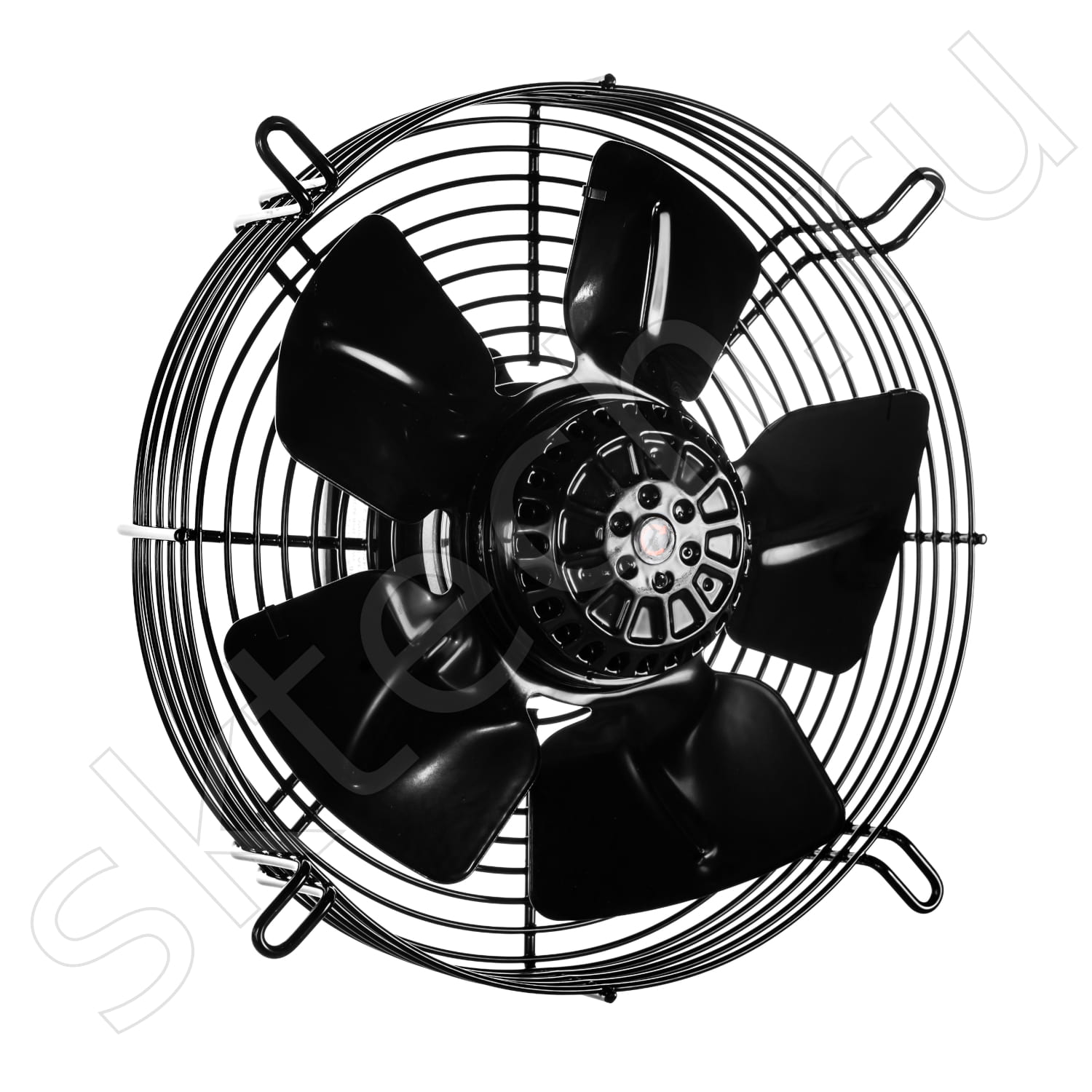

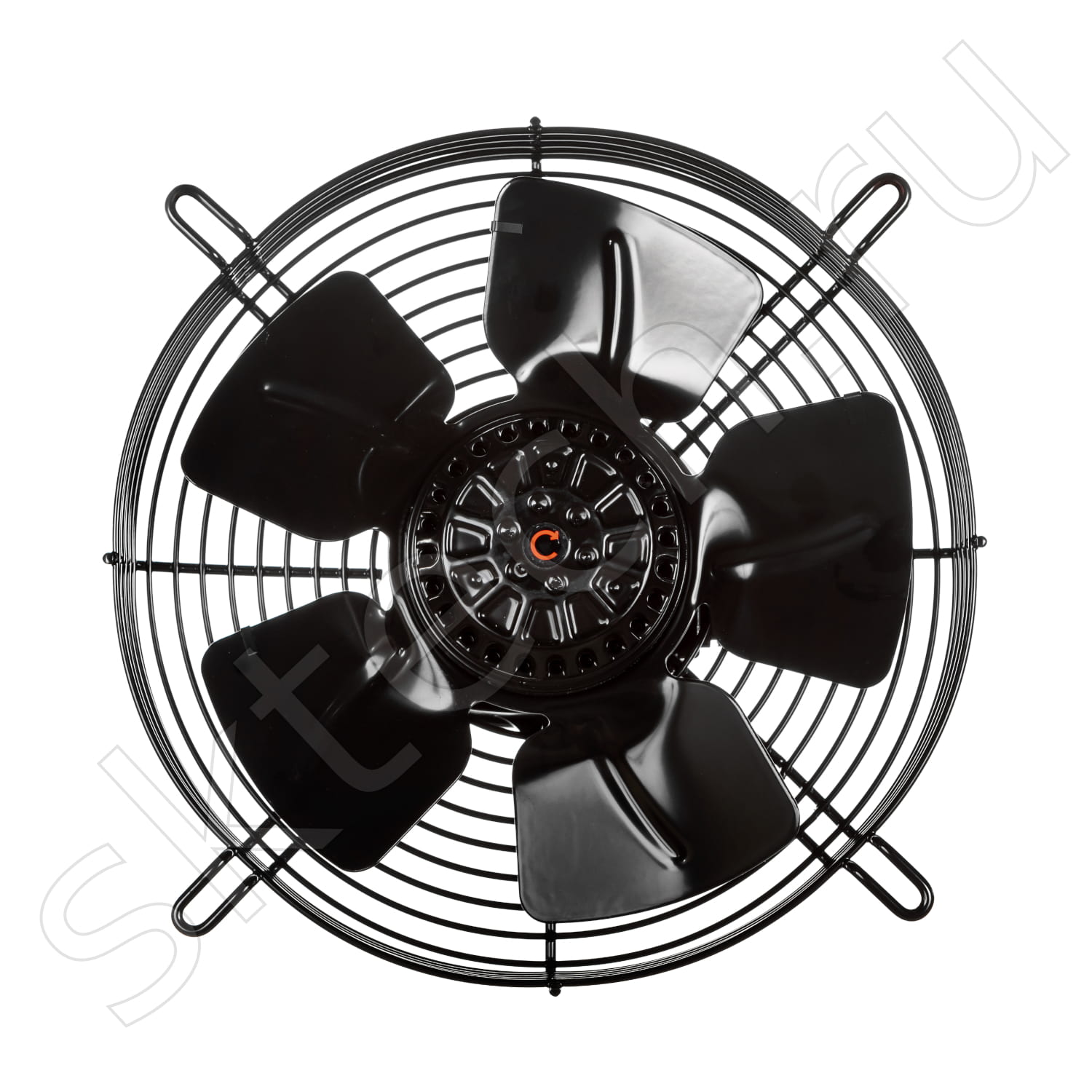

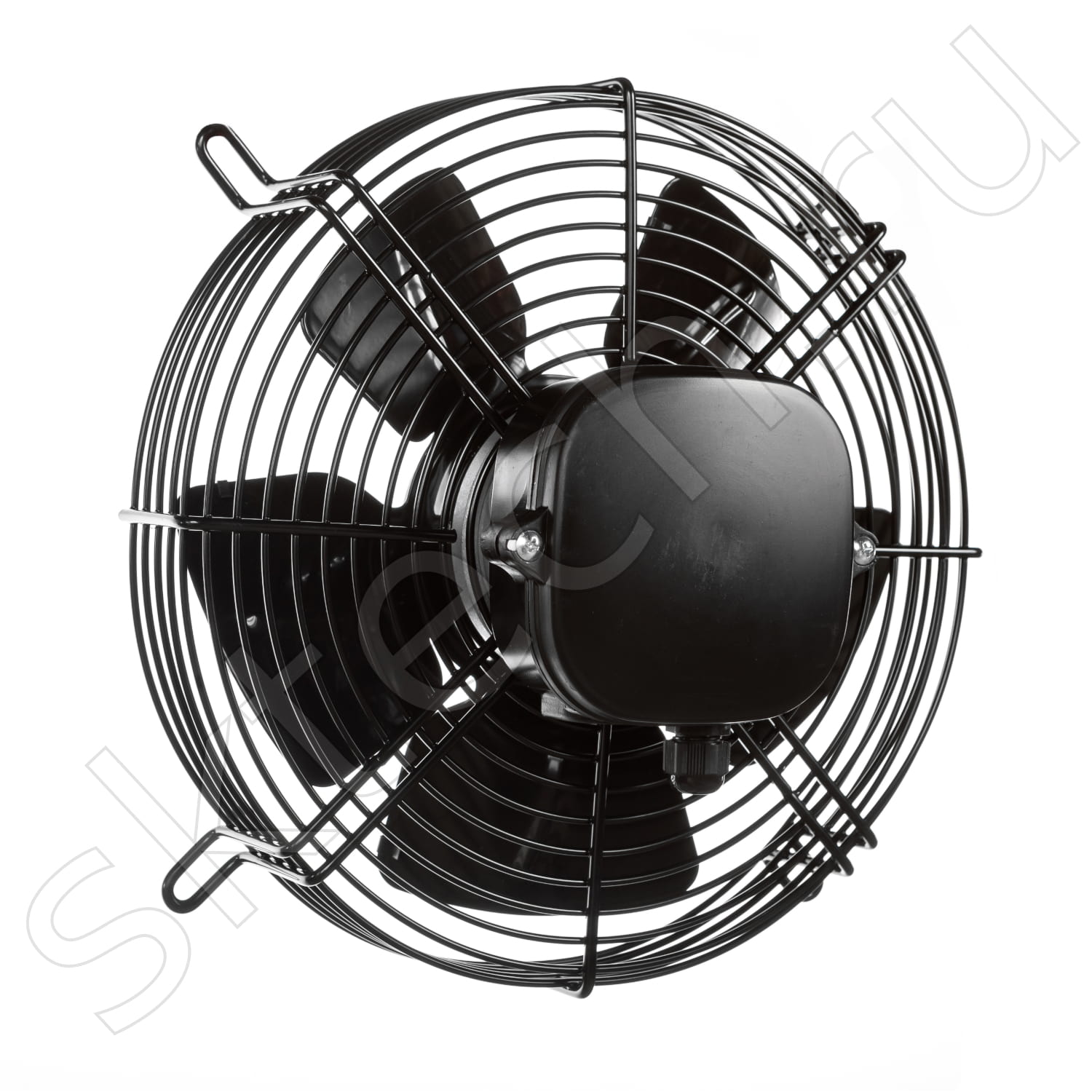

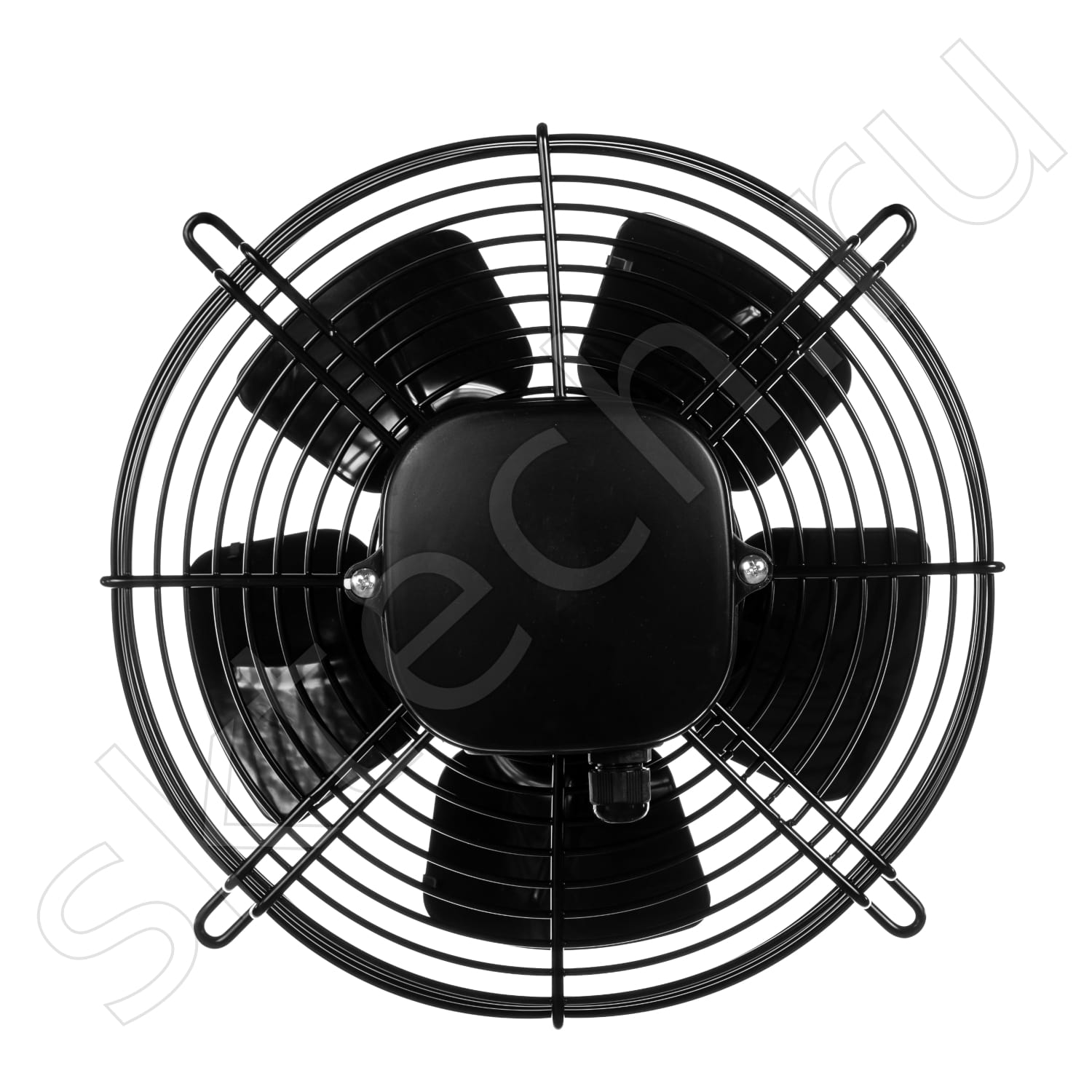

Axial fan YWF4D-250B-92/25-G
Manufacturer: Weiguang
Axial fan YWF4D-250B-92/25-G on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc.
— Diameter of fan is 250 mm;
— Input power - 55W;
— Voltage 380V/50Hz;
— Speed - 1400 rpm;
— AirFlow - 740 m3/h.
$36.49
Next delivery: 09/24/2024
 pcs

Main characteristics

Input power55 W
Voltage380 V
Frequency50 Hz
Noise level55 dBA
Operating current0.18 A
Air flow at 20 Pa740 m³/h
Speed1400 rpm
Insulation classF
Motor protectionThermocontact 150±5°C
Degree of protectionIP54
Ambient temperature-30...+60 °C
Operating typeS1
Bearingsball bearings

Dimensions

Dimensions of axial fan YWF4D-250B-92/25-G

Air flow curve

Air flow curve of axial fan YWF4D-250B-92/25-G

Wiring diagram

Wiring diagram of axial fan YWF4D-250B-92/25-G

Marking decoding YWF-4E-350-S-102/34-G:

  • YWF – external rotor fan series;
  • 4 – motor poles;
  • Е – motor type:
           E - single phase capacitor operation;
           D - three phases asynchronous operation;
  • 350 – the diameter of the fan blade;
  • S – air direction:
           S - sucking;
           B - blowing;
  • 102 – the diameter of the rotor;
  • 34 – the thickness of laminated core;
  • G – characteristics of the fan motor:
           G - grid;
           B - square frame.
