Axial fan with plate YWF-6D-800S-180/105A-B1

  • Model:
    011.014.305
  • Copy

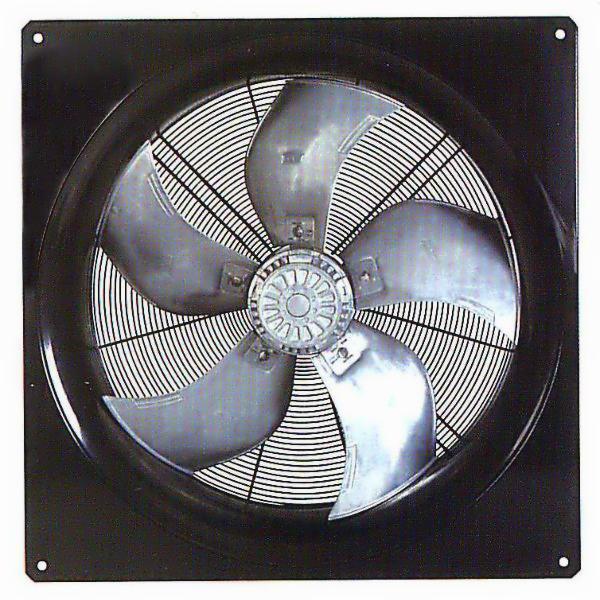

Axial fan with plate YWF-6D-800S-180/105A-B1
Manufacturer: Weiguang
Axial sucking fan with plate YYWF-6D-800S-180/105A-B1 with external rotor motor is suitable for ventilation systems, refrigerators, air conditioning equipment, etc. Material of blades-aluminium. Protection class IP54. Insulation class F.
− Diameter of fan 800 mm;
− Input power - 1900/1300W;
− Voltage 400V/50Hz;
− Speed - 890/700rpm;
− Max air flow - 22035/18930m3/h.

Specification

Rated voltage380VAC - Δ
380VAC - Y
Frequency50 Hz
Rated current3.45 A (Δ)
2.20 A (Y)
Input power1900 W (Δ)
1300 W (Y)
Speed890 rpm (Δ)
700 rpm (Y)
Air volume22035 m3/h (Δ)
18930 m3/h (Y)
Noise level74 dB(A) (Δ)
73 dB(A) (Y)
Ambient temperature-40°C…+65°C
Insulation classF
BearingsBall bearings
Motor protectionThermal overload (TOP) brought out
Direction of rotationClockwise, seen on motor

Dimensions

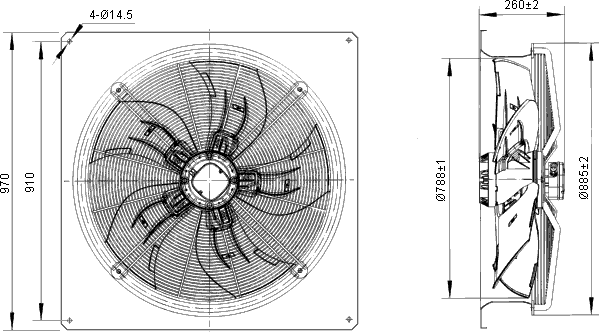

Dimensions of axial fan YWF-6D-800S-180/105A-B1

Аir flow characteristics

airflow curves of YWF-6D-800S-180/105A-B1
