PratiKa socket PKF32F723 32A 2P+E 220...250Vac

  • Model: 009.002.044
  • photo 3
  • photo 4

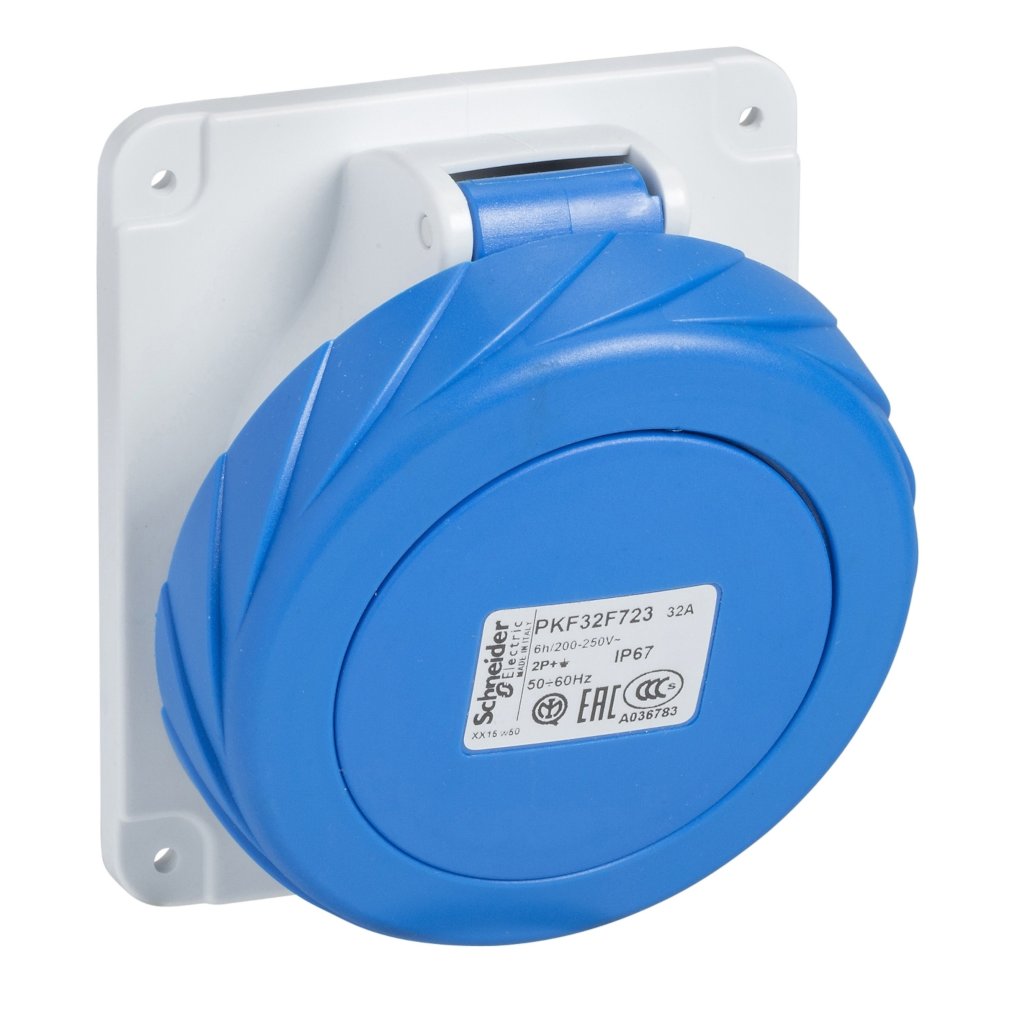

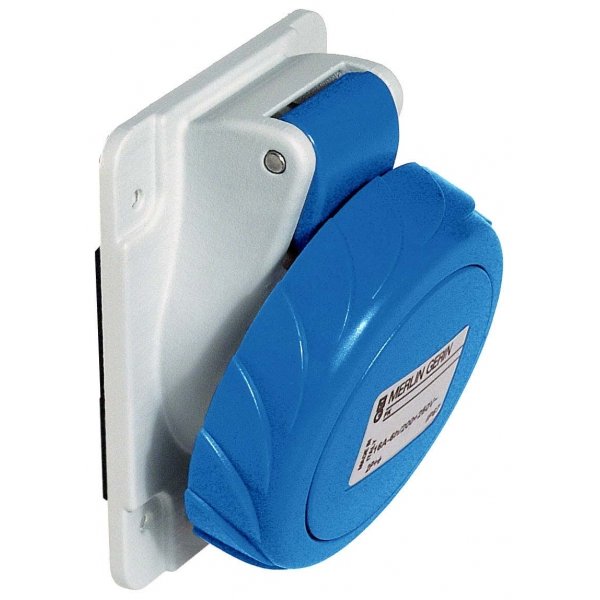

Socket PKF32F723 32A 2P+E IP67
Manufacturer: Schneider Electric
Barcode: 3303432033163
☎ Price by call

Main

rangePratiKa
product or component typeSocket
device short namePratiKa socket
plug, socket categoryLow voltage
poles description2P + E
network typeAC
outlet standardIndustrial

Complementary

mounting modePanel-mounted
plug, socket, control station shapeAngled
[In] rated current32 A
[Ue] rated operational voltage200...250 V
network frequency50/60 Hz
ground lug clockwise position6 h
plug, socket materialSelf-extinguishing engineering polymer housing
contacts materialBrass sleeves
connections - terminalsCaptive screws
cable cross section2.5...10 mm²
product weight0.236 kg
base dimension90 x 100 mm
height100 mm
width95 mm
depth118 mm
colourGrey ( RAL 7035 )
voltage colourBlue

Environment

standardsIEC 60309-1
IEC 60309-2
IP degree of protectionIP67 conforming to IEC 60529
IK degree of protectionIK08 conforming to EN 62262
fire resistance850 °C conforming to IEC 60695-2-1
relative humidity50 % ( 40 °C )
70 % ( 30 °C )
90 % ( 20 °C )
ambient air temperature for operation35 °C ( 86400 s )

Dimensions

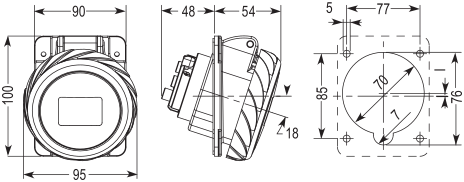

Dimensions of socket PKF32F723
