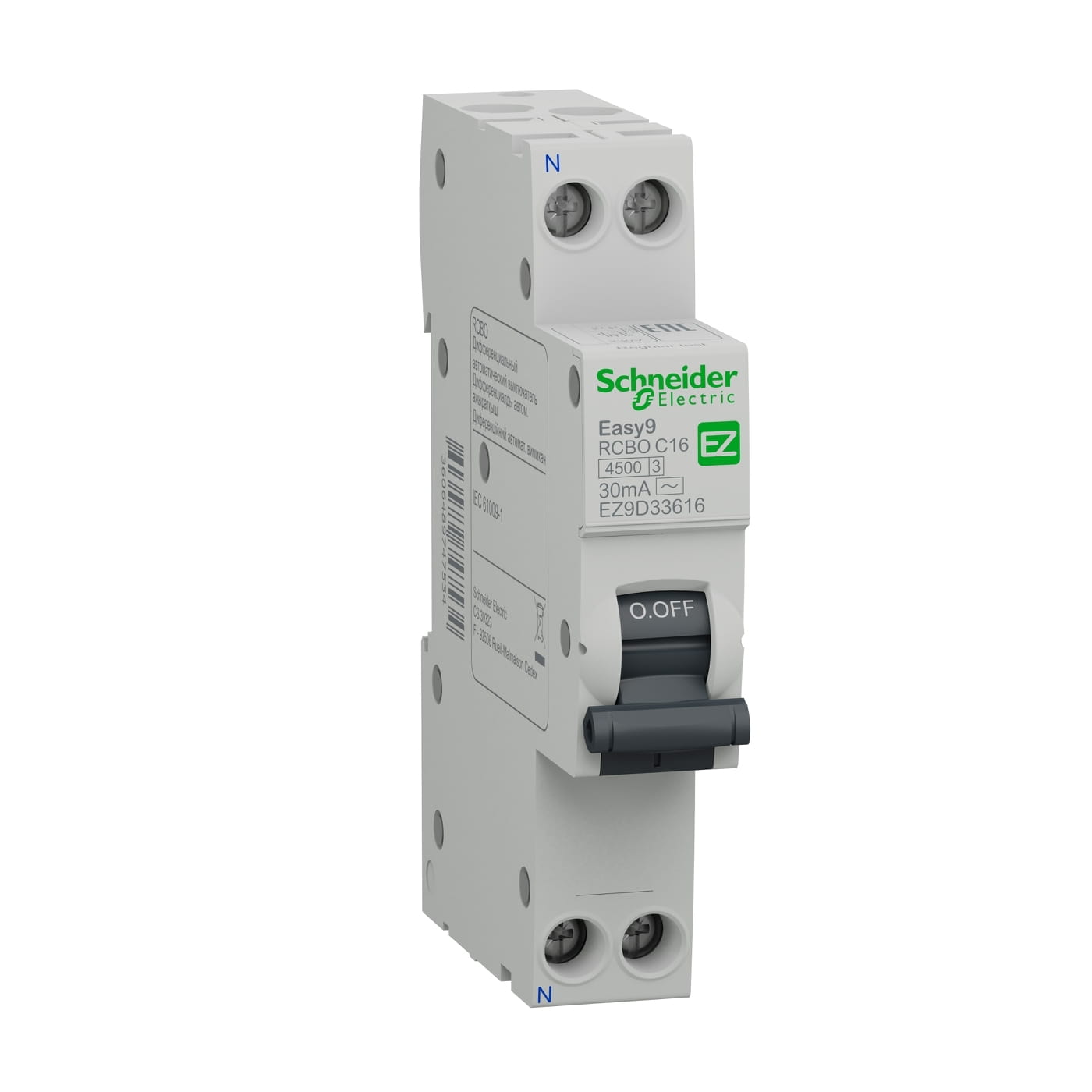

Residual current circuit breaker Easy9 EZ9D33616 1P+N 16A 30mA C AC 4.5kA 230V

Manufacturer: Schneider Electric

Differential automatic machine Easy9 EZ9D33616 is designed to perform the following functions:

protection of circuits against short-circuit currents
overload current protection
protection of people from electric shock (sensitivity 30 mA)
combine the functions of a circuit breaker and a residual current circuit breaker (RCCB)
protection provides both in the absence and in the presence of grounding (PE-conductor)
saves space in the dashboard, because take only 1 module 18 mm wide

Main characteristics:

Main

range	Easy9
product or component type	Residual current breaker with overcurrent protection (RCBO)
device short name	Easy9 RCBO
Poles	1P + N
neutral position	Left
[In] rated current	16 A
network type	AC
trip unit technology	Thermal-magnetic
curve code	C
earth-leakage sensitivity	30 mA
earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type AC
breaking capacity	4500 A Icn at 230 V AC 50/60 Hz

device application	Distribution
device location in system	Outgoer
network frequency	50/60 Hz
[Ue] rated operational voltage	230 V AC
magnetic tripping limit	5...10 x In
limitation class	3
[Ui] rated insulation voltage	400 V
[Uimp] rated impulse withstand voltage	4 kV
contact position indicator	Yes
control type	Toggle
mounting support	DIN rail
9 mm pitches	2
height	93 mm
width	18 mm
depth	69.5 mm
net weight	0.136 kg
mechanical durability	10000 cycles
electrical durability	4000 cycles
connections - terminals	Tunnel type terminal (upstream) 1…16 mm² rigid or flexible Tunnel type terminal (downstream) 1…10 mm² rigid or flexible
tightening torque	2 N.m top or bottom
earth-leakage protection	Integrated

standards	IEC 61009-1
IP degree of protection	IP20 IP40 (modular enclosure)
tropicalisation	2 conforming to IEC 60068-2-30
relative humidity	95 % at 55 °C
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…85 °C
