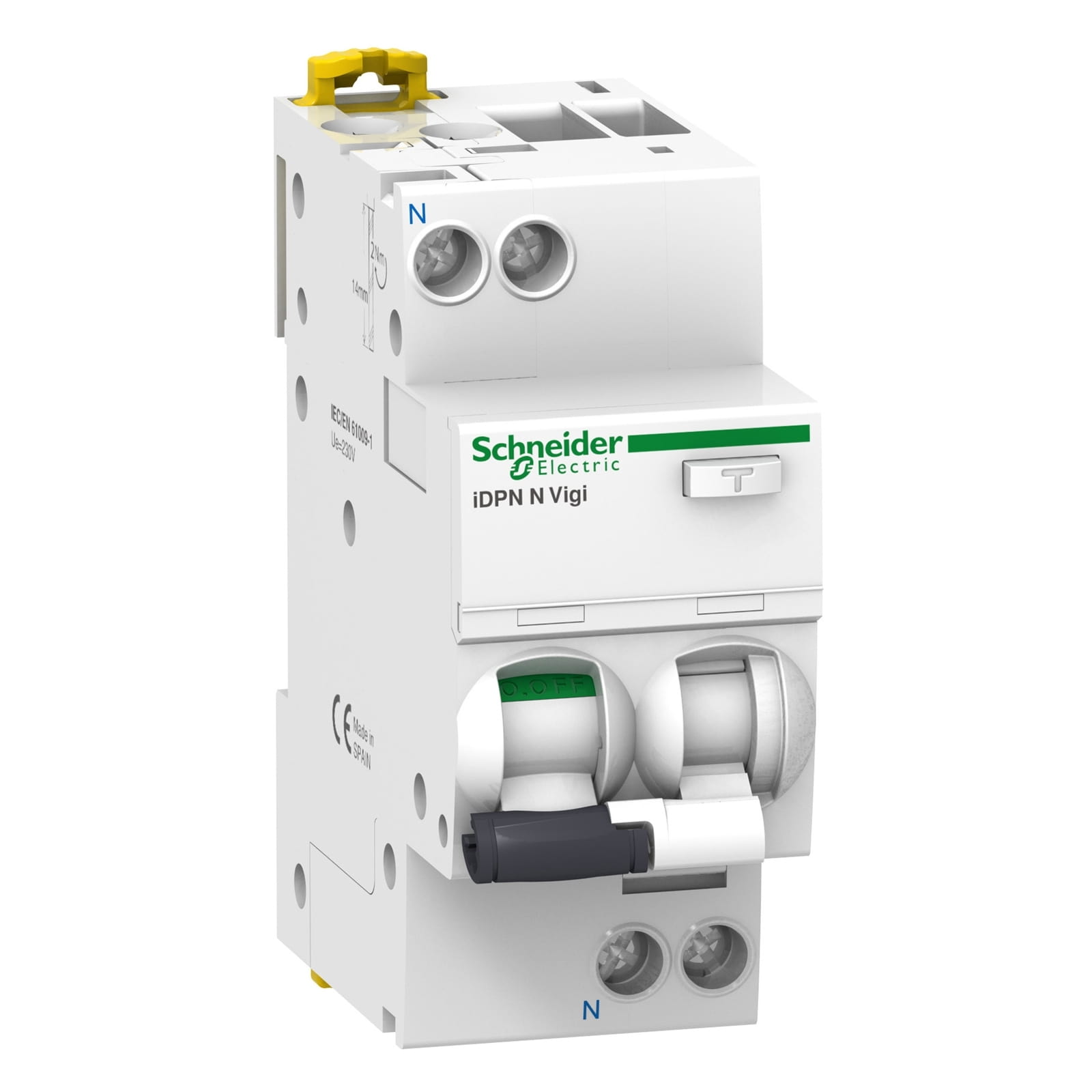

RCCB A9D31616 iDPN N Vigi 1P+N 16A 30mA AC type

  • Model: 003.011.258
Residual current circuit breaker A9D31616 iDPN N Vigi (AC type)
Manufacturer: Schneider Electric
Barcode: 3606480471995
The iDPN N Vigi series residual current circuit breakers provide:
− protection of persons against electric shock by direct contact (≤30 mA).
☎ Price by call

Main

rangeActi 9
product nameActi 9 iDPN Vigi
product or component typeResidual current breaker with overcurrent protection (RCBO)
device short nameIDPN N Vigi
device applicationDistribution
poles description1P + N
number of protected poles1
neutral positionLeft
[In] rated current16 A
network typeAC
trip unit technologyThermal-magnetic
curve codeC
earth-leakage sensitivity30 mA
earth-leakage protection time delayInstantaneous
earth-leakage protection classType AC
breaking capacity6000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
suitability for isolationYes conforming to EN/IEC 60947-2

Complementary

device location in systemOutgoer
network frequency50 Hz
[Ue] rated operational voltage220...240 V AC 50 Hz
magnetic tripping limit5...10 x In
residual current tripping technologyVoltage independent
[Ics] rated service breaking capacity6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
rated breaking and making capacityIdm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
limitation class3 conforming to EN/IEC 61009-2-1
[Ui] rated insulation voltage400 V AC 50 Hz
[Uimp] rated impulse withstand voltage4 kV
contact position indicatorYes
control typeToggle
local signallingON, OFF, fault trip
mounting modeClip-on
mounting supportDIN rail
comb busbar and distribution block compatibilityTop or bottom: YES
9 mm pitches4
height85 mm
width36 mm
depth73 mm
net weight125 g
colourWhite
mechanical durability20000 cycles
electrical durability20000 cycles
locking options descriptionPadlocking device
connections - terminalsSingle terminal top or bottom 1…16 mm² rigid
Single terminal top or bottom 1…10 mm² flexible
Single terminal top or bottom 1…10 mm² flexible with ferrule
wire stripping length15 mm for top or bottom connection
tightening torque2 N.m top or bottom
earth-leakage protectionIntegrated

Environment

standardsEN/IEC 61009-2-1
product certificationsVDE
GOST
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
pollution degree3
overvoltage categoryIII conforming to IEC 60364
electromagnetic compatibility8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
tropicalisation2 conforming to IEC 60068-1
relative humidity95 % at 55 °C
ambient air temperature for operation-5…60 °C
ambient air temperature for storage-40…85 °C

Dimensions

Dimensions of residual current circuit breaker iDPN N Vigi series

Residual current devices iDPN N Vigi 6000

Type AC A Si
1P+N Curve B Sensitivity, In 30 mA 300 mA 10 mA 30 mA 100 mA 300 mA 30 mA 100 mA 300 mA
Residual current devices iDPN N Vigi 6000 4 A A9D55604 A9D68604 - A9D56604 A9D60604 A9D69604 - - -
6 A A9D55606 A9D68606 - A9D56606 A9D60606 A9D69606 - - -
10 A A9D55610 A9D68610 A9D08610 A9D56610 A9D60610 A9D69610 - - -
13 A - - - A9D56613 A9D60613 A9D69613 - - -
16 A A9D55616 A9D68616 A9D08616 A9D56616 A9D60616 A9D69616 - - -
20 A A9D55620 A9D68620 - A9D56620 A9D60620 A9D69620 - - -
25 A A9D55625 A9D68625 - A9D56625 A9D60625 A9D69625 - - -
32 A A9D55632 A9D68632 - A9D56632 A9D60632 A9D69632 - - -
40 A A9D55640 A9D68640 - A9D56640 A9D60640 A9D69640 - - -
1P+N Curve C Sensitivity, In 30 mA 300 mA 10 mA 30 mA 100 mA 300 mA 30 mA 100 mA 300 mA
Residual current devices iDPN N Vigi 6000 6 A A9D31606 A9D41606 - A9D32606 A9D52606 A9D42606 A9D33606 A9D53606 A9D43606
10 A A9D31610 A9D41610 A9D02610 A9D32610 A9D52610 A9D42610 A9D33610 A9D53610 A9D43610
13 A - - - A9D32613 A9D52613 A9D42613 A9D33613 A9D53613 A9D43613
16 A A9D31616 A9D41616 A9D02616 A9D32616 A9D52616 A9D42616 A9D33616 A9D53616 A9D43616
20 A A9D31620 A9D41620 - A9D32620 A9D52620 A9D42620 A9D33620 A9D53620 A9D43620
25 A A9D31625 A9D41625 - A9D32625 A9D52625 A9D42625 A9D33625 A9D53625 A9D43625
32 A A9D31632 A9D41632 - A9D32632 A9D52632 A9D42632 A9D33632 A9D53632 A9D43632
40 A A9D31640 A9D41640 - A9D32640 A9D52640 A9D42640 A9D33640 A9D53640 A9D43640
Voltage rating (Ue) 230 V AC
Operating frequency 50 Hz
Auxiliaries Module CA907000 and CA907002
Accessories Module CA907000 and CA907001, comb busbars LIN001
