Motor Circuit Breaker EasyPact GZ1E16

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model: 003.002.011

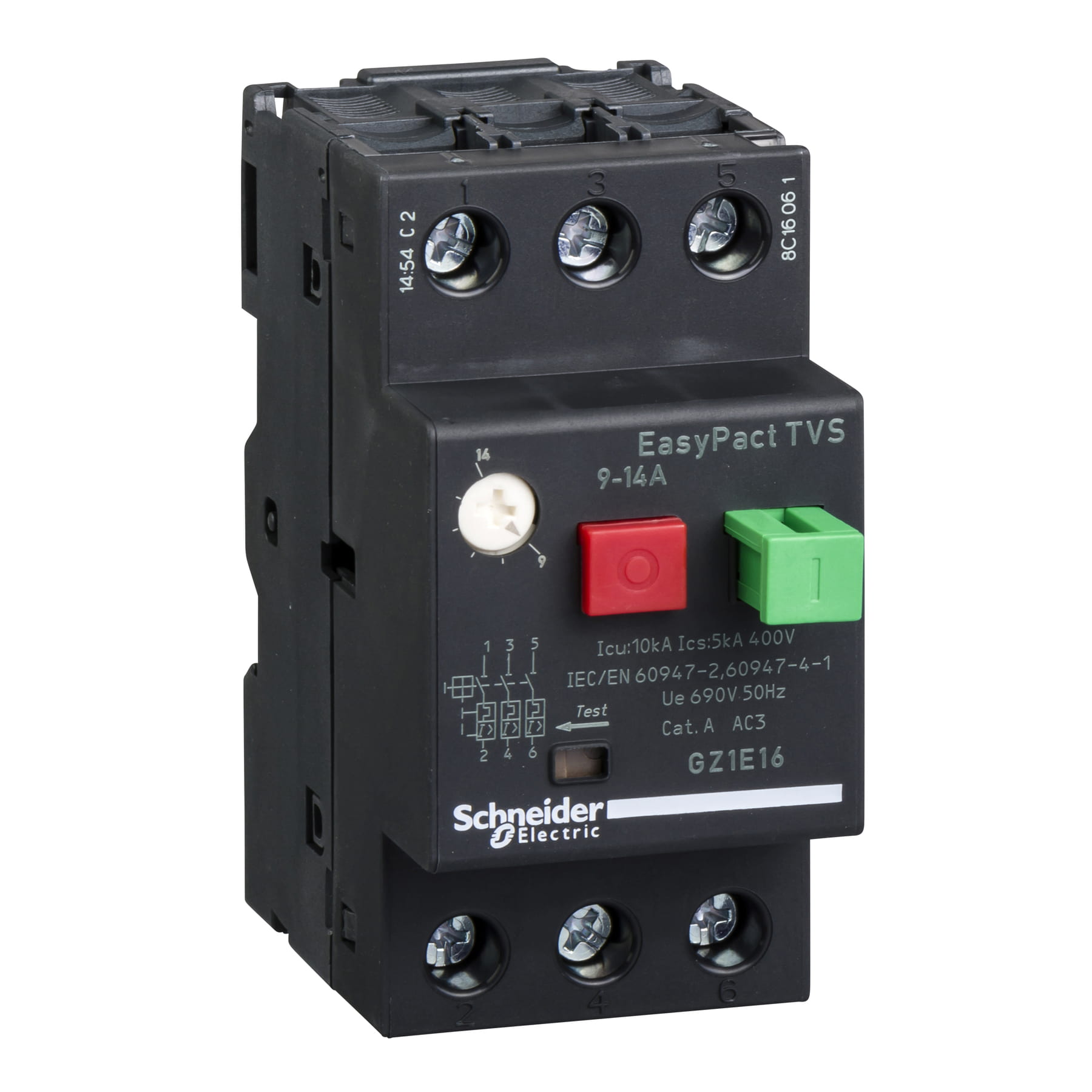

Motor Circuit Breaker GZ1E16

Manufacturer: Schneider Electric

Barcode: 3606480567872

☎ Price by call

Dimensions

Basic dimensions GZ1E20

X1: electrical clearance = 40 mm for U_e≤ 690V.

Scheme

Electrical scheme GZ1E20

Magnetic motor circuit breakers EasyPact TVS GZ1E

Reference	Standard power ratings of 3-phase motors 50/60 Hz in category AC-3					Setting range of thermal trips	Magnetic tripping current Id ± 20 %
	230 V	400 V	440 V	500 V	690 V	Setting range of thermal trips	Magnetic tripping current Id ± 20 %
	kW	kW	kW	kW	kW	A	A
GZ1E01	-	-	-	-	-	0.1...0.16	1.5
GZ1E02	-	-	-	-	-	0.16...0.25	2.4
GZ1E03	-	-	-	-	-	0.25...0.40	5
GZ1E04	-	-	-	-	0.37	0.40...0.63	8
GZ1E05	-	-	-	0.37	0.55	0.63...1	13
GZ1E06	-	0.37	0.55	0.75	1.1	1...1.6	22.5
GZ1E07	0.37	0.75	1.1	1.1	1.5	1.6...2.5	33.5
GZ1E08	0.75	1.5	1.5	2.2	3	2.5...4	51
GZ1E10	1.1	2.2	3	3.7	4	4...6.3	78
GZ1E14	2.2	4	4	5.5	7.5	6...10	138
GZ1E16	-	5.5	5.5	9	11	9...14	170
GZ1E20	4	7.5	9	10	15	13...18	223
GZ1E21	5.5	9	11	11	18.5	17...23	327
GZ1E22	5.5	11	11	15	22	20...25	327
GZ1E32	7.5	15	15	18.5	22	24...32	416

EasyPact TVS Catalog 2019 - Motor starters from 6 to 630A
[5.15 Mb]
