Model: 003.002.176

Manufacturer: Schneider Electric

Barcode: 3389110376166

GV2ME are three-pole thermal-magnetic circuit breakers specifically designed for the control and protection of motors, conforming to standards IEC 60947-2 and IEC 60947-4-1.
GV3 circuit breakers feature connection by BTR screws (hexagon socket head), tightened using a #4 Allen key. This type of connection uses the EverLink® system with creep compensation (Schneider Electric patent). This technique makes it possible to achieve accurate and durable tightening torque, in order to avois cable creep.
GV3 circuit breakers are also available with connection by lugs. This type of connection meets the requirements of certain Asian markets and is suitable for applications subject to strong vibration , such as railway transport.
Manual control by means of pushbutton.

Product no longer available
Changed to: Motor circuit breaker TeSys GV3P73

Main

range	TeSys
product name	TeSys GV3
product or component type	Circuit breaker
device short name	GV3ME
device application	Motor
trip unit technology	Thermal-magnetic

Complementary

poles description	3P
network type	AC
utilisation category	AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2
network frequency	50/60 Hz conforming to IEC 60947-4-1
fixing mode	35 mm symmetrical DIN rail: clipped Panel: screwed (with 2 x M4 screws)
operating position	Any position
motor power kW	37 kW at 400/415 V AC 50/60 Hz 55 kW at 690 V AC 50/60 Hz 45 kW at 500 V AC 50/60 Hz
breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 2 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 60 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
control type	Push-button
[In] rated current	80 A
thermal protection adjustment range	56…80 A
magnetic tripping current	1040 A
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current	80 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	IEC 60947-2 6 kV
power dissipation per pole	8 W
mechanical durability	30000 cycles
electrical durability	30000 cycles for AC-3 at 440 V
maximum operating rate	25 cyc/h
rated duty	Continuous conforming to IEC 60947-4-1
tightening torque	5 N.m on screw clamp terminals
phase failure sensitivity	Yes conforming to IEC 60947-4-1
height	120 mm
width	61.2 mm
depth	113 mm
product weight	0.7 kg

Environment

standards	EN/IEC 60947-2 EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1
product certifications	UL CSA LROS (Lloyds register of shipping)
protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
IK degree of protection	IK04
ambient air temperature for operation	-20…60 °C
ambient air temperature for storage	-40…80 °C
fire resistance	960 °C conforming to IEC 60695-2-1
operating altitude	3000 m

Dimension

Electrical clearance X1=40mm for U_e≤ 500V
and X1=50mm for U_e≤ 690V

Scheme

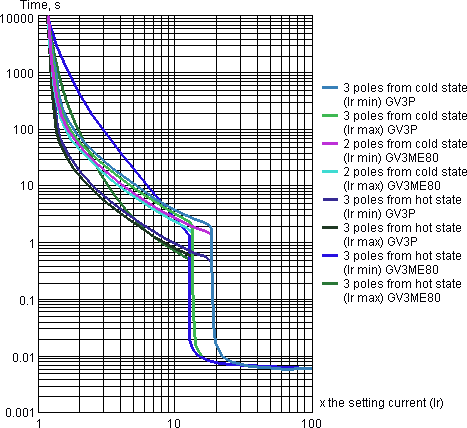

Thermal-magnetic tripping curves

Average operating times at 20°C related to multiples of the setting current
Tripping curves
