Model: 013.012.310

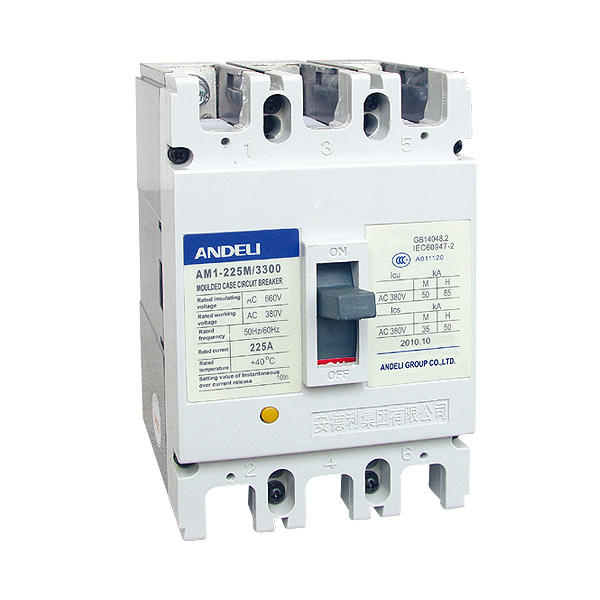

Moulded case circuit breaker AM1-225L/3P 125A

Manufacturer: Andeli

Moulded case circuit breaker AM1-225L is one of the products developed and manufactured by adopring international advanced technology. It has rated insulation voltage 800V and can be used in AC electrical circuits with frequency 50/60Hz and operational voltage up to 400V. Rated current 125A.
The product conforms to IEC 60947-2 standard.

☎ Price by call

Specification

Technical characteristics conform to IEC 60947-2
Number of poles	3
Current type	АС
Frequency	50/60Hz
Rated operational voltage U_e	400V
Rated insulation voltage U_i	800V
Max conventional rated thermal current I_th	125A
Rated current I_n	125A
Rated duty	continuous
Breaking capacity I_cu	35kA
Rated breaking current I_cs	22kA
Utilisation category	A
Trip element type	thermal-magnetic
Operation performance	7000 - unload 1000 - load
Short circuit breaking
Operating current of magnetic release	10I_n±20%
Circuit breaking due to overload (with inverse time delay)
Thermodynamic release at ambient temperature +40°C	≥ 2h at 1,05 I_n (cold state) < 2h at 1,3 I_n (heat state)

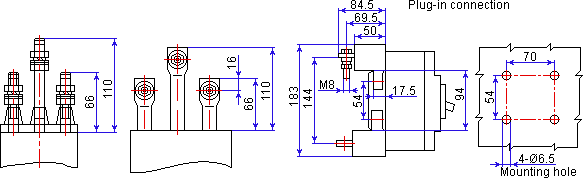

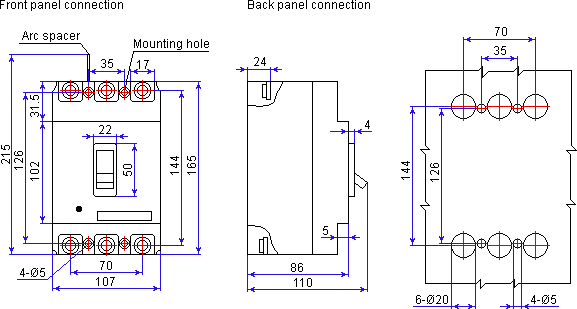

Outline and intsallation dimensions
