Fan heater Stego CS 02800.0-00

  • Model: 008.006.204
Fan heater Stego CS 02800.0-00
Manufacturer: Stego
Fan heater CS 02800.0-00 prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.The heater is connected using the internal terminal connectors. The small size of the CS 028 makes it ideal for use in enclosures where space is at a premium.
− Heating capacity - 150W.
− Rated voltage 230V AC.
− Mounting on a DIN rail.
$119.25
 pcs

Fan heater characteristics

Heating elementPTC resistor - temperature limiting
Heating capacity150W
Operating voltage230VAC 50/60Hz
Max inrush current12A
Recommended fuse10A
Axial fan air flow13.8 m³/h
Connection2-pole terminal, 2.5mm²
Housing materialplastic UL94-0, black
Mountingclip for 35 mm DIN rail
Operating/storage temperature-45°C...+70°C
Degree of protectionIP20
Protection classII (double insulated)
Dimensions75x65x92 mm
Weight0.3 kg

Dimensions

Heater dimensions CS 02800.0-00

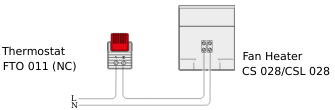

Connection diagram

Connection diagram

Nomenclature Heater CS/CSL Series 028 Stego

Model Operating voltage, V AC 50/60Hz Heating capacity1, W Inrush current max. Recommended pre-fuse T
(time-delay)		 Dimensions, mm Weight, kg
CS 02800.0-00 230 150 12 A 10 A 75x65x92 0,3
CSL 02811.0-00 230 250 9 A 10 A 90x85x113 0,5
CSL 02810.0-00 230 400 15 A 16 A 90x85x113 0,5
CS 02800.9-00 120 150 6 A 10 A 75x65x92 0,3
CS 02811.9-00 120 250 6 A 10 A 90x85x113 0,5
CS 02810.9-00 120 400 9 A 10 A 90x85x113 0,5
(1) at +20°C (+68°F) ambient temperature
