Model: 008.006.705

Manufacturer: Finder (Italy)

PTC heater 7H.51.8.230.0250 can be installed in different kinds of electrical equipment in order to maintain the inside temperature above required minimum and to avoid condensation. Due to self-regulation function PTC element provides reliable protection against overheating. For temperature regulation inside the cabinets or other equipment thermostat should be connected to the heater.
− Mounts on 35mm DIN rail (EN60715).
− Heating power 250W.
− Nominal voltage 230V AC.

$119.31

Specification

Heating specification
Heating power at 20°C ambient temperature	250 W
Heating element	PTC resistor, self-regulating heating system
Surface temperature (except upper protection grille)	≤ 30 °C
Air flow rate	30 m³/h
Fan - Life time at 25 °C	50 000 h
Housing	Plastic according to UL94 – V0, black
Supply specification
Nominal voltage (U_N)	230V AC (50/60 Hz)
Operating range	184...253V AC/DC
Rated current	1 A
Technical data
Radiator	aluminium profile
Electrical connection	screwless terminal
Mounting	clip for 35mm DIN rail
Fitting position	vertical
Ambient temperature	-40°С...+50°С
Degree of protection	IP20
Connection
Max. wire size (push-in terminals)	stranded cable: 2x1.5mm² / 2x16 AWG solid cable: 2x1.5mm² / 2x16 AWG
Screw torque	0.5 Nm

Dimensions

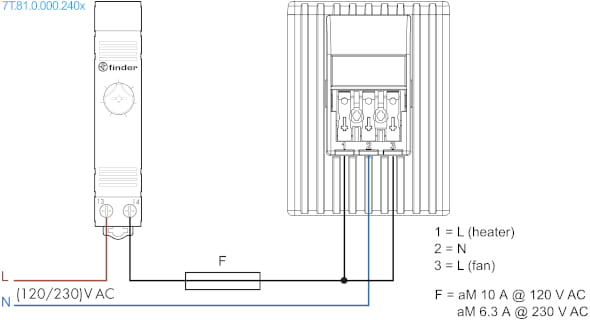

Wiring diagram

Marking and ordering codes for panel heaters Finder 7H series

7H			.	51			.	0			.	230			.	0				0			5				0




																														Heater power


																														0025 = 25 W
																														0050 = 50 W
																														0100 = 100 W
																														0150 = 150 W
																														0250 = 250 W
																														0400 = 400 W
																														Supply voltage


																														230 = 110...230V
																														120 = 120V only fan assisted version
																														230 = 230V only fan assisted version
																														Supply version


																														0 = AC (50/60 Hz)/DC
																														8 = AC (50/60 Hz) only fan assisted version
																														Type


																														51 = Panel heaters safe touch
																														Series

Range panel heaters Finder 7H series

Model	Heating power, W	Execution	Dimensions, mm	Nominal voltage
7H.51.0.230.0025	25	without fan	41 х 41 х 125	110...230V АС/DC
7H.51.0.230.0050	50	without fan	41 х 41 х 125	110...230V АС/DC
7H.51.0.230.0100	100	without fan	63 х 70 х 138	110...230V АС/DC
7H.51.0.230.0150	150	without fan	63 х 70 х 218	110...230V АС/DC
7H.51.8.120.0250	250	with fan	98.7 х 67 х 88.2	120V АС
7H.51.8.230.0250	250	with fan	98.7 х 67 х 88.2	230V АС
7H.51.8.120.0400	400	with fan	98.7 х 67 х 88.2	120V АС
7H.51.8.230.0400	400	with fan	98.7 х 67 х 88.2	230V АС
