Model: 008.006.203

Manufacturer: Essima

Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors The CS 028’s small size make it ideal for use in enclosures where space is at a premium

$52.68

Available: 249 pcs

Fan heater characteristics

Heating element	PTC
Heating capacity	400W
Operating voltage	230VAC 50/60Hz
Max inrush current	15A
Recommended fuse T	16A
Axial fan air flow	45 m³/h
Connection	2-pole terminal, 2.5mm²
Housing material	plastic UL94-0, black
Operating/storage temperature	-45°C...+70°C
Degree of protection	IP20
Dimensions	90x85x111 mm
Weight	0.5 kg

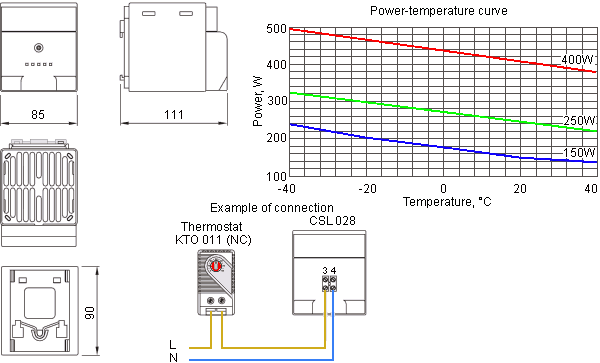

Dimensions and connection

CS 028 series heaters model range

Model	Operating voltage, VAC 50/60Hz	Heating capacity¹, W	Max inrush current, A	Dimensions, mm	Weight, kg
CS 02800.0-00	230	150	12	75x65x90	0.3
CSL 02811.0-00	230	250	9	90x85x111	0.5
CSL 02810.0-00	230	400	15	90x85x111	0.5

(1) at ambient temperature +20°C
