Model: 022.008.007

Manufacturer: Pfannenberg (Germany)

Stand-alone chiller CC 6401 with rated voltage 400VAC 50/60Hz and cooling capacity 3.5kW is designed for fluid cooling with water, water/glycol mixtures and low-viscosity oils (max viscosity 10 mm²/s at +40°C).
Steel housing with thick powder coating. Mounting on top of the enclosure is possible. Chiller is equipped with a programmable control module that allows small hystereses of the temperature of the cooling medium. Degree of protection IP54.
− Tank volume 30l;
− Connecions G3/4";
− Max power consumption 2.178kW.

☎ Price by call

Specification for the CC 6401 chiller

General characteristics
Article number	42630355300
Rated voltage ±10%	400/460VAC 50/60Hz
Cooling capacity (with pump)¹	W18/L32 (3.5 kW) W10/L32 (2.45 kW)
Flow rate (pump)²	22 l/min
Pressure (head) (pump)	3 bar
Ambient temperature range	+15°C...+45°C
Control range (refrigerant outlet temperature)	+10°C...+35°C (factory setting +18°C)
Target value tolerance	±2K
Refrigerant	R134a (1400 g)
Max power consumption	W18/L32 (2.178 kW)
Max current consumption	W18/L32 (3.6 A)
Starting current	W18/L32 (12.6 A)
Pre-fuse T	9A
Volumetric airflow (external)	2300 m³/h
Tank volume	30l
Connections (medium)	G3/4"
Noise level at 50Hz (EN ISO 3741)	< 62 dB(A)
Degree of protection (electrical equipment)	IP54
Colour	RAL 7035, different colours available on request
Accessories (article number)
Hydraulic bypass	48700956147
Flow switch	48700956149
Aluminium filter	45700956151
20% Propyleneglycol pre-mix (20l)	45783000123
20% Ethyleneglycol pre-mix (20l)	45783000125

¹ cooling capacity including power loss in the pump; refrigerant (water + glycol 20% ethylene) outlet temperature +18°C, ampient temperature +32°C.
² performance data based on 50Hz operation.

Dimensions

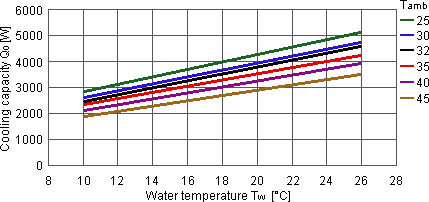

Cooling capacity performance curves

Range of CC series chillers

Model	Rated voltage, V	Article number	Cooling capacity (with pump) at refrigerant outlet temperature +18°C and ambient temperature +32°C, kW
CC 6101	230	42630115200	1.1
CC 6101	115	42630115100	1.3
СС 6201	230	42630175200	1.7
СС 6201	115	42630175100	1.92
CC 6301	230	42630245200	2.4
CC 6301	115	42630245100	2.68
CC 6401	400/460	42630355300	3.5
CC 6501	400/460	42630505300	5
CC 6601	400/460	42630655300	6.5
